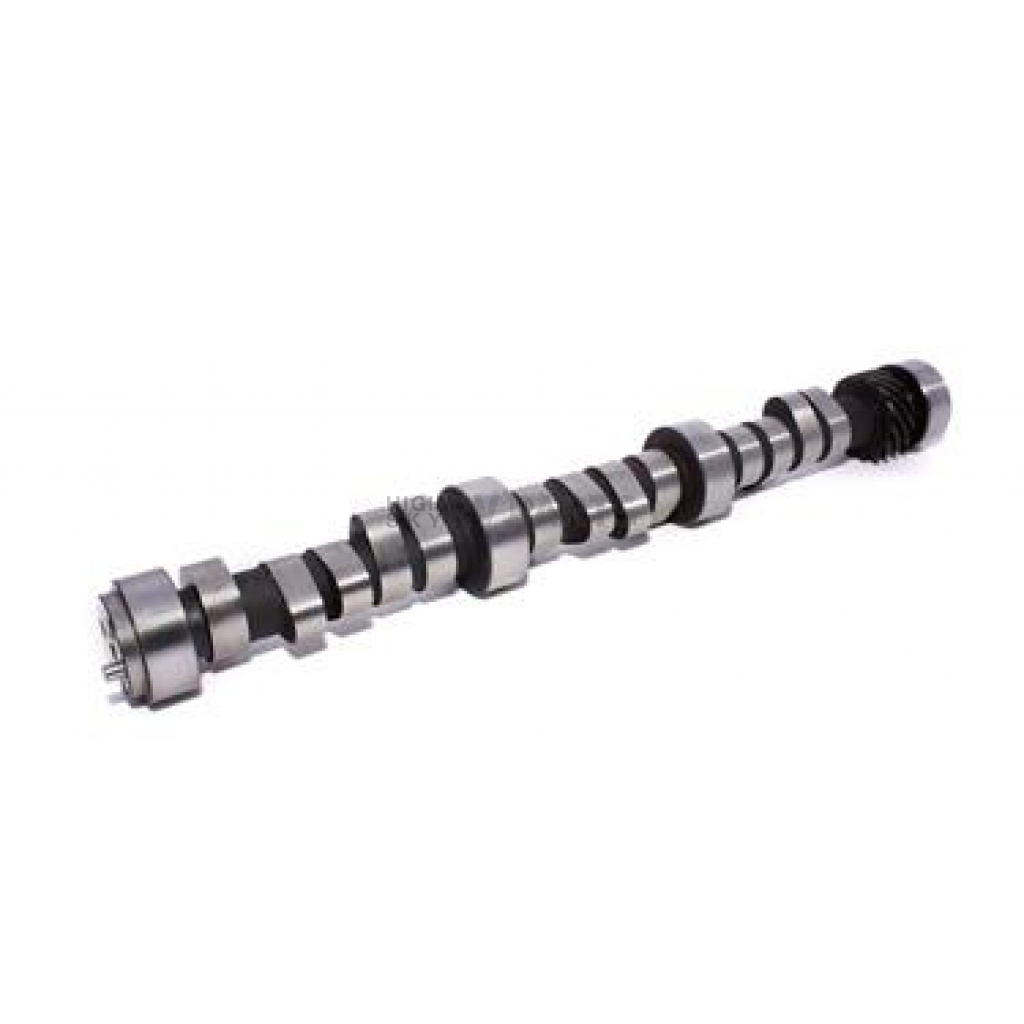

COMP Cams Camshaft 094128

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 09-412-8
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by May 30
Retail: $708.74
Price: $674.99
You Save: $33.75
Advertised Exhaust Duration (DEG)
266 Degree
Advertised Intake Duration (DEG)
260 Degree
Computer-Controlled Compatible
Yes
Engine Compatibility
Chevy 90 Degree V6 4.3L 262 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG)
210 Degree
Exhaust Valve Lift (IN)
1/2 Inch
Grind Number
260AHR
Intake Centerline Angle (DEG)
108 Degree
Intake Duration At 0.050 Inch Lift (DEG)
206 Degree
Intake Valve Lift (IN)
1/2 Inch
Lobe Separation Angle (DEG)
112 Degree
Share this page

COMP Cams Camshaft

Camshaft; Magnum; Chevy 90-Degree V-6 4.3L; Hydraulic Roller; 1200-4500 RPM Range; 206 Degree Intake Duration @ 0.050 Inch Lift; 210 Degree Exhaust Duration @ 0.050 Inch Lift; 0.500 Inch Intake Valve Lift; 0.500 Inch Exhaust Valve Lift; 112 Degree Lobe Separation

MPN: 094128

Magnum Camshafts are specifically designed for racing or high performance street applications by Engine builders looking for more power and that Pro Street sound. In addition, Engine idle characteristics will change significantly due to the increased duration and overlap specifications of the camshaft. Magnum cams are high performance components. Using a Magnum 280 Camshaft can net as much as 100 additional peak Engine Horsepower. Magnum 292 and 305 Camshafts can generate even more power but require piston to Valve clearance checks and the installation of a higher performing torque converter for automatic transmission equipped vehicles. Magnum Camshafts may work with new stock lifters, however, we recommend that you use COMP Cams® high performance lifters due to their higher quality and specifically designed bleed rate.
Engine Compatibility: Chevy 90 Degree V6 4.3L 262 Cubic Inch
Recommended Use: Mild Street Performance To Mild Race
Type: Hydraulic Roller
RPM - Low: 1200
RPM - High: 4500
Intake Duration At 0.050 Inch Lift (DEG): 206 Degree
Exhaust Duration At 0.050 Inch Lift (DEG): 210 Degree
Advertised Intake Duration (DEG): 260 Degree
Advertised Exhaust Duration (DEG): 266 Degree
Intake Valve Lift (IN): 1/2 Inch
Exhaust Valve Lift (IN): 1/2 Inch
Lobe Separation Angle (DEG): 112 Degree
Intake Centerline Angle (DEG): 108 Degree
Grind Number: 260AHR
Computer-Controlled Compatible: Yes

Features

  • Great High RPM Power
  • Easy On Valve Train Parts
  • Specifically Designed For Racing Or High Performance Street Applications By Engine Builders Looking For More Power And That Pro Street Sound
  • Using A Magnum 280 Camshaft Can Net As Much As 100 Additional Peak Engine Horsepower
  • Limited 1 Year Warranty
Specifications of COMP Cams Camshaft 094128
Advertised Exhaust Duration (DEG) 266 Degree
Advertised Intake Duration (DEG) 260 Degree
Computer-Controlled Compatible Yes
Engine Compatibility Chevy 90 Degree V6 4.3L 262 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG) 210 Degree
Exhaust Valve Lift (IN) 1/2 Inch
Grind Number 260AHR
Intake Centerline Angle (DEG) 108 Degree
Intake Duration At 0.050 Inch Lift (DEG) 206 Degree
Intake Valve Lift (IN) 1/2 Inch
Lobe Separation Angle (DEG) 112 Degree
Recommended Use Mild Street Performance To Mild Race
RPM - High 4500
RPM - Low 1200
Type Hydraulic Roller

1987 Chevrolet Astro
1988 Chevrolet Astro
1989 Chevrolet Astro
1990 Chevrolet Astro
1991 Chevrolet Astro
1992 Chevrolet Astro
1993 Chevrolet Astro
1994 Chevrolet Astro
1995 Chevrolet Astro
1996 Chevrolet Astro
1997 Chevrolet Astro

1995 Chevrolet Blazer
1996 Chevrolet Blazer
1997 Chevrolet Blazer

1988 Chevrolet C1500
1989 Chevrolet C1500
1990 Chevrolet C1500
1991 Chevrolet C1500
1992 Chevrolet C1500
1993 Chevrolet C1500
1994 Chevrolet C1500
1995 Chevrolet C1500
1996 Chevrolet C1500
1997 Chevrolet C1500

1988 Chevrolet C2500
1989 Chevrolet C2500
1990 Chevrolet C2500
1991 Chevrolet C2500
1992 Chevrolet C2500
1993 Chevrolet C2500
1994 Chevrolet C2500
1995 Chevrolet C2500

1987 Chevrolet Caprice
1988 Chevrolet Caprice
1989 Chevrolet Caprice
1990 Chevrolet Caprice

1992 Chevrolet Caprice
1993 Chevrolet Caprice

1987 Chevrolet El Camino

1996 Chevrolet Express 1500
1997 Chevrolet Express 1500

1996 Chevrolet Express 2500
1997 Chevrolet Express 2500

1987 Chevrolet G10
1988 Chevrolet G10
1989 Chevrolet G10
1990 Chevrolet G10
1991 Chevrolet G10
1992 Chevrolet G10
1993 Chevrolet G10
1994 Chevrolet G10
1995 Chevrolet G10

1987 Chevrolet G20
1988 Chevrolet G20
1989 Chevrolet G20
1990 Chevrolet G20
1991 Chevrolet G20
1992 Chevrolet G20
1993 Chevrolet G20
1994 Chevrolet G20
1995 Chevrolet G20

1987 Chevrolet G30
1988 Chevrolet G30
1989 Chevrolet G30
1990 Chevrolet G30
1991 Chevrolet G30
1992 Chevrolet G30
1993 Chevrolet G30
1994 Chevrolet G30
1995 Chevrolet G30
1996 Chevrolet G30

1988 Chevrolet K1500
1989 Chevrolet K1500
1990 Chevrolet K1500
1991 Chevrolet K1500
1992 Chevrolet K1500
1993 Chevrolet K1500
1994 Chevrolet K1500
1995 Chevrolet K1500
1996 Chevrolet K1500
1997 Chevrolet K1500

1988 Chevrolet K2500
1989 Chevrolet K2500
1990 Chevrolet K2500
1991 Chevrolet K2500
1992 Chevrolet K2500
1993 Chevrolet K2500
1994 Chevrolet K2500
1995 Chevrolet K2500

1987 Chevrolet Monte Carlo
1988 Chevrolet Monte Carlo

1990 Chevrolet P30
1991 Chevrolet P30
1992 Chevrolet P30
1993 Chevrolet P30
1994 Chevrolet P30
1995 Chevrolet P30
1996 Chevrolet P30
1997 Chevrolet P30

1987 Chevrolet R10

1987 Chevrolet R20

1988 Chevrolet S10
1989 Chevrolet S10
1990 Chevrolet S10
1991 Chevrolet S10
1992 Chevrolet S10
1993 Chevrolet S10
1994 Chevrolet S10
1995 Chevrolet S10
1996 Chevrolet S10
1997 Chevrolet S10

1988 Chevrolet S10 Blazer
1989 Chevrolet S10 Blazer
1990 Chevrolet S10 Blazer
1991 Chevrolet S10 Blazer
1992 Chevrolet S10 Blazer
1993 Chevrolet S10 Blazer
1994 Chevrolet S10 Blazer

1987 Chevrolet V10

1988 GMC C1500
1989 GMC C1500
1990 GMC C1500
1991 GMC C1500
1992 GMC C1500
1993 GMC C1500
1994 GMC C1500
1995 GMC C1500
1996 GMC C1500
1997 GMC C1500

1988 GMC C2500
1989 GMC C2500
1990 GMC C2500
1991 GMC C2500
1992 GMC C2500
1993 GMC C2500
1994 GMC C2500
1995 GMC C2500

1987 GMC Caballero

1987 GMC G1500
1988 GMC G1500
1989 GMC G1500
1990 GMC G1500
1991 GMC G1500
1992 GMC G1500
1993 GMC G1500
1994 GMC G1500
1995 GMC G1500

1987 GMC G2500
1988 GMC G2500
1989 GMC G2500
1990 GMC G2500
1991 GMC G2500
1992 GMC G2500
1993 GMC G2500
1994 GMC G2500
1995 GMC G2500

1987 GMC G3500
1988 GMC G3500
1989 GMC G3500
1990 GMC G3500
1991 GMC G3500
1992 GMC G3500
1993 GMC G3500
1994 GMC G3500
1995 GMC G3500

1992 GMC Jimmy
1993 GMC Jimmy
1994 GMC Jimmy
1995 GMC Jimmy
1996 GMC Jimmy
1997 GMC Jimmy

1988 GMC K1500
1989 GMC K1500
1990 GMC K1500
1991 GMC K1500
1992 GMC K1500
1993 GMC K1500
1994 GMC K1500
1995 GMC K1500
1996 GMC K1500
1997 GMC K1500

1988 GMC K2500
1989 GMC K2500
1990 GMC K2500
1991 GMC K2500
1992 GMC K2500
1993 GMC K2500
1994 GMC K2500
1995 GMC K2500

1990 GMC P3500
1991 GMC P3500
1992 GMC P3500
1993 GMC P3500
1994 GMC P3500
1995 GMC P3500
1996 GMC P3500
1997 GMC P3500

1987 GMC R1500

1987 GMC R2500

1988 GMC S15
1989 GMC S15
1990 GMC S15

1988 GMC S15 Jimmy
1989 GMC S15 Jimmy
1990 GMC S15 Jimmy
1991 GMC S15 Jimmy

1987 GMC Safari
1988 GMC Safari
1989 GMC Safari
1990 GMC Safari
1991 GMC Safari
1992 GMC Safari
1993 GMC Safari
1994 GMC Safari
1995 GMC Safari
1996 GMC Safari
1997 GMC Safari

1996 GMC Savana 1500
1997 GMC Savana 1500

1996 GMC Savana 2500
1997 GMC Savana 2500

1991 GMC Sonoma
1992 GMC Sonoma
1993 GMC Sonoma
1994 GMC Sonoma
1995 GMC Sonoma
1996 GMC Sonoma
1997 GMC Sonoma

1991 GMC Syclone

1992 GMC Typhoon
1993 GMC Typhoon

1987 GMC V1500

1997 Isuzu Hombre

1991 Oldsmobile Bravada
1992 Oldsmobile Bravada
1993 Oldsmobile Bravada
1994 Oldsmobile Bravada

1996 Oldsmobile Bravada
1997 Oldsmobile Bravada

1987 Pontiac Grand Prix
