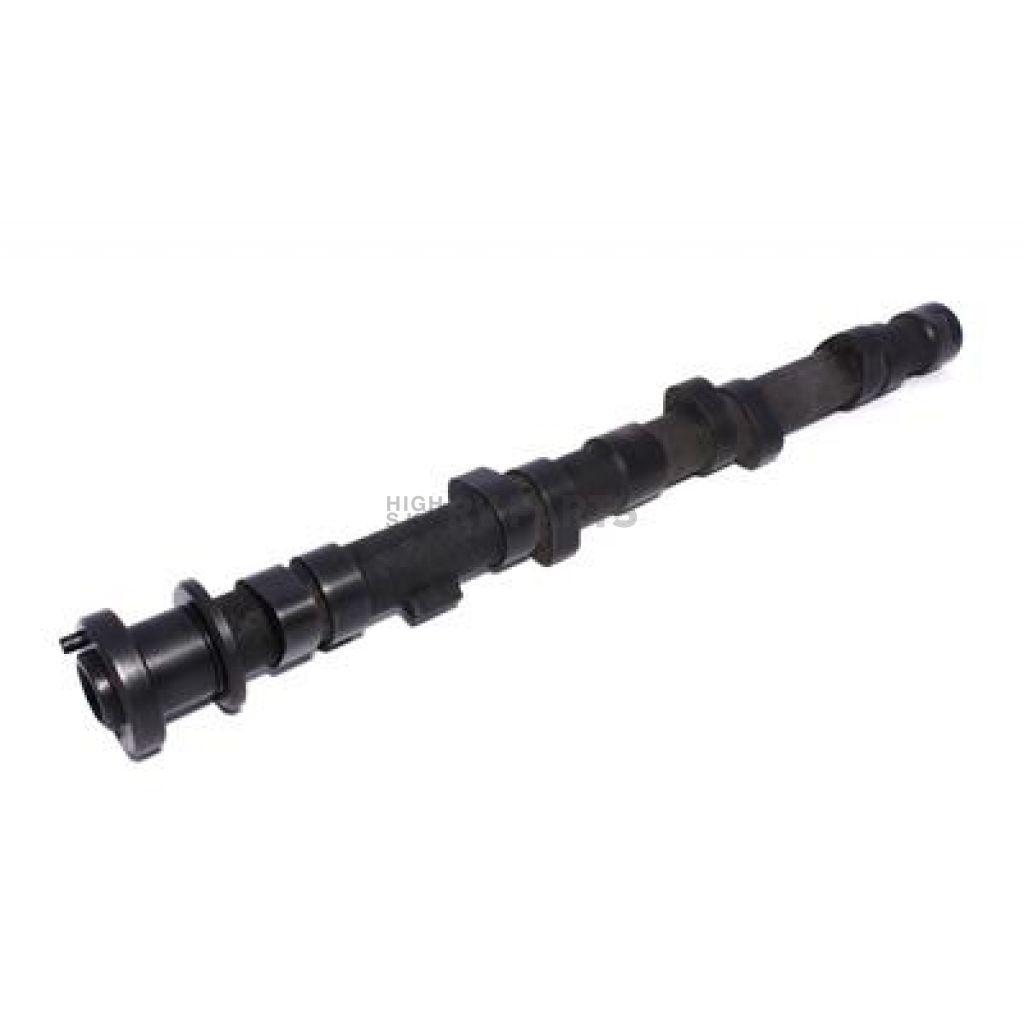

COMP Cams Camshaft 0871316

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 87-131-6
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by May 30
Retail: $505.04
Price: $480.99
You Save: $24.05
Advertised Exhaust Duration (DEG)
283 Degree
Advertised Intake Duration (DEG)
283 Degree
Computer-Controlled Compatible
No
Engine Compatibility
Toyota L4 2.2L-2.4L
Exhaust Duration At 0.050 Inch Lift (DEG)
242 Degree
Exhaust Valve Lift (IN)
0.455 Inch
Grind Number
280S
Intake Centerline Angle (DEG)
110 Degree
Intake Duration At 0.050 Inch Lift (DEG)
242 Degree
Intake Valve Lift (IN)
0.455 Inch
Lobe Separation Angle (DEG)
110 Degree
Share this page

COMP Cams Camshaft

Camshaft; Magnum; Toyota 2.2L-2.4L/20R & 22R; Solid Swinger Follower; 2000-6000 RPM Range; 242 Degree Intake Duration @ 0.050 Inch Lift; 242 Degree Exhaust Duration @ 0.050 Inch Lift; 0.455 Inch Intake Valve Lift; 0.455 Inch Exhaust Valve Lift; 110 Degree Lobe Separation

MPN: 0871316

Magnum Camshafts are specifically designed for racing or high performance street applications by Engine builders looking for more power and that Pro Street sound. In addition, Engine idle characteristics will change significantly due to the increased duration and overlap specifications of the camshaft. Magnum cams are high performance components. Using a Magnum 280 Camshaft can net as much as 100 additional peak Engine Horsepower. Magnum 292 and 305 Camshafts can generate even more power but require piston to Valve clearance checks and the installation of a higher performing torque converter for automatic transmission equipped vehicles. Magnum Camshafts may work with new stock lifters, however, we recommend that you use COMP Cams® high performance lifters due to their higher quality and specifically designed bleed rate.
Engine Compatibility: Toyota L4 2.2L-2.4L
Recommended Use: Street Performance
Type: Solid Swinger Follower
RPM - Low: 2000
RPM - High: 6000
Intake Duration At 0.050 Inch Lift (DEG): 242 Degree
Exhaust Duration At 0.050 Inch Lift (DEG): 242 Degree
Advertised Intake Duration (DEG): 283 Degree
Advertised Exhaust Duration (DEG): 283 Degree
Intake Valve Lift (IN): 0.455 Inch
Exhaust Valve Lift (IN): 0.455 Inch
Lobe Separation Angle (DEG): 110 Degree
Intake Centerline Angle (DEG): 110 Degree
Grind Number: 280S
Computer-Controlled Compatible: No

Features

  • Great High RPM Power
  • Easy On Valve Train Parts
  • Specifically Designed For Racing Or High Performance Street Applications By Engine Builders Looking For More Power And That Pro Street Sound
  • Using A Magnum 280 Camshaft Can Net As Much As 100 Additional Peak Engine Horsepower
  • Limited 1 Year Warranty
Specifications of COMP Cams Camshaft 0871316
Advertised Exhaust Duration (DEG) 283 Degree
Advertised Intake Duration (DEG) 283 Degree
Computer-Controlled Compatible No
Engine Compatibility Toyota L4 2.2L-2.4L
Exhaust Duration At 0.050 Inch Lift (DEG) 242 Degree
Exhaust Valve Lift (IN) 0.455 Inch
Grind Number 280S
Intake Centerline Angle (DEG) 110 Degree
Intake Duration At 0.050 Inch Lift (DEG) 242 Degree
Intake Valve Lift (IN) 0.455 Inch
Lobe Separation Angle (DEG) 110 Degree
Recommended Use Street Performance
RPM - High 6000
RPM - Low 2000
Type Solid Swinger Follower

1984 Toyota 4Runner

1975 Toyota Celica
1976 Toyota Celica
1977 Toyota Celica
1978 Toyota Celica
1979 Toyota Celica
1980 Toyota Celica
1981 Toyota Celica
1982 Toyota Celica
1983 Toyota Celica

1975 Toyota Corona
1976 Toyota Corona
1977 Toyota Corona
1978 Toyota Corona
1979 Toyota Corona
1980 Toyota Corona
1981 Toyota Corona
1982 Toyota Corona

1975 Toyota Pickup
1976 Toyota Pickup
1977 Toyota Pickup
1978 Toyota Pickup
1979 Toyota Pickup
1980 Toyota Pickup
1981 Toyota Pickup
1982 Toyota Pickup
1983 Toyota Pickup
1984 Toyota Pickup
1985 Toyota Pickup
1986 Toyota Pickup
1987 Toyota Pickup
1988 Toyota Pickup
1989 Toyota Pickup
