COMP Cams Camshaft 074648

Name: COMP Cams Camshaft 074648
Brand: COMP Cams
SKU: 07-464-8
Price: 517.99 USD
Availability: InStock

Authorized Dealer

Brand:

COMP Cams

0 reviews

Have a product question? Ask us
Part Number: 07-464-8
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by May 30

Retail: $543.89

Price: $517.99

You Save: $25.90

Advertised Exhaust Duration (DEG)

264 Degree

Advertised Intake Duration (DEG)

252 Degree

Computer-Controlled Compatible

Engine Compatibility

GMC Gen II 5.7L

Exhaust Duration At 0.050 Inch Lift (DEG)

212 Degree

Exhaust Valve Lift (IN)

0.546 Inch

Grind Number

252XFI HR13

Intake Centerline Angle (DEG)

109 Degree

Intake Duration At 0.050 Inch Lift (DEG)

202 Degree

Intake Valve Lift (IN)

0.55 Inch

Lobe Separation Angle (DEG)

113 Degree

Share this page

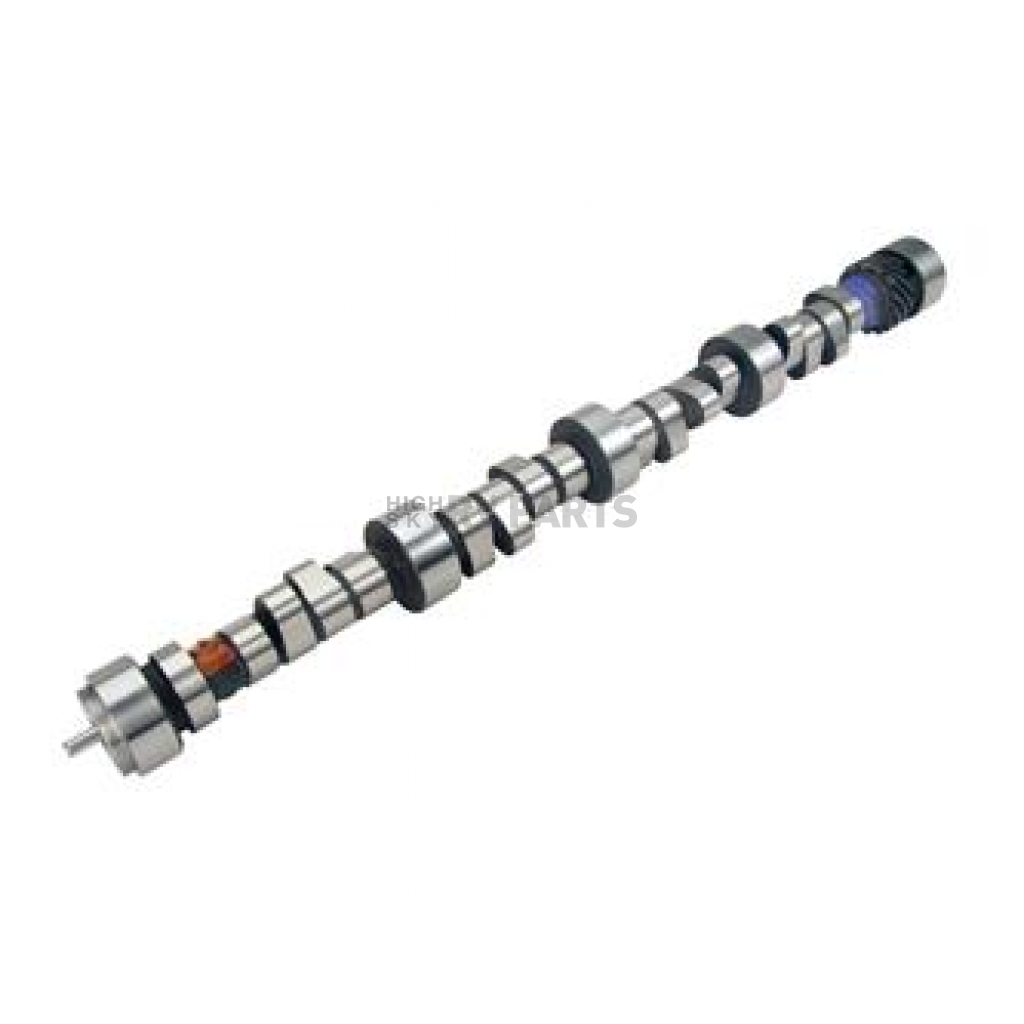

COMP Cams Camshaft

Camshaft; XFI ™; GM 5.7L/LT1 & LT4; Hydraulic Roller; 1000-5000 RPM Range; 202 Degree Intake Duration @ 0.050 Inch Lift; 212 Degree Exhaust Duration @ 0.050 Inch Lift; 0.550 Inch Intake Valve Lift; 0.546 Inch Exhaust Valve Lift; 113 Degree Lobe Separation

MPN: 074648

Xtreme Energy™ Cams are more responsive in carbureted applications. Designed for use with COMP Cams(R) Beehive™ Springs and roller rockers. Require other performance parts for best performance.

Engine Compatibility: GMC Gen II 5.7L

Recommended Use: Mild Street Performance To Mild Race

Type: Hydraulic Roller

RPM - Low: 1000

RPM - High: 5000

Intake Duration At 0.050 Inch Lift (DEG): 202 Degree

Exhaust Duration At 0.050 Inch Lift (DEG): 212 Degree

Advertised Intake Duration (DEG): 252 Degree

Advertised Exhaust Duration (DEG): 264 Degree

Intake Valve Lift (IN): 0.55 Inch

Exhaust Valve Lift (IN): 0.546 Inch

Lobe Separation Angle (DEG): 113 Degree

Intake Centerline Angle (DEG): 109 Degree

Grind Number: 252XFI HR13

Computer-Controlled Compatible: No

Features

Newest And Quickest Lobe Profiles In The Xtreme Family And Provide A Terrific Increase In Performance
Tuned For Use In EFI Applications Where Extra Air Flow Signal Through The Carburetor Is Not Required (Feature Wider Lobe Separation Without Loss Of Responsiveness)
Work Well With Aftermarket Cylinder Heads And Feature High Lift
Limited 1 Year Warranty

Specifications of COMP Cams Camshaft 074648
Advertised Exhaust Duration (DEG)	264 Degree
Advertised Intake Duration (DEG)	252 Degree
Computer-Controlled Compatible	No
Engine Compatibility	GMC Gen II 5.7L
Exhaust Duration At 0.050 Inch Lift (DEG)	212 Degree
Exhaust Valve Lift (IN)	0.546 Inch
Grind Number	252XFI HR13
Intake Centerline Angle (DEG)	109 Degree
Intake Duration At 0.050 Inch Lift (DEG)	202 Degree
Intake Valve Lift (IN)	0.55 Inch
Lobe Separation Angle (DEG)	113 Degree
Recommended Use	Mild Street Performance To Mild Race
RPM - High	5000
RPM - Low	1000
Type	Hydraulic Roller
