COMP Cams Camshaft 015258

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 01-525-8
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 16
Retail: $708.74
Price: $674.99
You Save: $33.75
Advertised Exhaust Duration (DEG)
258 Degree
Advertised Intake Duration (DEG)
246 Degree
Computer-Controlled Compatible
No
Engine Compatibility
Chevy Big Block V8 454-502 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG)
206 Degree
Exhaust Valve Lift (IN)
0.493 Inch
Grind Number
TPX246HR-16
Intake Centerline Angle (DEG)
116 Degree
Intake Duration At 0.050 Inch Lift (DEG)
194 Degree
Intake Valve Lift (IN)
1/2 Inch
Lobe Separation Angle (DEG)
116 Degree
Share this page

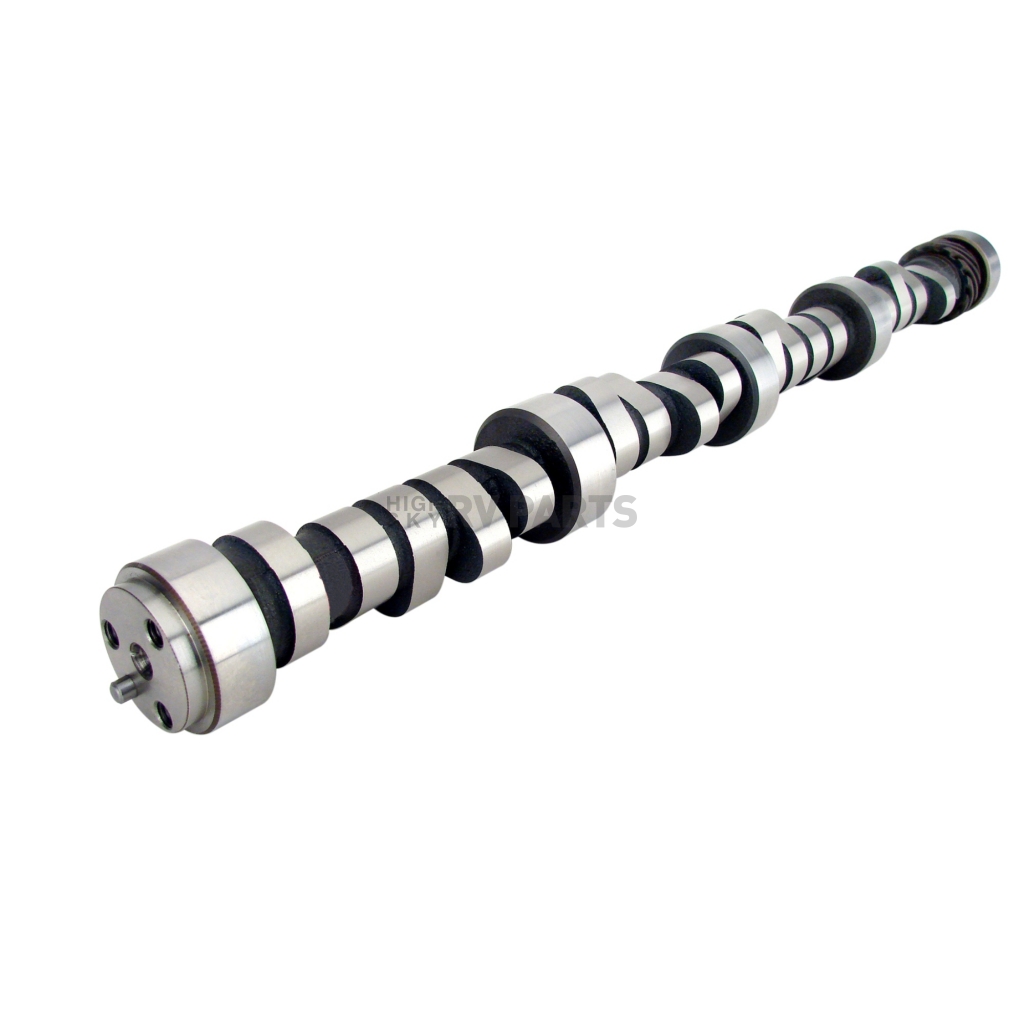

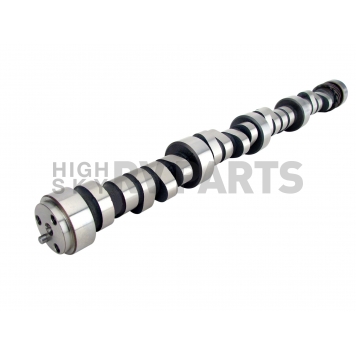

COMP Cams Camshaft

Camshaft; Tri-Power Xtreme ™; Chevy Big Block 7.4L-8.2L/454-502 Cubic Inch; Hydraulic Roller; 600-4600 RPM Range; 194 Degree Intake Duration @ 0.050 Inch Lift; 206 Degree Exhaust Duration @ 0.050 Inch Lift; 0.500 Inch Intake Valve Lift; 0.493 Inch Exhaust Valve Lift; 116 Degree Lobe Separation

MPN: 015258

Engine Compatibility: Chevy Big Block V8 454-502 Cubic Inch
Recommended Use: Mild Street Performance To Mild Race
Type: Hydraulic Roller
RPM - Low: 600
RPM - High: 4600
Intake Duration At 0.050 Inch Lift (DEG): 194 Degree
Exhaust Duration At 0.050 Inch Lift (DEG): 206 Degree
Advertised Intake Duration (DEG): 246 Degree
Advertised Exhaust Duration (DEG): 258 Degree
Intake Valve Lift (IN): 1/2 Inch
Exhaust Valve Lift (IN): 0.493 Inch
Lobe Separation Angle (DEG): 116 Degree
Intake Centerline Angle (DEG): 116 Degree
Grind Number: TPX246HR-16
Computer-Controlled Compatible: No

Features

  • Three Different Camshafts Offered For Each Engine Platform
  • Camshaft Designs Are Targeted To Improve Horsepower, Torque Or Fuel Efficiency
  • By Decreasing Pumping Losses, Efficiency And Performance Are Enhanced, Regardless Of Camshaft Selected
  • Limited 1 Year Warranty
Specifications of COMP Cams Camshaft 015258
Advertised Exhaust Duration (DEG) 258 Degree
Advertised Intake Duration (DEG) 246 Degree
Computer-Controlled Compatible No
Engine Compatibility Chevy Big Block V8 454-502 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG) 206 Degree
Exhaust Valve Lift (IN) 0.493 Inch
Grind Number TPX246HR-16
Intake Centerline Angle (DEG) 116 Degree
Intake Duration At 0.050 Inch Lift (DEG) 194 Degree
Intake Valve Lift (IN) 1/2 Inch
Lobe Separation Angle (DEG) 116 Degree
Recommended Use Mild Street Performance To Mild Race
RPM - High 4600
RPM - Low 600
Type Hydraulic Roller

1900 Chevrolet Big Block 1996-2000 Gen VI

1996 Chevrolet C2500
1997 Chevrolet C2500
1998 Chevrolet C2500
1999 Chevrolet C2500

1996 Chevrolet C2500 Suburban
1997 Chevrolet C2500 Suburban
1998 Chevrolet C2500 Suburban
1999 Chevrolet C2500 Suburban

1996 Chevrolet C3500
1997 Chevrolet C3500
1998 Chevrolet C3500
1999 Chevrolet C3500

1996 Chevrolet Express 3500
1997 Chevrolet Express 3500
1998 Chevrolet Express 3500
1999 Chevrolet Express 3500

1996 Chevrolet G30

1996 Chevrolet K2500
1997 Chevrolet K2500
1998 Chevrolet K2500
1999 Chevrolet K2500

1996 Chevrolet K2500 Suburban
1997 Chevrolet K2500 Suburban
1998 Chevrolet K2500 Suburban
1999 Chevrolet K2500 Suburban

1996 Chevrolet K3500
1997 Chevrolet K3500
1998 Chevrolet K3500
1999 Chevrolet K3500

1996 Chevrolet P30
1997 Chevrolet P30
1998 Chevrolet P30
1999 Chevrolet P30

1996 GMC C2500
1997 GMC C2500
1998 GMC C2500
1999 GMC C2500

1996 GMC C2500 Suburban
1997 GMC C2500 Suburban
1998 GMC C2500 Suburban
1999 GMC C2500 Suburban

1996 GMC C3500
1997 GMC C3500
1998 GMC C3500
1999 GMC C3500

1996 GMC G3500

1996 GMC K2500
1997 GMC K2500
1998 GMC K2500
1999 GMC K2500

1996 GMC K2500 Suburban
1997 GMC K2500 Suburban
1998 GMC K2500 Suburban
1999 GMC K2500 Suburban

1996 GMC K3500
1997 GMC K3500
1998 GMC K3500
1999 GMC K3500

1996 GMC P3500
1997 GMC P3500

1996 GMC Savana 3500
1997 GMC Savana 3500
1998 GMC Savana 3500
1999 GMC Savana 3500
