MSD Ignition Ignition Control Module 7805

Authorized Dealer
Brand: MSD Ignition MSD Ignition
0 reviews
  • Have a product question? Ask us
  • Part Number: 7805
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by June 07
Retail: $2,549.39
Price: $2,427.99
You Save: $121.40
CD Voltage Output To Coil (V)
480 Volt
Circuitry
Analog
Color
Gold
Current Draw
36 Ampere At 12000 RPM
Data Acquisition
No
Includes Coil
No
Maximum Operating Voltage
18 Volt
Minimum Operating Voltage
12 Volt
Output
Capacitive Discharge
Recommended Use
Drag Racing
REV Limiter
Yes
Share this page

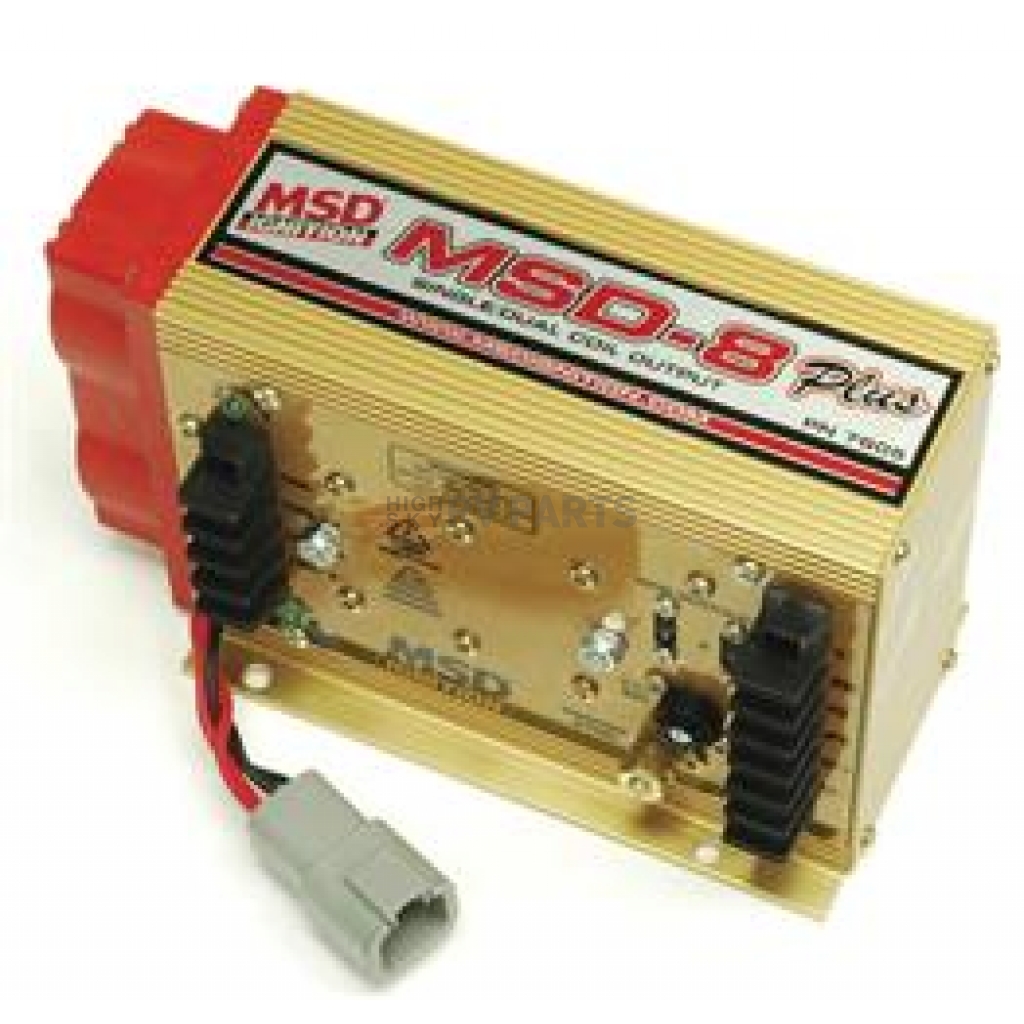

MSD Ignition Ignition Control Module

Ignition Control Module; 8 Plus Series; Drag Racing Use; Analog; 0-15000 RPM; 2 Step Rev Limiter; Multiple Spark Discharge; Without Boost Retard

MPN: 7805

The MSD 8 plus ignition produces the same extreme output of the original 8 series, yet is now in a smaller housing with improved efficiency and internal components. One distinct change is now a built-in 2 step rev control. Now you can switch between two rev limits without extra wiring or housings. For those that are looking for a dual fire MSD 8, the new 8 plus is all you need. Our engineers were able to deliver an ignition that is capable of firing two coils at once for those extreme racers using dual plug race setups.
Recommended Use: Drag Racing
Color: Gold
Circuitry: Analog
Spark Output (Millijoules): 315 To 345 Millijoules
Maximum Operating Voltage: 18 Volt
Minimum Operating Voltage: 12 Volt
Output: Capacitive Discharge
Current Draw: 36 Ampere At 12000 RPM
CD Voltage Output To Coil (V): 480 Volt
Timing Retard: Three Stage
REV Limiter: Yes
Data Acquisition: No
Includes Coil: No

Features

  • Built-In 2 Step Rev Control
  • Compatible With 4, 6 Or 8 Cylinder Engines
  • Works On Single Or Dual Coil Output Systems
  • Limited 1 Year Warranty
Specifications of MSD Ignition Ignition Control Module 7805
CD Voltage Output To Coil (V) 480 Volt
Circuitry Analog
Color Gold
Current Draw 36 Ampere At 12000 RPM
Data Acquisition No
Includes Coil No
Maximum Operating Voltage 18 Volt
Minimum Operating Voltage 12 Volt
Output Capacitive Discharge
Recommended Use Drag Racing
REV Limiter Yes
Spark Output (Millijoules) 315 To 345 Millijoules
Timing Retard Three Stage
