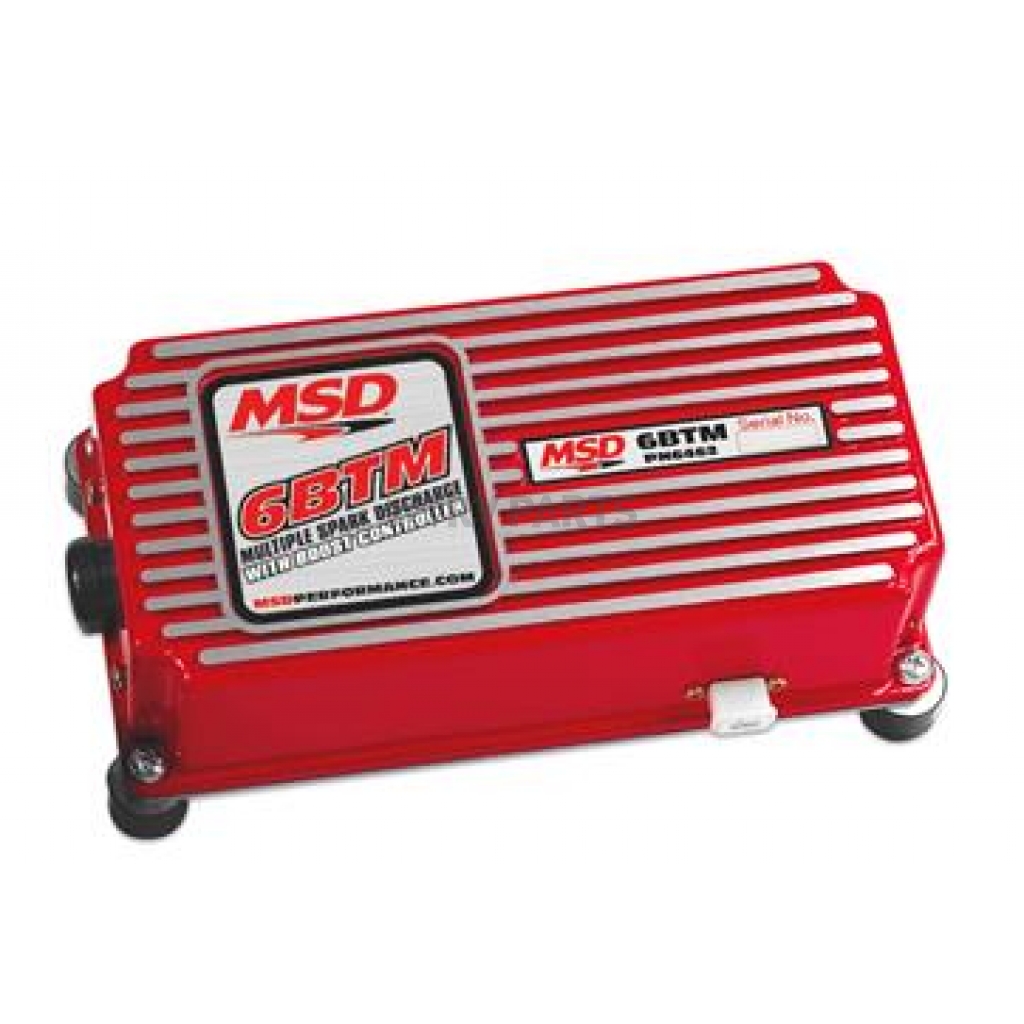

MSD Ignition Ignition Control Module
Ignition Control Module; 6 Series; Street/Drag Racing Use; Analog; 0-15000 RPM; With Adjustable Rev Limiter; Multiple Spark Discharge; With Boost Retard
MPN: 6462
The 6 BTM is ideal for engines with a turbo or supercharger. Not only will the engine benefit from MSD's full power CD sparks, but there is also an adjustable boost/timing retard circuit to prevent detonation. When your turbo or blower forces the air/fuel mixture into the engine, the cylinder pressure inside the combustion chamber increases. The result is a great increase in power but this can also lead to detonation that can result in severe engine damage. The 6 BTM lets you dial away detonation by retarding the timing in relation to the boost pressure. A dash mounted control knob lets you adjust the amount of timing retard. It can be adjusted from 0 Degrees per Pound of boost to 3 Degrees per Pound (up to 15 Degrees).The 6 BTM also shares the soft touch rev control of the 6AL ignition for over-rev protection. The BTM is supplied with rubber shock mounts and RPM modules for 3000, 6000, 7000 and 8000 RPM.
Recommended Use: Street/ Drag Racing
Color: Red
Circuitry: Analog
Spark Output (Millijoules): 105 To 115 Millijoules
Maximum Operating Voltage: 18 Volt
Minimum Operating Voltage: 12 Volt
Output: Capacitive Discharge
Current Draw: 1 Ampere Per 1000 RPM
CD Voltage Output To Coil (V): 450 To 480 Volt
Timing Retard: Single Stage
REV Limiter: Yes
Data Acquisition: No
Includes Coil: No
Features
- Multiple Spark, Capacitive Discharge Ignition Control
- Works On 12 To 18 Volt Electrical System
- Accepts Breaker Points, Amplifier And Magnetic Pickup Trigger Inputs
- Built-In Soft Touch Rev Control Is Adjustable With RPM Modules
- Programmable For 4, 6, Or 8 Cylinders By Cutting Red/Blue Wire Loops
- Supplied With Rubber Shock Mounts
- CARB EO Approved
- Limited 1 Year Warranty
Specifications of MSD Ignition Ignition Control Module 6462 |
CD Voltage Output To Coil (V) |
450 To 480 Volt |
Circuitry |
Analog |
Color |
Red |
Current Draw |
1 Ampere Per 1000 RPM |
Data Acquisition |
No |
Includes Coil |
No |
Maximum Operating Voltage |
18 Volt |
Minimum Operating Voltage |
12 Volt |
Output |
Capacitive Discharge |
Recommended Use |
Street/ Drag Racing |
REV Limiter |
Yes |
Spark Output (Millijoules) |
105 To 115 Millijoules |
Timing Retard |
Single Stage |
