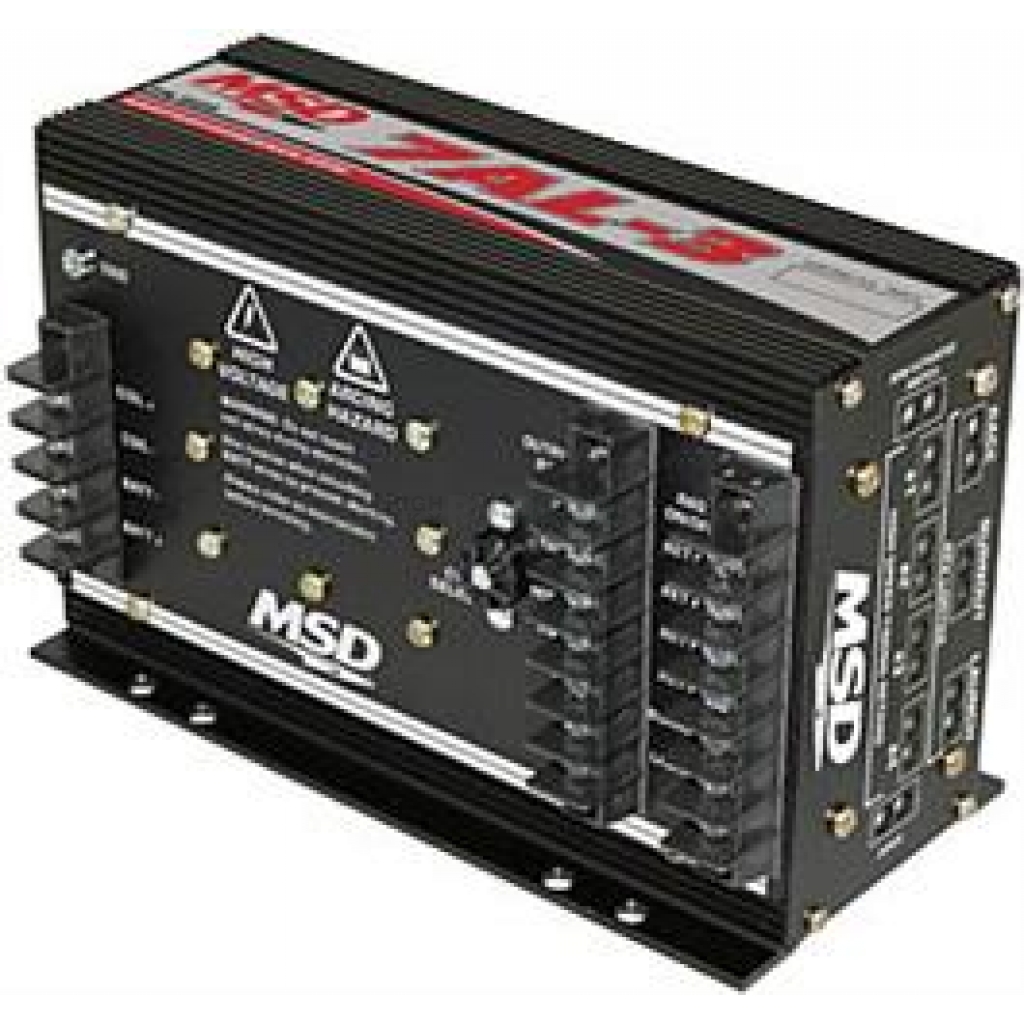

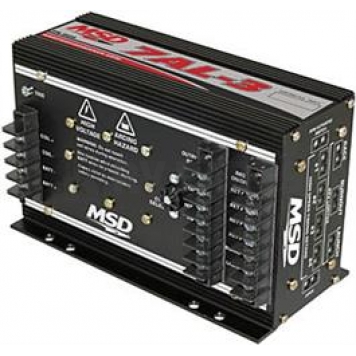

MSD Ignition Ignition Control Module 7330

Authorized Dealer
Brand: MSD Ignition MSD Ignition
0 reviews
  • Have a product question? Ask us
  • Part Number: 7330
  • Part Location: U.S.
  • Availability: 9 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by May 28
Retail: $1,150.79
Price: $1,095.99
You Save: $54.80
CD Voltage Output To Coil (V)
570 Volt
Circuitry
Analog
Color
Black
Current Draw
6 Amp At 6000 RPM
Data Acquisition
No
Includes Coil
No
Maximum Operating Voltage
18 Volt
Minimum Operating Voltage
12 Volt
Output
Capacitive Discharge
Recommended Use
Drag Racing
REV Limiter
Yes
Share this page

MSD Ignition Ignition Control Module

Ignition Control Module; 7AL-3 ™; Compatible With 4/6/8 Cylinder Engines Equipped With A Distributor; Drag Racing; Analog; 0 - 14000 RPM; With 3 Stage Rev Limiter; Multi Spark Discharge; With 4 Stage Multi Step Retard

MPN: 7330

The MSD 7AL3 Ignition Control has been a favorite of sportsman racers as well as racers that run multi-stage nitrous systems. The ignition combines high output spark energy for high compression race engines combined with the most popular drag racing accessories including a 3 Step rev limiter, 4 stage retards, a start retard and RPM Activated Switch. For 2013, MSD is relaunching the 7AL3 with upgraded features, a new look and updated internal components including surface mount circuitry. The new ignition is easy to spot with a black anodized housing and features a new adjustable start retard circuit. Racers will also be happy to learn that the ignition can now be used on 4, 6 or 8 cylinder engines.
Recommended Use: Drag Racing
Color: Black
Circuitry: Analog
Spark Output (Millijoules): 160 Millijoules
Maximum Operating Voltage: 18 Volt
Minimum Operating Voltage: 12 Volt
Output: Capacitive Discharge
Current Draw: 6 Amp At 6000 RPM
CD Voltage Output To Coil (V): 570 Volt
Timing Retard: Four Stage
REV Limiter: Yes
Data Acquisition: No
Includes Coil: No

Features

  • Fits In The Same Mounting Footprint Of The Original
  • Compatible On 4, 6 And 8 Cylinder Engines
  • Start Retard Is Adjustable With Plug-In Retard Modules
  • Retard Stages Require 12 Volt To Activate
  • Surface Mount Assembly Reduces Internal Components
  • Black Anodized Housing Stands Apart From The Original
  • Limited 1 Year Warranty
Specifications of MSD Ignition Ignition Control Module 7330
CD Voltage Output To Coil (V) 570 Volt
Circuitry Analog
Color Black
Current Draw 6 Amp At 6000 RPM
Data Acquisition No
Includes Coil No
Maximum Operating Voltage 18 Volt
Minimum Operating Voltage 12 Volt
Output Capacitive Discharge
Recommended Use Drag Racing
REV Limiter Yes
Spark Output (Millijoules) 160 Millijoules
Timing Retard Four Stage
