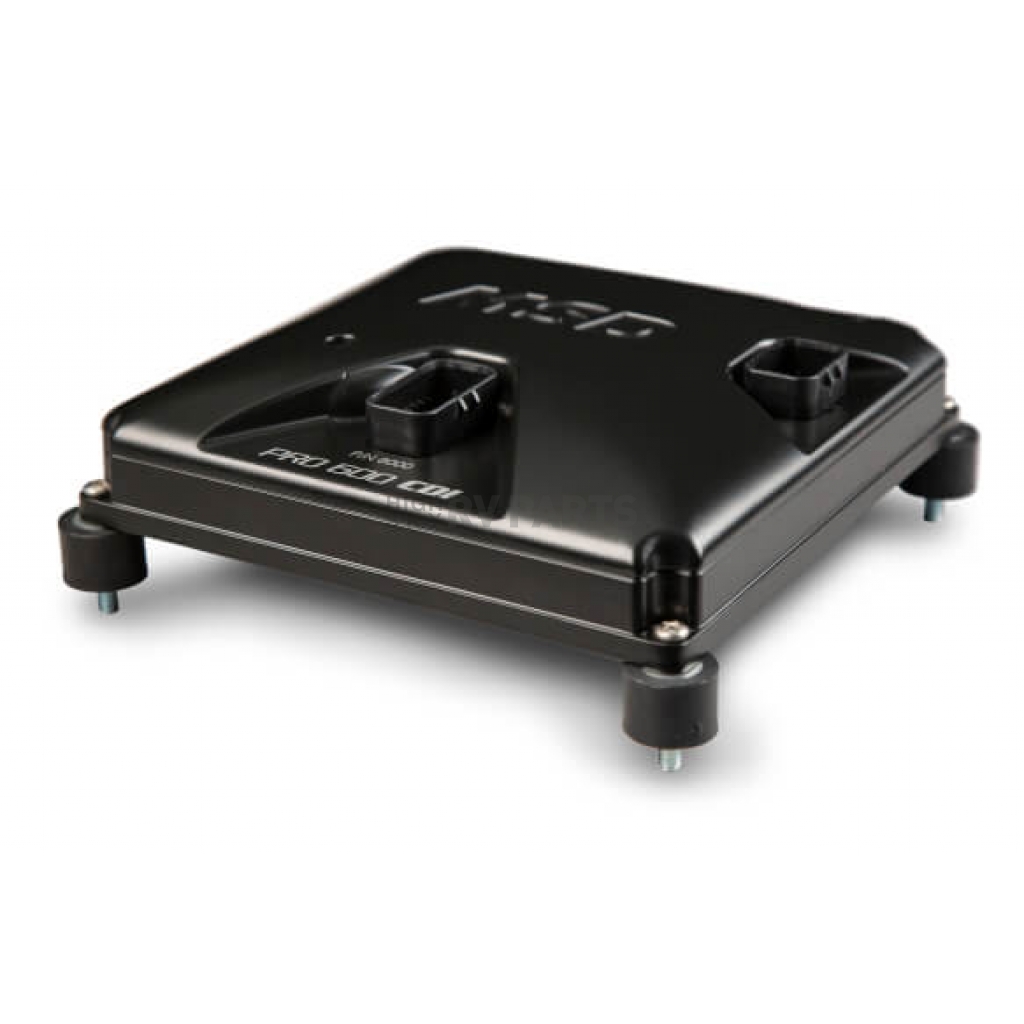

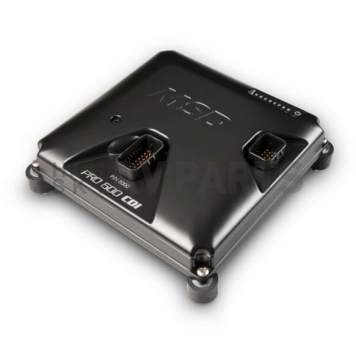

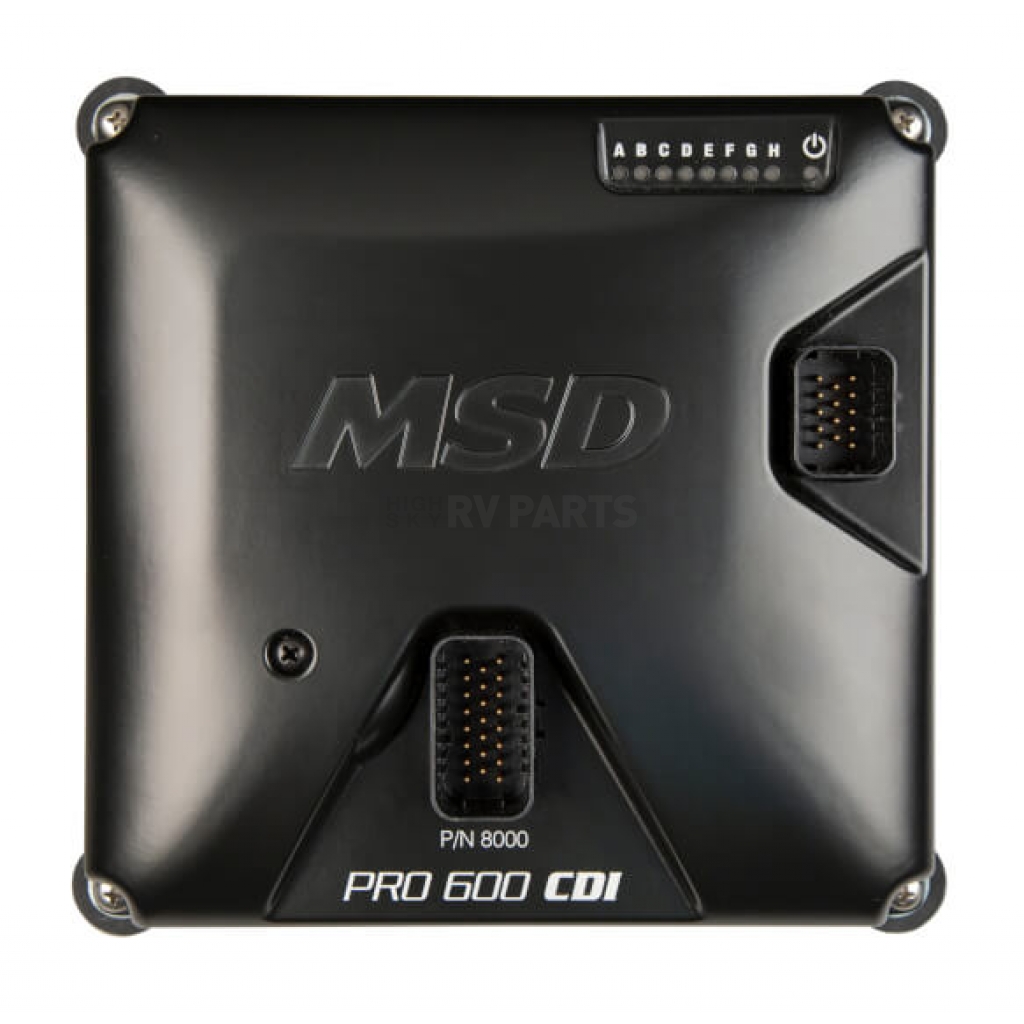

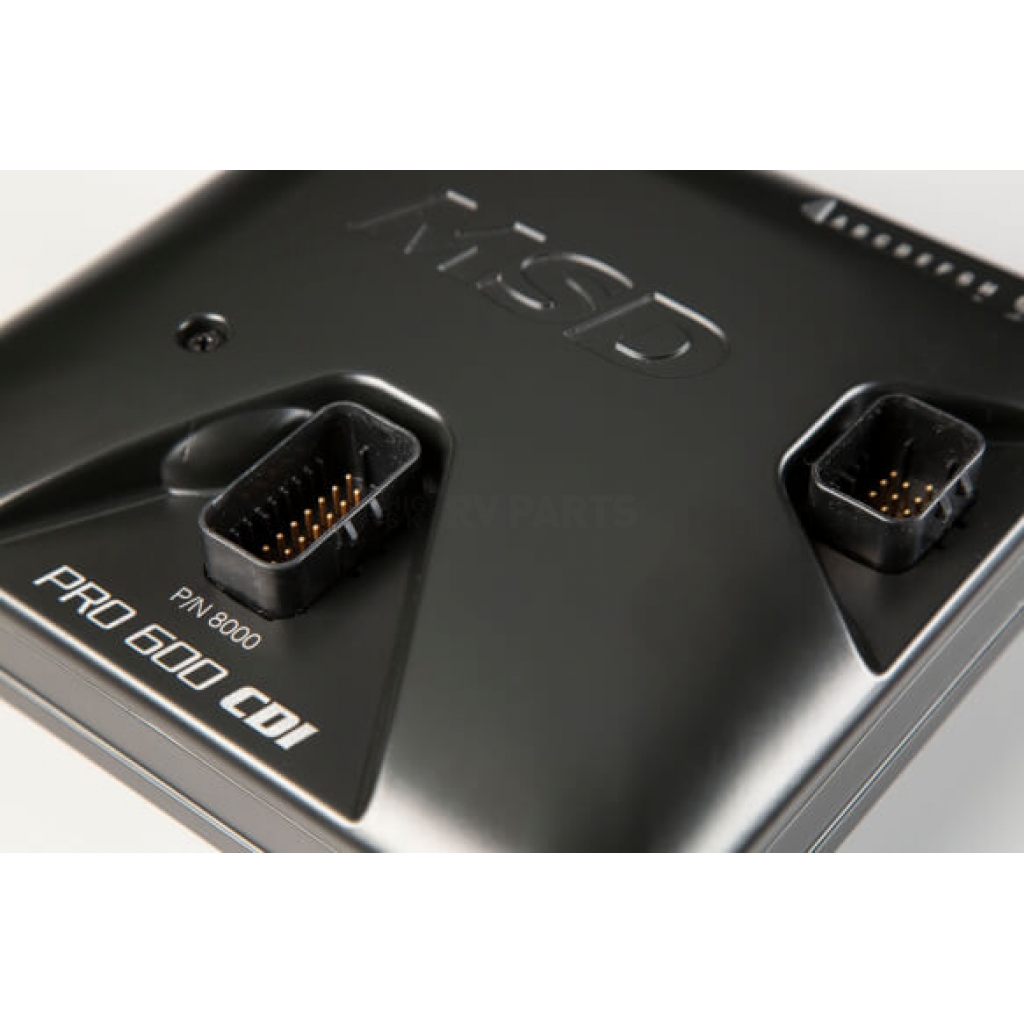

MSD Ignition Ignition Control Module 8000
MSD Ignition Ignition Control Module
Ignition Control Module; Pro 600 CDI; Drag Racing Use; Fits Most Coil Per Plug Engines Up To 8 Cylinders; 0-15000 RPM; Multiple Spark Discharge; Without Boost Retard
MPN: 8000
Features
- Eight Outputs Of Up To 680 MJ Of Energy
- Continuous 600 MJ Operation Without Risk Of Failure From Overheating
- High-Efficiency Alternating Current (AC) Power Delivery Means Less Voltage Draw From Your Battery Or Charging System
- Spark Duration Of Greater Than 300 Microseconds

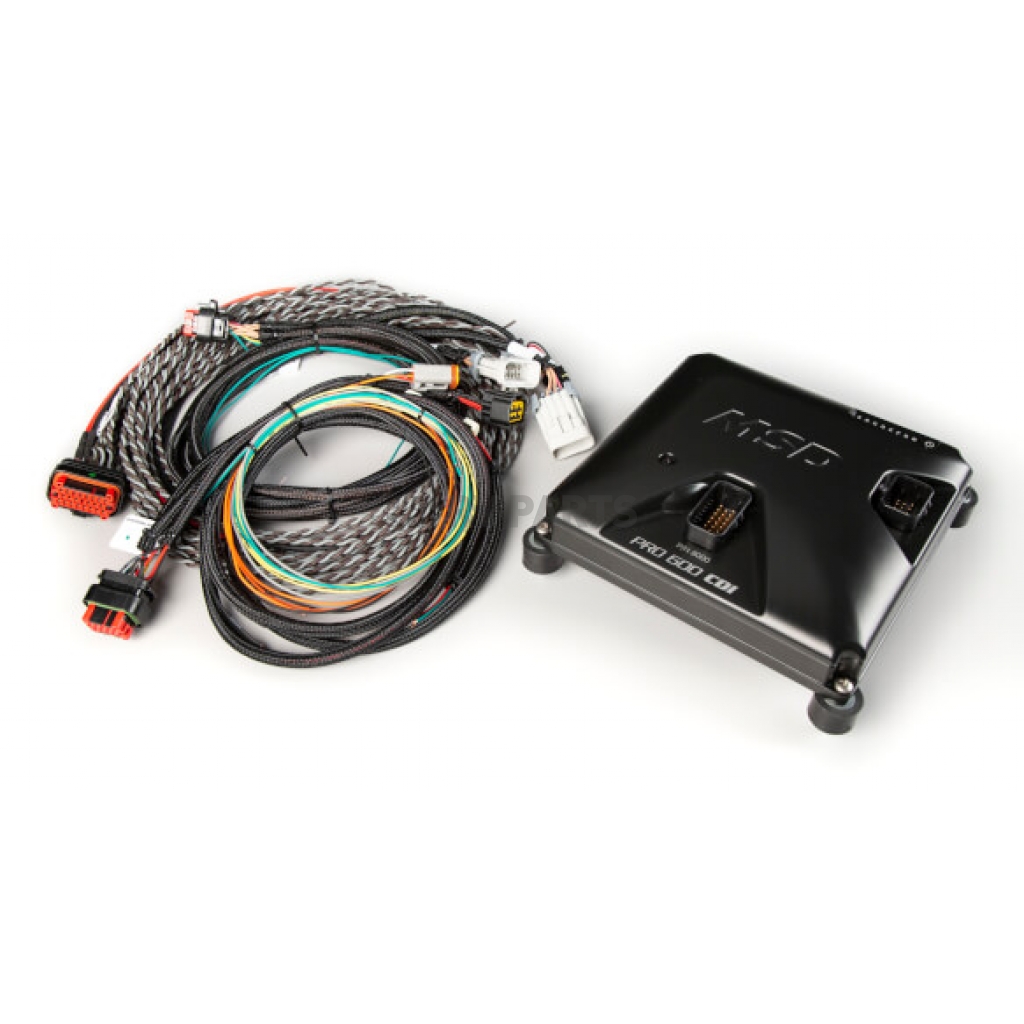

- Plugin Interface With MSD Power-Grid, Davis Profiler And OEM LS-Style Coil Harness
- Protection Against Shorted Or Open Coils, And Over Temperature

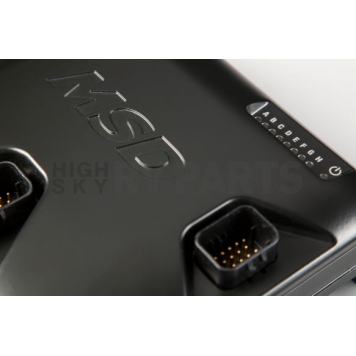

- Diagnostic LEDs Help Troubleshoot Issues Should They Arise
- On The Fly Power Output Selection Wire, Selectable Between Low Power And High Power Operation
- Over 50 Kilovolts Output Voltage When Used With MSD Suggested Coils
- Limited Lifetime Warranty
Specifications of MSD Ignition Ignition Control Module 8000 | |
CD Voltage Output To Coil (V) | 515 To 520 Volt |
Color | Black |
Current Draw | 3 Amp Per 1000 RPM |
Data Acquisition | No |
Includes Coil | Yes |
Maximum Operating Voltage | 22 Volt |
Minimum Operating Voltage | 6 Volt |
Output | Multiple Spark Discharge |
REV Limiter | No |
Spark Output (Millijoules) | 680 Millijoules |
