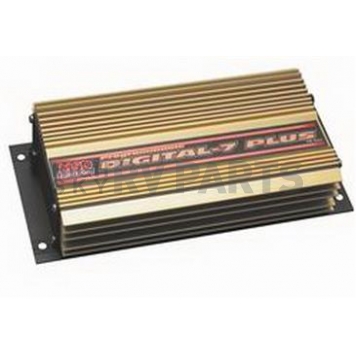

MSD Ignition Ignition Control Module 7531

Authorized Dealer
Brand: MSD Ignition MSD Ignition
0 reviews
  • Have a product question? Ask us
  • Part Number: 7531
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by June 07
Retail: $1,645.34
Price: $1,566.99
You Save: $78.35
CD Voltage Output To Coil (V)
535 Volt
Circuitry
Digital
Color
Gold
Current Draw
1.1 Amp Per 1000 RPM
Data Acquisition
Yes
Includes Coil
No
Maximum Operating Voltage
18 Volt
Minimum Operating Voltage
12 Volt
Output
Multiple Spark Discharge
Recommended Use
Drag Racing
REV Limiter
Yes
Share this page

MSD Ignition Ignition Control Module

Ignition Control Module; 7 Series; Drag Racing Use; Digital; 0-12500 RPM; With Programmable Rev Limiter; Multiple Spark Discharge; With Programmable Boost Retard; Not Compatible With Distributorless Systems

MPN: 7531

If you're a consummate engine tuner and know how to take advantage of minute changes in timing during a quarter mile pass, then the programmable digital 7 plus is the ignition for you! All of the standard programmable features such as individual cylinder management, step retards, Rev limits, shift points and more are included in the plus version but you also get more. Much, much more. A MAP sensor is required for the boost circuit. The ignition is supplied with wiring harnesses, mounting hardware, an RS232 computer harness and the Pro-Data plus software on a mini CD.
Recommended Use: Drag Racing
Color: Gold
Circuitry: Digital
Spark Output (Millijoules): 190 Millijoules
Maximum Operating Voltage: 18 Volt
Minimum Operating Voltage: 12 Volt
Output: Multiple Spark Discharge
Current Draw: 1.1 Amp Per 1000 RPM
CD Voltage Output To Coil (V): 535 Volt
Timing Retard: Three Stage
REV Limiter: Yes
Data Acquisition: Yes
Includes Coil: No

Features

  • Map A Complete Timing Curve For Each Gear
  • Updated X-Y Plots With Interpolation For Smooth Changes
  • Acquire 20 Seconds Of Run Data Including Two Seconds Prior To Launch
  • Vacuum Advance And Boost Retard Is Selectable Through A Map Sensor
  • There Is A Cam Sync Output For Fuel Controllers Or Data Acquisition
  • Automatic Magnetic Pickup Compensation For Crank Triggers Or Distributor Pick-Ups
  • Output To Activate A Device Through RPM, Time Or Pressure Inputs
  • Limited 1 Year Warranty
Specifications of MSD Ignition Ignition Control Module 7531
CD Voltage Output To Coil (V) 535 Volt
Circuitry Digital
Color Gold
Current Draw 1.1 Amp Per 1000 RPM
Data Acquisition Yes
Includes Coil No
Maximum Operating Voltage 18 Volt
Minimum Operating Voltage 12 Volt
Output Multiple Spark Discharge
Recommended Use Drag Racing
REV Limiter Yes
Spark Output (Millijoules) 190 Millijoules
Timing Retard Three Stage
