Fel Pro HP Intake Manifold Gasket - 12525

Brand: Fel Pro HP

Have a product question? Ask us
Part Number: 12525
Part Location: U.S.
Availability: *Special Order
Delivery: 3 - 4 Weeks

Retail: $74.54

Price: $70.99

You Save: $3.55

Compatibility

Chevrolet V8 Big Block

Material

Composite

Port Diameter (IN)

Not Applicable

Port Length (IN)

2.48 Inch

Port Shape

Rectangular

Port Width (IN)

1.796 Inch

Recommended Use

Performance

Thickness (IN)

0.120 Inch

Share this page

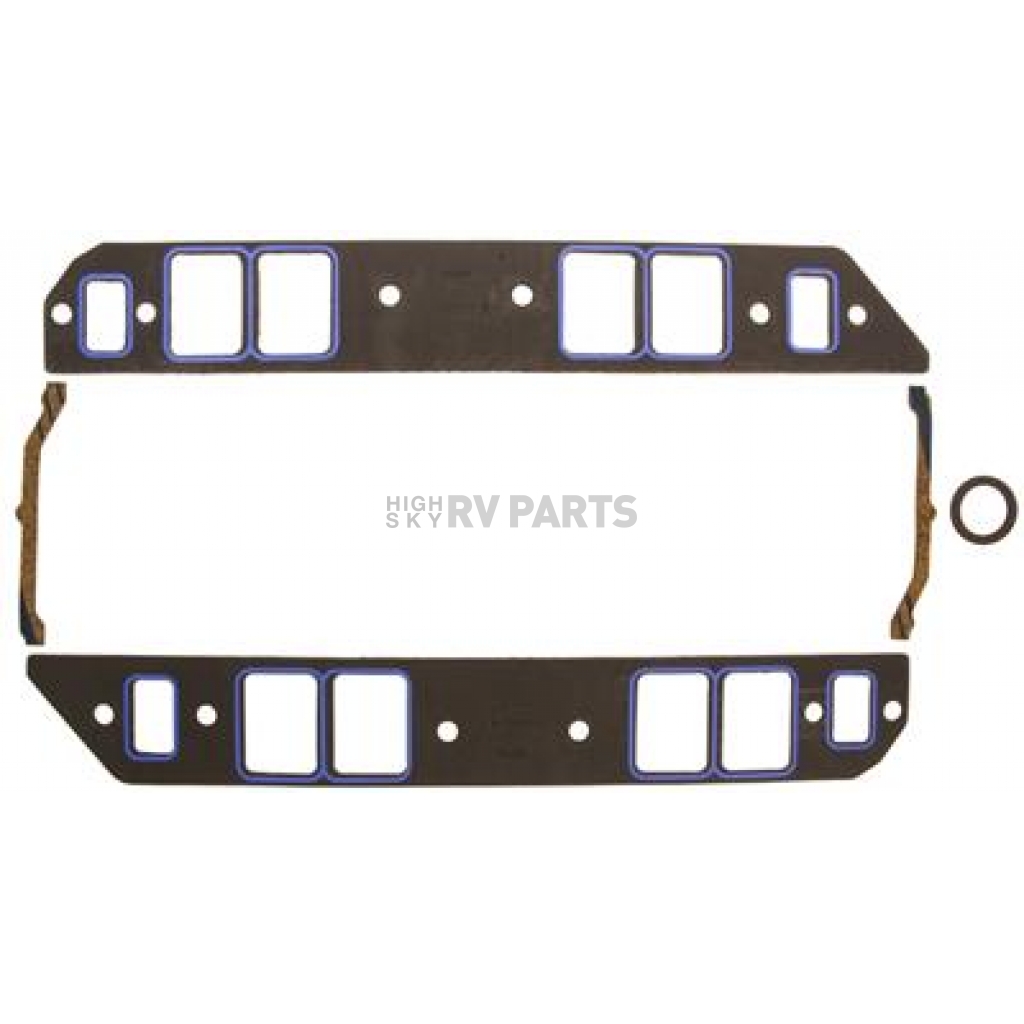

Fel Pro HP Intake Manifold Gasket

Intake Manifold Gasket; For Use With Chevy Big Block Engines With Brodix BB-1/ 2/ 3/ 4/ 5 Cylinder Heads; 1.796 Inch X 2.48 Inch Port Size; Composite; 0.120 Inch Thick

MPN: 12525

Fel-Pro performance intake manifold gaskets must prevent air, oil and dirt from being sucked into the intake ports and prevent coolant from leaking out of the coolant ports. For performance engines, this is complicated by the variety of aftermarket cylinder heads and intake manifolds in use. Fel-Pro performance intake manifold gaskets have been tested for use with all popular aftermarket cylinder head and intake manifold combinations. In addition, most Fel-Pro performance intake manifold gaskets do not have a metal core, which allows engine builders to trim the gasket to ensure an exact fit on modified ports. Fel-Pro offers a solid core intake manifold gasket for high vacuum race engines, as well as performance applications that have a long expected service life i.e., street machines, marine use or tow vehicles. The solid core provides extra strength and stability, and the gaskets come in proven port shapes used in race intake gaskets.

Recommended Use: Performance

Compatibility: Chevrolet V8 Big Block

Port Shape: Rectangular

Port Diameter (IN): Not Applicable

Port Length (IN): 2.48 Inch

Port Width (IN): 1.796 Inch

Thickness (IN): 0.120 Inch

Material: Composite

Features

Each Gasket, Set, Or Seal Is Built To Meet Or Exceed All Original Equipment Specifications And Is Validated For Fit, Form, And Function
Application Specific Design To Ensure A Perfect Fit And Correct Operation For Unsurpassed Quality That You Can Trust
Fel-Pro® Gasket Sets Are Engineered And Manufactured Specifically For The Aftermarket Repair Environment
Every Part For The Repair Procedure Is Included In The Kit Unless Otherwise Noted
No Supplier Warranty

Specifications of Fel Pro HP Intake Manifold Gasket - 12525
Compatibility	Chevrolet V8 Big Block
Material	Composite
Port Diameter (IN)	Not Applicable
Port Length (IN)	2.48 Inch
Port Shape	Rectangular
Port Width (IN)	1.796 Inch
Recommended Use	Performance
Thickness (IN)	0.120 Inch
