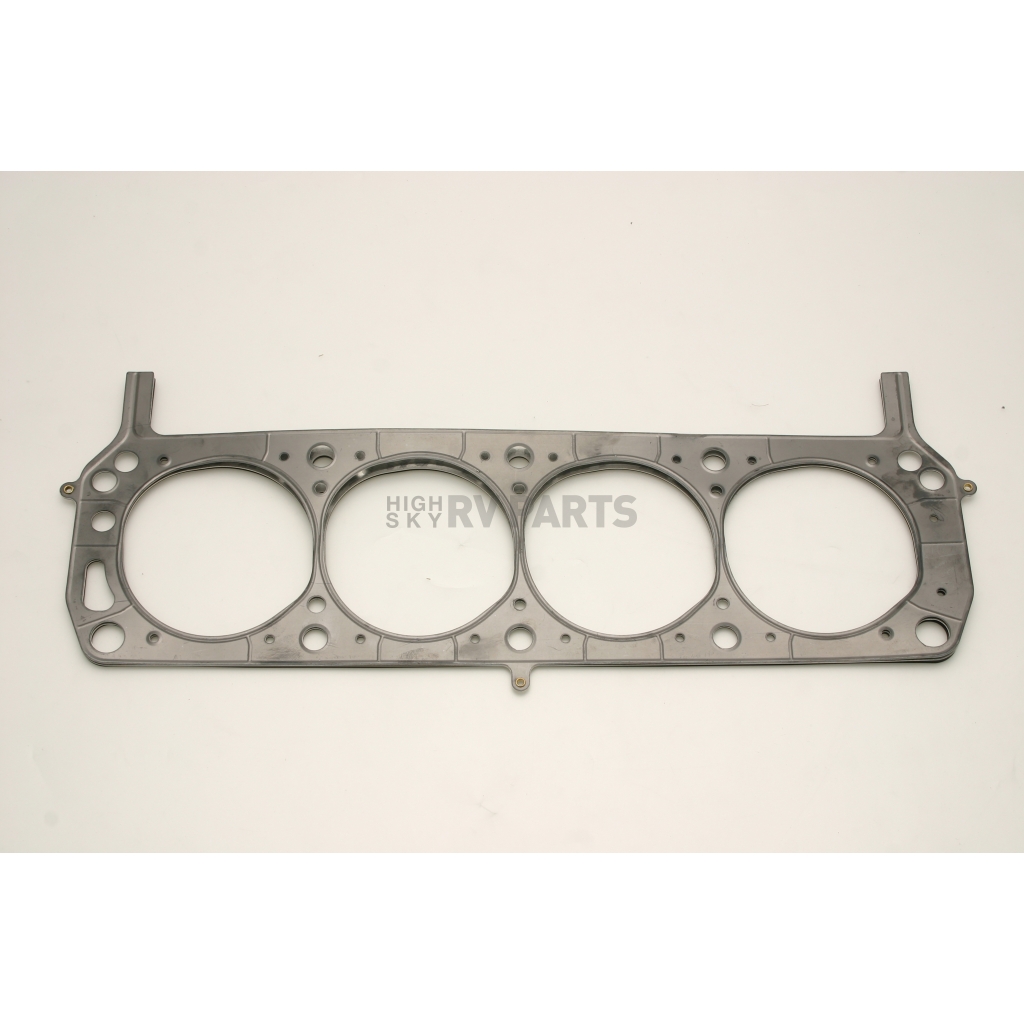

Cometic Cylinder Head Gasket Ford - C5365-120
Bore Diameter
4.18 Inch
Compression Thickness
0.12 Inch
Engine Compatibility
Ford Small Block V8 5.0L-5.8L 302-351W Cubic Inch
Material
Stainless Steel
Share this page
Cylinder Head Gasket; MLS; For Use With Ford 302/ 351W SVO Yates Style Right Side With Valve Pockets; 4.18 Inch Bore; 3 Layer Stainless Steel; 0.120 Inch Compressed Thickness; Single
MPN: C5365-120
Provide maximum sealing performance for today’s high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flouroelastomer rubber based material that is heat resistant to 250 Centigrade/ 482 Fahrenheit). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.Engine Compatibility: Ford Small Block V8 5.0L-5.8L 302-351W Cubic Inch
Material: Stainless Steel
Bore Diameter: 4.18 Inch
Compression Thickness: 0.12 Inch
Features
- Provide Maximum Sealing Performance For Today’s High Output Engines And Require No Sealants
- Ideal For Aluminum Heads To Aluminum Blocks And Aluminum Heads To Cast Iron Blocks Withstanding The Shearing Force Created By The Two Materials
- No Need To Re-Torque, The Embossing Design Of The MLS Gasket Promotes An Even Clamp Load Across The Sealing Surface Allowing For Measurable Reduced Bore Distortion
- Cometic MLS Gaskets Are Comprised Of Multiple Layers Of Stainless Steel Due To It’s Increased Strength, Ability To Rebound And Resistance To Corrosion
- The Outer Layers Of The Gaskets Are Embossed And Coated On Both Sides With Viton - A Flouroelastomer Rubber Based Material That Is Heat Resistant To 2500 Centigrade/ 482 Fahrenheit
- Viton Is Designed To Meet The Demands Of A Variety Of Harsh Sealing Environments, Load Conditions And Surface Finishes
- The Center Or Shim Layer Is A Uncoated Stainless Steel Layer Which Can Be Varied To Accommodate Multiple Thickness Requirements
- No Supplier Warranty
Specifications of Cometic Cylinder Head Gasket Ford - C5365-120 | |
Bore Diameter | 4.18 Inch |
Compression Thickness | 0.12 Inch |
Engine Compatibility | Ford Small Block V8 5.0L-5.8L 302-351W Cubic Inch |
Material | Stainless Steel |
1900-1900 Ford Small Block 221-351W
1900 Ford Small Block 221-351W
