Fel Pro HP Intake Manifold Gasket - 12534
Compatibility
Ford 302 SVO/ 351 SVO
Material
Composite
Port Diameter (IN)
Not Applicable
Port Length (IN)
1.95 Inch
Port Shape
Rectangular
Port Width (IN)
1.35 Inch
Recommended Use
Performance
Thickness (IN)
0.090 Inch
Share this page

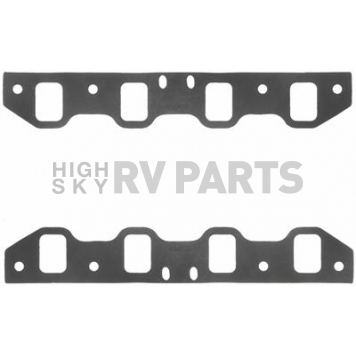

Fel Pro HP Intake Manifold Gasket
Intake Manifold Gasket; Ford 302 SVO/ 351 SVO; 1.35 Inch X 1.95 Inch Port Size; Composite; 0.090 Inch Thick
MPN: 12534
Fel-Pro performance intake manifold gaskets must prevent air, oil and dirt from being sucked into the intake ports and prevent coolant from leaking out of the coolant ports. For performance engines, this is complicated by the variety of aftermarket cylinder heads and intake manifolds in use. Fel-Pro performance intake manifold gaskets have been tested for use with all popular aftermarket cylinder head and intake manifold combinations. In addition, most Fel-Pro performance intake manifold gaskets do not have a metal core, which allows engine builders to trim the gasket to ensure an exact fit on modified ports. Fel-Pro offers a solid core intake manifold gasket for high vacuum race engines, as well as performance applications that have a long expected service life i.e., street machines, marine use or tow vehicles. The solid core provides extra strength and stability, and the gaskets come in proven port shapes used in race intake gaskets.
Recommended Use: Performance
Compatibility: Ford 302 SVO/ 351 SVO
Port Shape: Rectangular
Port Diameter (IN): Not Applicable
Port Length (IN): 1.95 Inch
Port Width (IN): 1.35 Inch
Thickness (IN): 0.090 Inch
Material: Composite
Features
- Prevent Air, Oil And Dirt From Being Sucked Into The Intake Ports And Prevent Coolant From Leaking Out Of The Coolant Ports
- Limited 1 Year Warranty
Specifications of Fel Pro HP Intake Manifold Gasket - 12534 | |
Compatibility | Ford 302 SVO/ 351 SVO |
Material | Composite |
Port Diameter (IN) | Not Applicable |
Port Length (IN) | 1.95 Inch |
Port Shape | Rectangular |
Port Width (IN) | 1.35 Inch |
Recommended Use | Performance |
Thickness (IN) | 0.090 Inch |
1900-1900 Ford Small Block 221-351W
1900 Ford Small Block 221-351W
