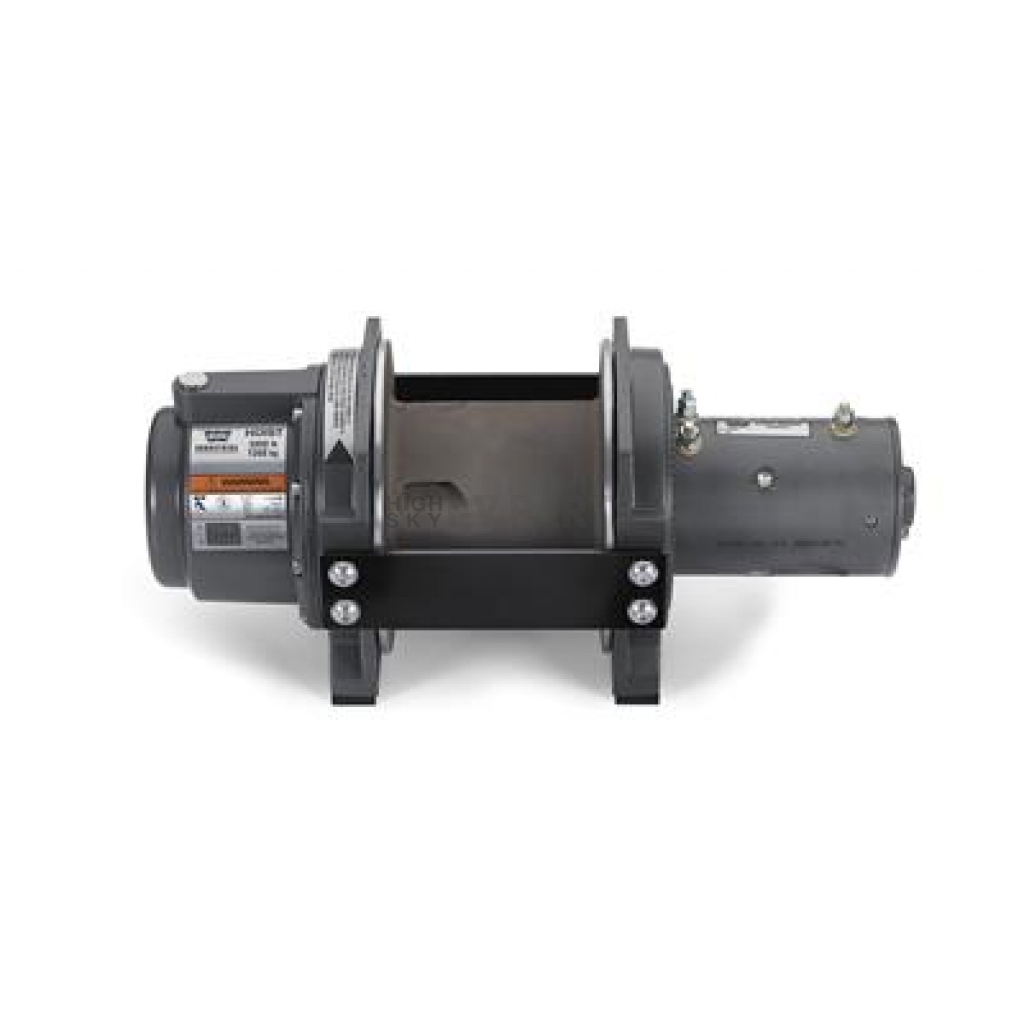

Warn Winch 3000 Pound Industrial Electric - 85251

Authorized Dealer
Brand: Warn Warn
0 reviews
  • Have a product question? Ask us
  • Part Number: 85251
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 17
Retail: $3,038.69
Price: $2,893.99
You Save: $144.70
Brake Type
Automatic Disc
Color
Black
Drive Gear Type
Planetary
Drum Material
Aluminum
Estimated Install Time (Hours)
2
Fairlead Type
No Fairlead
Free Spooling
Yes
Gear Reduction Ratio
8.2923611111
Includes Mounting Hardware
No
Line Diameter (IN)
No Rope
Line Length (FT)
No Rope
Share this page

Warn Winch

Winch; Industrial Hoist; 12 Volt Electric; 3000 Pound Line Pull Capacity; Without Rope; Without Fairlead; Without Remote; 199 Gear Reduction; Automatic Disc Brake

MPN: 85251

The DC3000 hoist combines a powerful series wound DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC3000 hoist is built on WARN's robust large frame design with a cast aluminum drum to provide plenty of wire rope capacity. Controls and accessories available separately.
Winch Rating: 3000 Pound
Recommended Use: Industrial
Type: Electric
Mount Type: Fixed Mount
Voltage: 12 Volt
Thermal Shutoff: No
Gear Reduction Ratio: 8.2923611111
Free Spooling: Yes
Operation Type: Power
Line Length (FT): No Rope
Line Material: No Rope
Fairlead Type: No Fairlead
Remote Type: Not Applicable
Brake Type: Automatic Disc
Includes Mounting Hardware: No
Color: Black
Mounting Pattern Size: 8 Inch Length x 4-1/2 Inch Width
Max Amp Draw: 231 Amp Draw At 3000 Pound
Line Speed At Max Pull: 13.2 Feet Per Minute At 3000 Pound
Motor Type: Series Wound
Drive Gear Type: Planetary
Line Diameter (IN): No Rope
Mounting Hole Quantity: 4
Drum Material: Aluminum
Estimated Install Time (Hours): 2

Please refer the Technical Bulletins attached to the Product Manual tab

Features

  • Powerful Series Wound DC Motor With Robust Sealing
  • Proven 3-Stage Planetary Gear Train
  • Permanent Grease Lubrication
  • Automatic Disc Brake That Holds Full Rated Load
  • Large Frame With A Cast Aluminum Drum For Plenty Of Wire Rope Capacity
  • Limited 1 Year Warranty
Specifications of Warn Winch 3000 Pound Industrial Electric - 85251
Brake Type Automatic Disc
Color Black
Drive Gear Type Planetary
Drum Material Aluminum
Estimated Install Time (Hours) 2
Fairlead Type No Fairlead
Free Spooling Yes
Gear Reduction Ratio 8.2923611111
Includes Mounting Hardware No
Line Diameter (IN) No Rope
Line Length (FT) No Rope
Line Material No Rope
Line Speed At Max Pull 13.2 Feet Per Minute At 3000 Pound
Max Amp Draw 231 Amp Draw At 3000 Pound
Motor Type Series Wound
Mount Type Fixed Mount
Mounting Hole Quantity 4
Mounting Pattern Size 8 Inch Length x 4-1/2 Inch Width
Operation Type Power
Recommended Use Industrial
Remote Type Not Applicable
Thermal Shutoff No
Type Electric
Voltage 12 Volt
Winch Rating 3000 Pound
