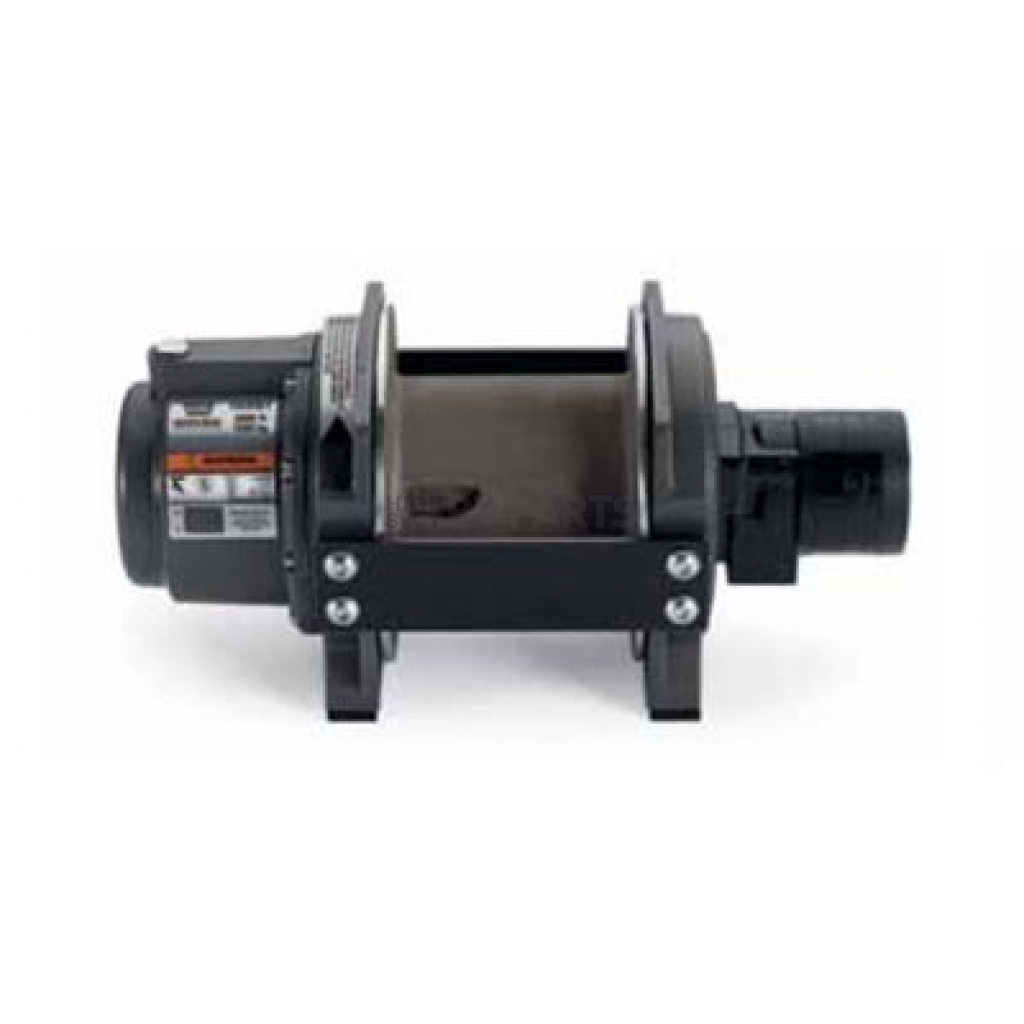

Warn Winch 3000 Pound Industrial Hydraulic - 36948

Authorized Dealer
Brand: Warn Warn
0 reviews
  • Have a product question? Ask us
  • Part Number: 36948
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by June 24
Retail: $2,928.44
Price: $2,788.99
You Save: $139.45
Brake Type
Automatic Disc
Color
Black
Drive Gear Type
Planetary
Drum Material
Aluminum
Estimated Install Time (Hours)
2
Fairlead Type
No Fairlead
Free Spooling
No
Gear Reduction Ratio
0.87569444444
Includes Mounting Hardware
No
Line Diameter (IN)
5/16 Inch
Line Length (FT)
No Rope
Share this page

Warn Winch

Winch; Industrial Hoist; Hydraulic; Counter-Clockwise Drum Rotation; 3000 Pound Line Pull Capacity; Without Rope; Without Fairlead; Without Remote; 21:1 Gear Reduction; Automatic Disc Brake

MPN: 36948

The HY3000 hoist combines a powerful and efficient hydraulic motor with robust sealing and our proven 2-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The HY3000 hoist is built on a large frame with a cast aluminum drum for plenty of wire rope capacity.
Winch Rating: 3000 Pound
Recommended Use: Industrial
Type: Hydraulic
Mount Type: Fixed Mount
Voltage: Not Applicable
Thermal Shutoff: No
Gear Reduction Ratio: 0.87569444444
Free Spooling: No
Operation Type: Power
Line Length (FT): No Rope
Line Material: No Rope
Fairlead Type: No Fairlead
Remote Type: Not Applicable
Brake Type: Automatic Disc
Includes Mounting Hardware: No
Color: Black
Mounting Pattern Size: 8 Inch Length X 6-1/2 Inch Width
Line Speed At Max Pull: 43 Feet Per Minute At 3000 Pound
Motor Type: Not Applicable
Drive Gear Type: Planetary
Line Diameter (IN): 5/16 Inch
Mounting Hole Quantity: 4
Drum Material: Aluminum
Estimated Install Time (Hours): 2

Features

  • Large Frame With A Cast Aluminum Drum For Plenty Of Wire Rope Capacity
  • Powerful Hydraulic Motor With Robust Sealing
  • Proven 2-Stage Planetary Geartrain
  • Permanent Grease Lubrication
  • Automatic Disk Brake That Holds Full Rated Load
  • Limited 1 Year Warranty
Specifications of Warn Winch 3000 Pound Industrial Hydraulic - 36948
Brake Type Automatic Disc
Color Black
Drive Gear Type Planetary
Drum Material Aluminum
Estimated Install Time (Hours) 2
Fairlead Type No Fairlead
Free Spooling No
Gear Reduction Ratio 0.87569444444
Includes Mounting Hardware No
Line Diameter (IN) 5/16 Inch
Line Length (FT) No Rope
Line Material No Rope
Line Speed At Max Pull 43 Feet Per Minute At 3000 Pound
Motor Type Not Applicable
Mount Type Fixed Mount
Mounting Hole Quantity 4
Mounting Pattern Size 8 Inch Length X 6-1/2 Inch Width
Operation Type Power
Recommended Use Industrial
Remote Type Not Applicable
Thermal Shutoff No
Type Hydraulic
Voltage Not Applicable
Winch Rating 3000 Pound
