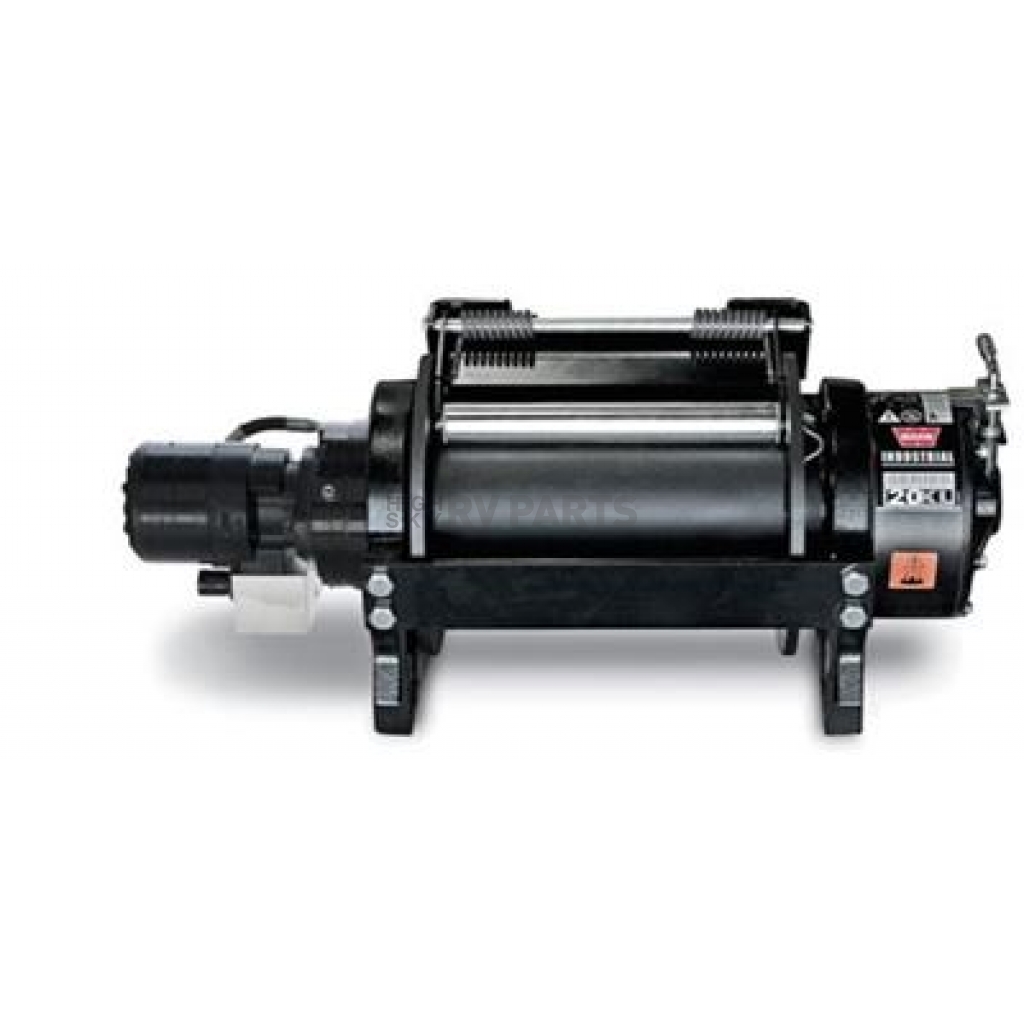

Warn Winch 20000 Pound Industrial Hydraulic - 79210

Authorized Dealer
Brand: Warn Warn
0 reviews
  • Have a product question? Ask us
  • Part Number: 79210
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by June 25
Retail: $7,264.94
Price: $6,918.99
You Save: $345.95
Brake Type
Spring Applied Disc
Color
Black
Drive Gear Type
Planetary
Electrical Control Type
Not Applicable
Estimated Install Time (Hours)
2
Fairlead Type
No Fairlead
Free Spooling
No
Includes Mounting Hardware
No
Line Diameter (IN)
No Rope
Line Length (FT)
No Rope
Line Material
No Rope
Share this page

Warn Winch

Winch; Series 20XL-LP; Vehicle Mounted; Industrial Winch; Low Pressure Hydraulic; Long Drum; Air Clutch; 20000 Pound Line Pull Capacity; Without Wire; Without Fairlead; Planetary Gear Drive

MPN: 79210

For hydraulic winching applications, no product performs better than a Warn Industrial winch. Powerful hydraulic motors allow for extended duty. Hardened steel, two stage planetary gear trains deliver efficient and reliable operation plus fast line speeds. Like their electric cousins, these products comply with world wide quality and safety standards.
Winch Rating: 20000 Pound
Recommended Use: Industrial
Type: Hydraulic
Mount Type: Fixed Mount
Voltage: Not Applicable
Motor Horsepower: Not Applicable
Thermal Shutoff: No
Gear Reduction Ratio: 28.5:1
Free Spooling: No
Operation Type: Manual
Line Length (FT): No Rope
Line Material: No Rope
Fairlead Type: No Fairlead
Remote Type: Not Applicable
Brake Type: Spring Applied Disc
Includes Mounting Hardware: No
Color: Black
Mounting Pattern Size: 18-1/2 Inch Length X 7-1/2 Inch Width
Line Speed At Max Pull: 11.9 Feet Per Minute At 20000 Pound
Electrical Control Type: Not Applicable
Drive Gear Type: Planetary
Line Diameter (IN): No Rope
Mounting Hole Quantity: 8
Estimated Install Time (Hours): 2

Please refer the Technical Bulletins attached to the Product Manual tab

Features

  • 11.9 Cubic-Inch High-Performance Motor With 20,000 Pounds. Capacity-Great For Wreckers, Trailers, Or Severe Duty Applications
  • Spring-Applied Disc Brake Designed To Hold The Full-Rated Load
  • Hardened Aircraft Grade Nickel Chromalloy Two Stage Planetary Gear Train For Speed And Reliability
  • Standard Air Clutch With Manual Clutch Option
  • Available In Short- And Long-Drum Versions
  • Meets SAE J706 And CE Specifications
  • Limited 1 Year Warranty
Specifications of Warn Winch 20000 Pound Industrial Hydraulic - 79210
Brake Type Spring Applied Disc
Color Black
Drive Gear Type Planetary
Electrical Control Type Not Applicable
Estimated Install Time (Hours) 2
Fairlead Type No Fairlead
Free Spooling No
Includes Mounting Hardware No
Line Diameter (IN) No Rope
Line Length (FT) No Rope
Line Material No Rope
Line Speed At Max Pull 11.9 Feet Per Minute At 20000 Pound
Motor Horsepower Not Applicable
Mount Type Fixed Mount
Mounting Hole Quantity 8
Mounting Pattern Size 18-1/2 Inch Length X 7-1/2 Inch Width
Operation Type Manual
Recommended Use Industrial
Remote Type Not Applicable
Thermal Shutoff No
Type Hydraulic
Voltage Not Applicable
Winch Rating 20000 Pound
