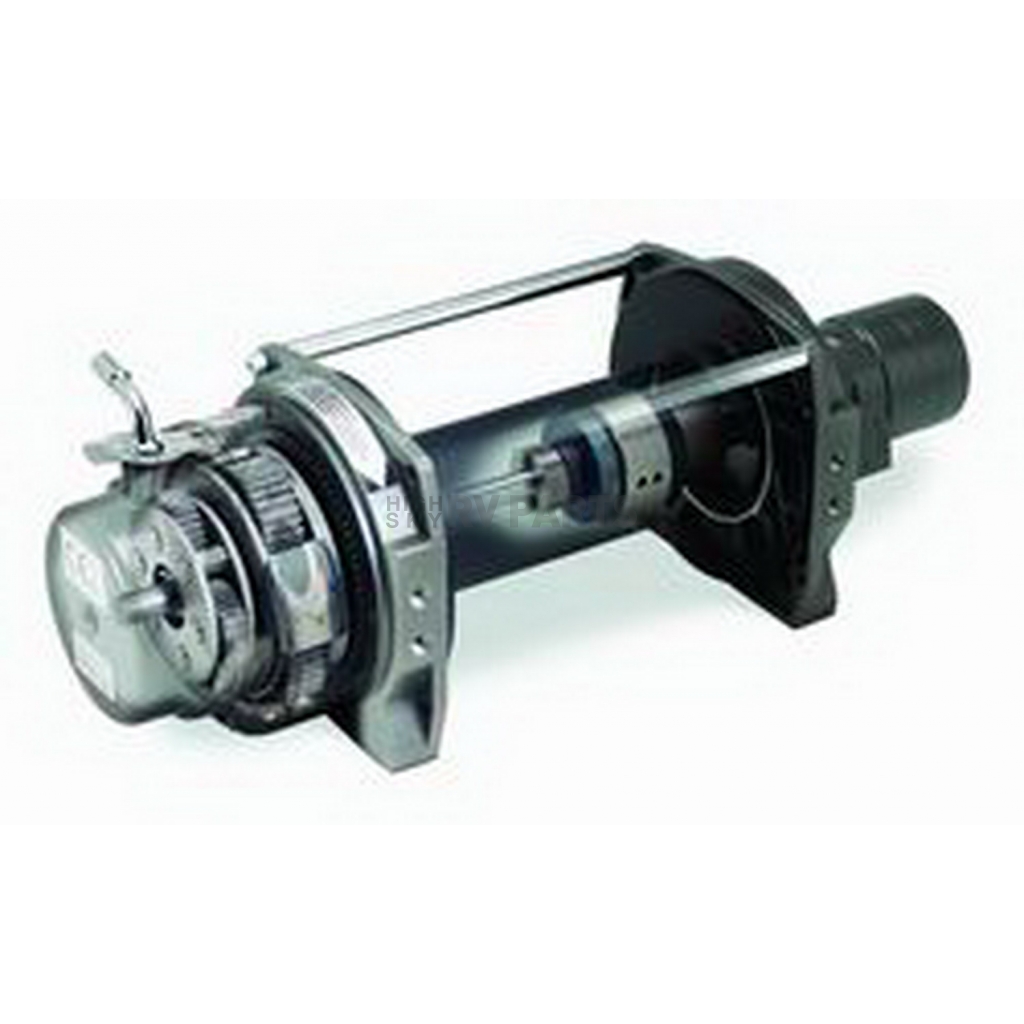

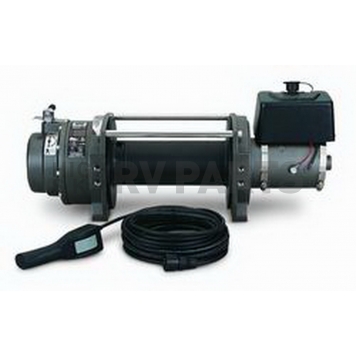

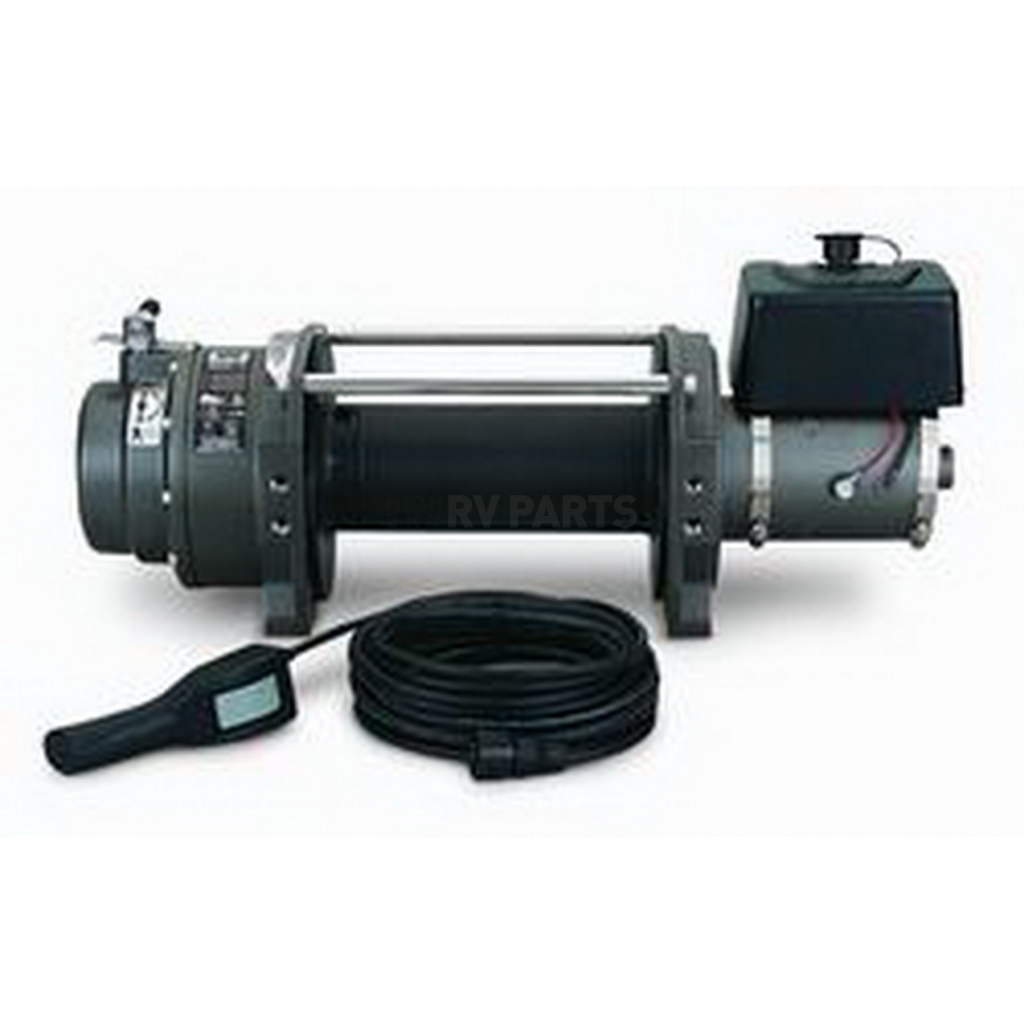

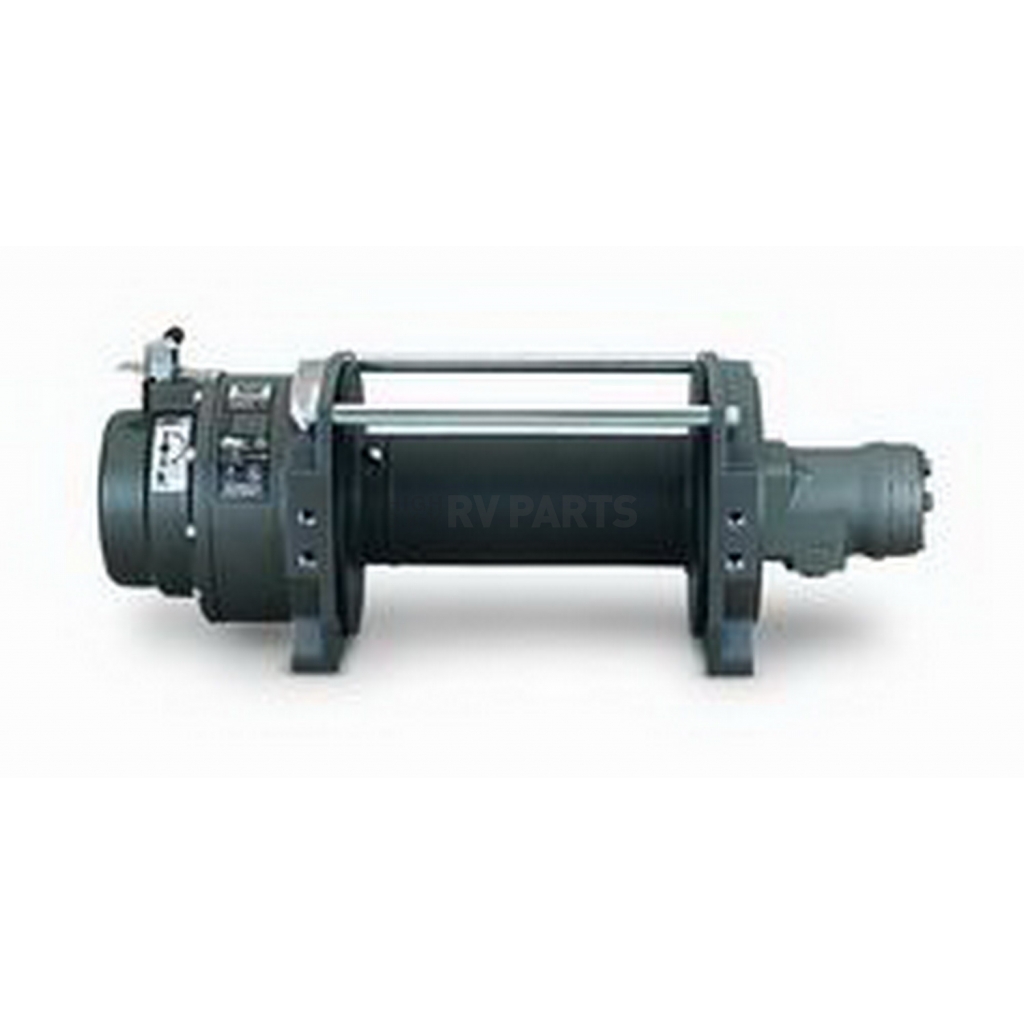

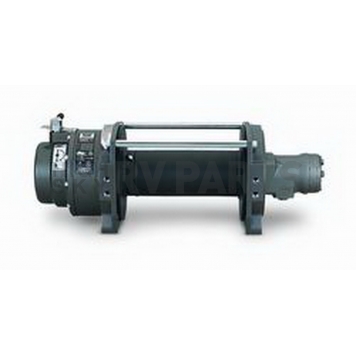

Warn Industries Winch 12000 Pound Fixed Mount Automatic - 30289
Brake Type
Disc Brake
Color
Gray
Conforms To J706 Standards
Yes
Drive Gear Type
Planetary
Electrical Control Type
Contactors
Fairlead Type
No Fairlead
Free Spooling
Yes
Includes Mounting Hardware
No
Line Diameter (IN)
No Rope
Line Length (FT)
No Rope
Line Material
No Rope
Share this page
Warn Industries Winch
Winch; Series 12 DC; Vehicle Mounted; Industrial Winch; 12 Volt Electric; 12000 Pound Line Pull Capacity; Without Wire; Without Fairlead; Wired Remote; Planetary Gear Drive
MPN: 30289
For electrically powered applications, Warn industrial offers a comprehensive line of products to meet or exceed your expectations. All Electric Winches feature heavy duty 12 or 24 Volt Series wound industrial motors and hardened steel three stage planetary gear trains that provide efficient and reliable operation. Every Warn industrial planetary Winch complies with the world's most stringent standards, including SAE J706 and NFPA
Winch Rating: 12000 Pound
Recommended Use: Industrial
Type: Electric
Mount Type: Fixed Mount
Voltage: 12 Volt
Motor Horsepower: 2.5 Horsepower
Max Amp Draw: 419 Amp Max Draw At 12000 Pound
Electrical Control Type: Contactors
Motor Type: Series Wound Motor
Thermal Shutoff: Yes
Drive Gear Type: Planetary
Gear Reduction Ratio: 315:1
Free Spooling: Yes
Operation Type: Automatic
Brake Type: Disc Brake
Line Diameter (IN): No Rope
Line Length (FT): No Rope
Line Material: No Rope
Fairlead Type: No Fairlead
Conforms To J706 Standards: Yes
Remote Type: Hand Held
Mounting Hole Quantity: 8
Mounting Pattern Length (IN): 12 Inch
Mounting Pattern Width (IN): 4-1/2 Inch
Includes Mounting Hardware: No
Color: Gray
Line Speed At Max Pull: 2.9 Feet Per Minute At 12000 Pound
Please refer the Technical Bulletins attached to the Product Manual tab
Features
- Thermal Overload Switch Protects Motor From Overheating
- SAE J706 Compliant Disc Brake Designed For Extended Power Out Use
- Rugged 32 Foot Industrial Remote Control
- Weatherproof Industrial Contactor Control Pack
- Limited 1 Year Warranty
| Specifications of Warn Industries Winch 12000 Pound Fixed Mount Automatic - 30289 | |
| Brake Type | Disc Brake |
| Color | Gray |
| Conforms To J706 Standards | Yes |
| Drive Gear Type | Planetary |
| Electrical Control Type | Contactors |
| Fairlead Type | No Fairlead |
| Free Spooling | Yes |
| Includes Mounting Hardware | No |
| Line Diameter (IN) | No Rope |
| Line Length (FT) | No Rope |
| Line Material | No Rope |
| Line Speed At Max Pull | 2.9 Feet Per Minute At 12000 Pound |
| Max Amp Draw | 419 Amp Max Draw At 12000 Pound |
| Motor Horsepower | 2.5 Horsepower |
| Motor Type | Series Wound Motor |
| Mount Type | Fixed Mount |
| Mounting Hole Quantity | 8 |
| Mounting Pattern Length (IN) | 12 Inch |
| Mounting Pattern Width (IN) | 4-1/2 Inch |
| Operation Type | Automatic |
| Recommended Use | Industrial |
| Remote Type | Hand Held |
| Thermal Shutoff | Yes |
| Type | Electric |
| Voltage | 12 Volt |
| Winch Rating | 12000 Pound |
