Turbo Smart Turbocharger Wastegate - TS-0554-1014

Brand: Turbo Smart

Have a product question? Ask us
Part Number: TS-0554-1014
Part Location: U.S.
Availability: Out Of Stock

Retail: $542.84

Price: $516.99

You Save: $25.85

Adjustable

Control

Mechanical

Diameter

50 Millimeter

PSI Range

14 Pounds Per Square Inch

External

Wastegate Base Material

Stainless Steel

Share this page

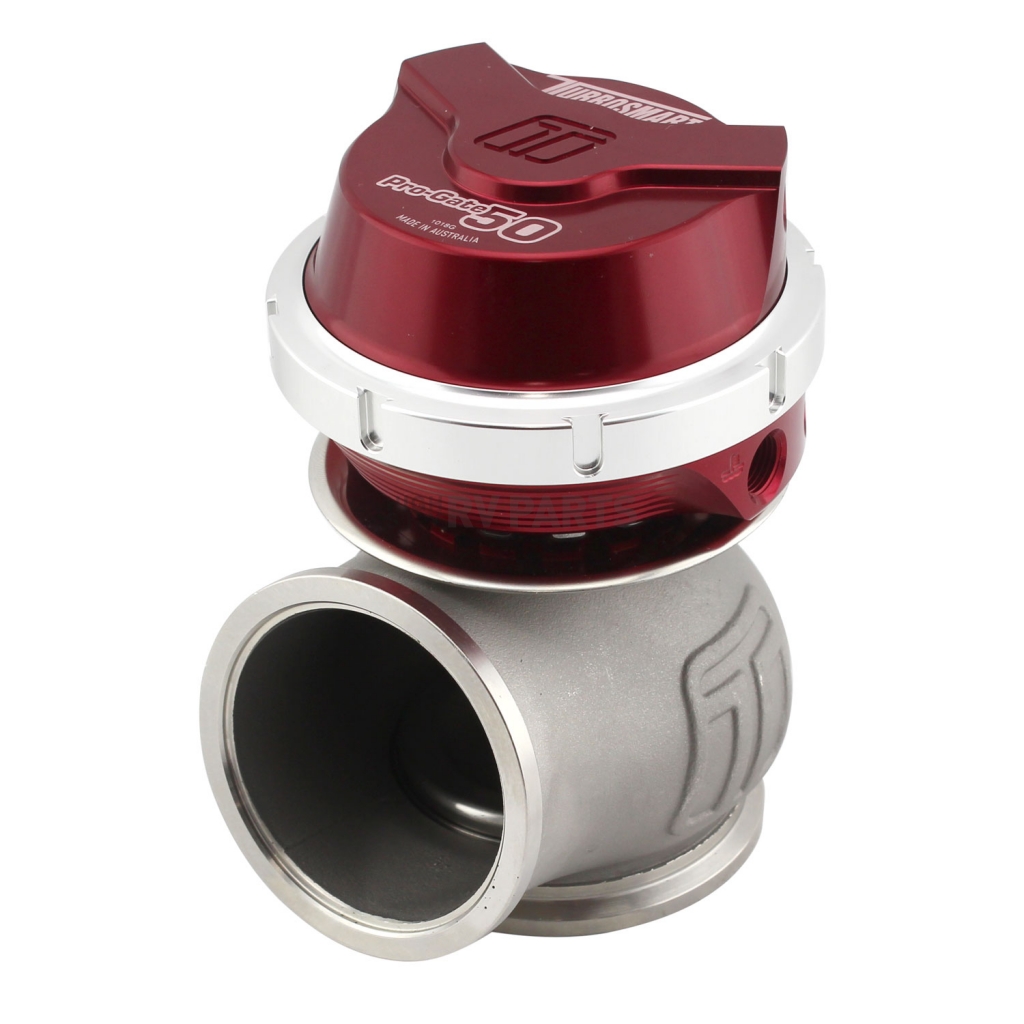

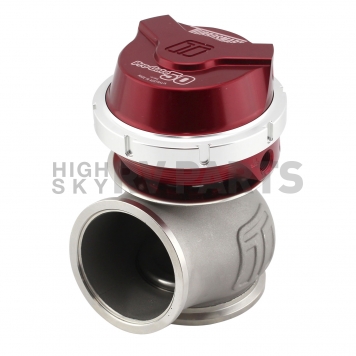

Turbo Smart Turbocharger Wastegate

Turbocharger Wastegate; Gen-V Pro-Gate50; Red; 50 MM; 14 PSI; With Inlet and Outlet Flanges/ V-Band Clamps/ Valve Seat/ Vacuum Fittings

MPN: TS05541014

The Gen-V WG50 Pro-Gate50 external wastegate is a cost effective, high performing 50 millimeter external wastegate. The Gen-V provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity. A direct fit upgrade to all 4th-generation Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base, strap-type V-band clamps, liquid-cooling, 1/8 inch NPT ports, and are provided with a range of springs.

Type: External

PSI Range: 14 Pounds Per Square Inch

Control: Mechanical

Diameter: 50 Millimeter

Adjustable: Yes

Wastegate Base Material: Stainless Steel

Please refer the Technical Bulletins attached to the Product Manual tab

Features

Liquid Actuator Cooling Option
Strap Type V-Band Clamps
User Adjustable Actuator Position
Modular Design For Actuator Interchangeability
Nitronic 60 Valve Guide And High Temp 347 Stainless Steel Body
Unique Collar-Locking System, Variable Actuator Cap And Base For Easy
Limited 1 Year Warranty

Specifications of Turbo Smart Turbocharger Wastegate - TS-0554-1014
Adjustable	Yes
Control	Mechanical
Diameter	50 Millimeter
PSI Range	14 Pounds Per Square Inch
Type	External
Wastegate Base Material	Stainless Steel
