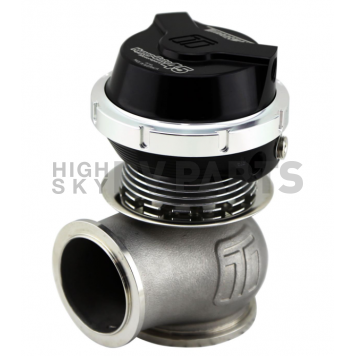

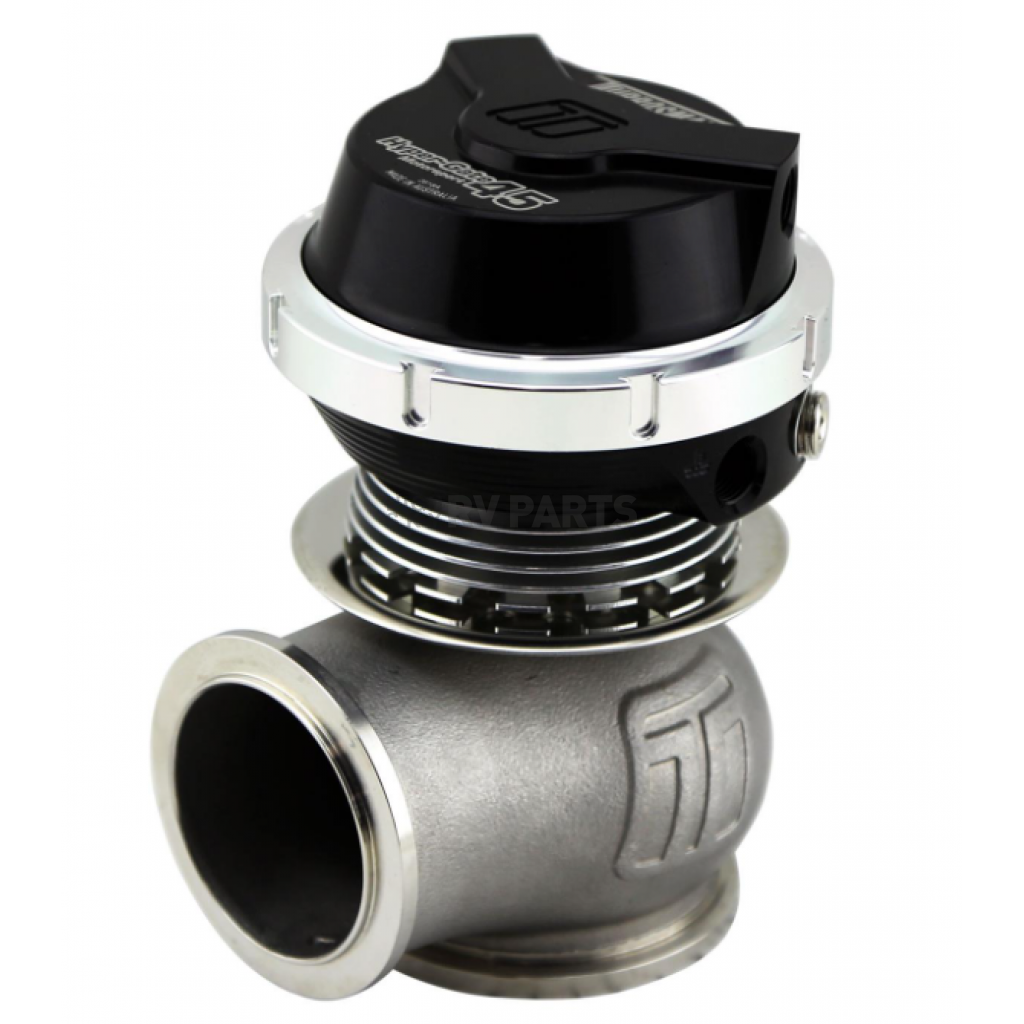

Turbo Smart Turbocharger Wastegate - TS-0553-1102

Brand: Turbo Smart
0 reviews
  • Have a product question? Ask us
  • Part Number: TS-0553-1102
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by June 20
Retail: $663.59
Price: $631.99
You Save: $31.60
Control
Mechanical
Diameter
1-7/8 Inch
PSI Range
14 Pounds Per Square Inch
Type
External
Wastegate Base Material
Cast Stainless Steel
Share this page

Turbo Smart Turbocharger Wastegate

Turbocharger Wastegate; Gen-V Hyper-Gate45; For Motorsports Applications; Black; 45 MM; With Inlet and Outlet Flanges/ V-Band Clamps/ Valve Seat/ Vacuum Fittings

MPN: TS05531102

The Gen-V WG45M Hyper-Gate45 Motorsport external wastegate is a cost effective, high performing 45 millimeter external wastegate designed specifically for endurance racing or where water cooling is not available and high thermal thresholds are required for extended periods of time. The Gen-V provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity. A direct fit upgrade to all 4th-generation Turbosmart wastegates and feature a CFD driven heatsink design, our unique collar-locking system, variable actuator cap and base, strap-type V-band clamps, liquid-cooling, 1/8 inch NPT ports, and are provided with a range of springs.
Type: External
PSI Range: 14 Pounds Per Square Inch
Control: Mechanical
Diameter: 1-7/8 Inch
Wastegate Base Material: Cast Stainless Steel

Please refer the Technical Bulletins attached to the Product Manual tab

Features

  • CFD Optimized And Validated In-House For Maximum Flow And Thermal Management
  • The GenV Range Has More Features, Options And Performance Than Any Other Gate Like It
  • Unique Collar-Locking System, Variable Actuator Cap And Base For Easy
  • 60 Degree Optional Routing Of Reference Hoses, Strap-Type V-Band Clamps
  • Nitronic 60 Valve Guide And High Temp 347 Stainless Steel Body
  • Limited 1 Year Warranty
Specifications of Turbo Smart Turbocharger Wastegate - TS-0553-1102
Control Mechanical
Diameter 1-7/8 Inch
PSI Range 14 Pounds Per Square Inch
Type External
Wastegate Base Material Cast Stainless Steel
