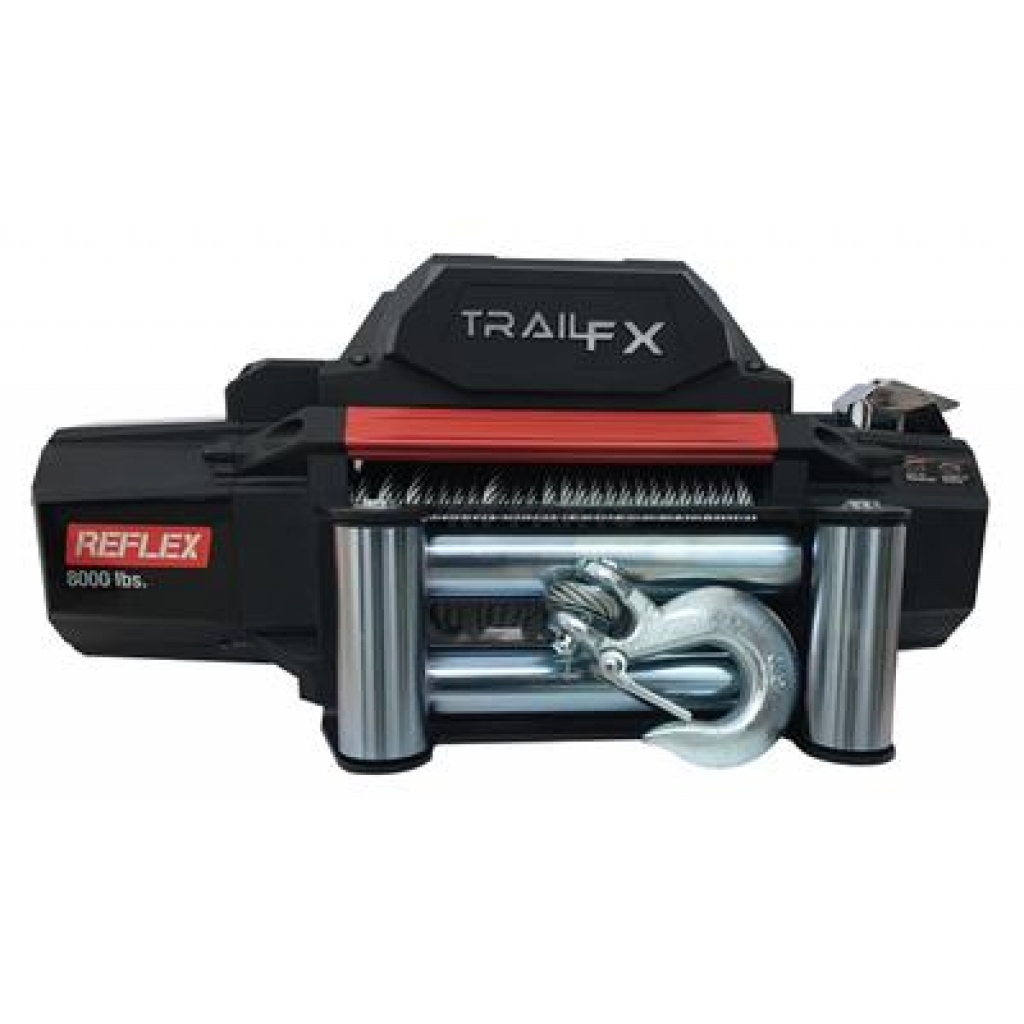

TrailFX Winch 8000 Pound Vehicle Mounted Automatic - WR08B
Brake Type
Automatic In-The-Drum
Color
Black
Drive Gear Type
3-Stage Planetary
Electrical Control Type
Solenoid
Fairlead Type
Roller
Free Spooling
Yes
Includes Mounting Hardware
Yes
Line Diameter (IN)
0.31 Inch
Line Length (FT)
94 Feet
Line Material
Steel
Line Speed At Max Pull
6.1 Feet Per Minute At 8000 Pound
Share this page
TrailFX Winch
Winch; TFX Reflex Winches; Vehicle Mounted; Vehicle Recovery Winch; 12 Volt Electric; 8000 Pound Line Pull Capacity; 94 Foot Wire Rope; Roller Fairlead; Wired And Wireless Remote; Integrated Solenoid; 3 Stage Planetary Gear Drive; Winch Carrier/ Winch Mount Not Included
MPN: WR08B
The new REFLEX Series from FX Products is built for enthusiasts who need dependable performance to make the most of their outdoor lifestyle. With a die cast aluminum control box, faster line speeds, IP68-rated waterproofing, high performance motor and wireless remote controls, these winches will impress the hardcore off roader.
Winch Rating: 8000 Pound
Recommended Use: Self-Recovery
Type: Electric
Mount Type: Vehicle Mounted
Voltage: 12 Volt
Motor Horsepower: 6.7 Horsepower
Max Amp Draw: 399 Amp Max Draw At 8000 Pound
Electrical Control Type: Solenoid
Motor Type: Series Wound Motor
Thermal Shutoff: No
Drive Gear Type: 3-Stage Planetary
Gear Reduction Ratio: 150:1
Free Spooling: Yes
Operation Type: Automatic
Brake Type: Automatic In-The-Drum
Line Diameter (IN): 0.31 Inch
Line Length (FT): 94 Feet
Line Material: Steel
Fairlead Type: Roller
Remote Type: Wired/ Wireless
Mounting Hole Quantity: 4
Mounting Pattern Length (IN): 10 Inch
Mounting Pattern Width (IN): 4-1/2 Inch
Includes Mounting Hardware: Yes
Color: Black
Line Speed At Max Pull: 6.1 Feet Per Minute At 8000 Pound
Features
- High Strength Wire Or Synthetic Rope Models Designed To Pull Load Safely
- Remote Control Allows Control From A Safe Distance
- Control Box Houses Solenoid, Meets IP68 Standards For Water Resistance
- Impressive Pulling Power
- Limited Lifetime Warranty
| Specifications of TrailFX Winch 8000 Pound Vehicle Mounted Automatic - WR08B | |
| Brake Type | Automatic In-The-Drum |
| Color | Black |
| Drive Gear Type | 3-Stage Planetary |
| Electrical Control Type | Solenoid |
| Fairlead Type | Roller |
| Free Spooling | Yes |
| Includes Mounting Hardware | Yes |
| Line Diameter (IN) | 0.31 Inch |
| Line Length (FT) | 94 Feet |
| Line Material | Steel |
| Line Speed At Max Pull | 6.1 Feet Per Minute At 8000 Pound |
| Max Amp Draw | 399 Amp Max Draw At 8000 Pound |
| Motor Horsepower | 6.7 Horsepower |
| Motor Type | Series Wound Motor |
| Mount Type | Vehicle Mounted |
| Mounting Hole Quantity | 4 |
| Mounting Pattern Length (IN) | 10 Inch |
| Mounting Pattern Width (IN) | 4-1/2 Inch |
| Operation Type | Automatic |
| Recommended Use | Self-Recovery |
| Remote Type | Wired/ Wireless |
| Thermal Shutoff | No |
| Type | Electric |
| Voltage | 12 Volt |
| Winch Rating | 8000 Pound |
Download Service Manual for TrailFX Winch 8000 Pound Vehicle Mounted Automatic - WR08B
