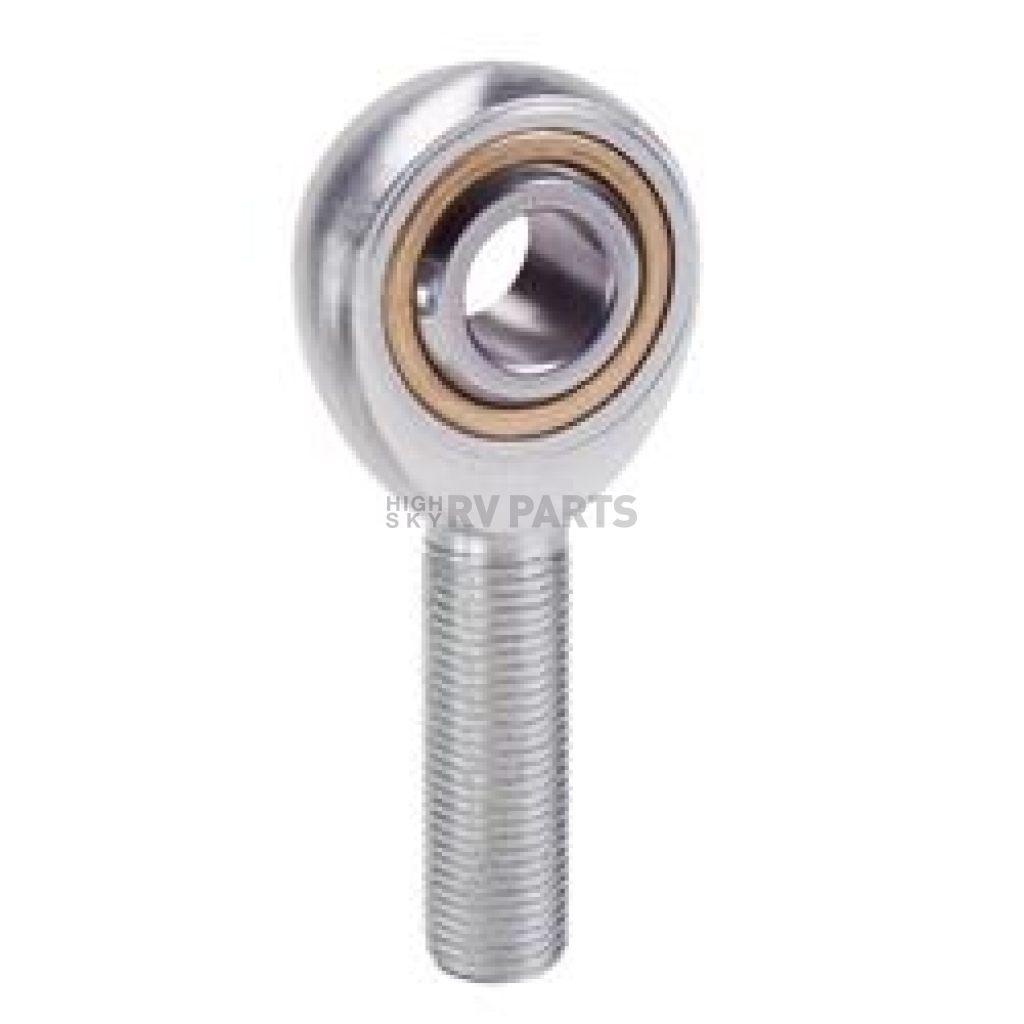

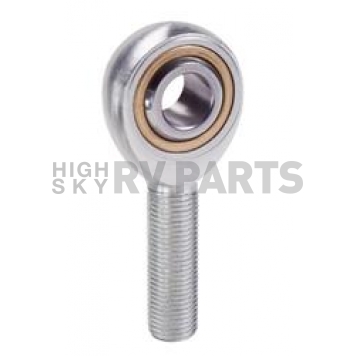

QA1 MVM Series Rod End - MVMR10

Brand: QA1
0 reviews
  • Have a product question? Ask us
  • Part Number: MVMR10
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 3 - 4 Weeks
Retail: $33.59
Price: $31.99
You Save: $1.60
Ball Diameter
19.05 Millimeter
Bore Size
10 Millimeter
Color
Silver
Design
3-Piece
Finish
Chrome Plated Ball
Load Capacity
6292 Pound
Material
Carbon Steel
Thread
M10 X 1.5 Male Right Hand
Type
Rod Eye
Share this page

QA1 Rod End

Rod End; MVM Series; Bronze Race Rod End; Rod Eye; 3 Piece Design; M10 x 1.5 Male Right Hand Thread; 10 Millimeter Bore Size; 19.05 Millimeter Diameter Ball; 6292 Pound Load Capacity; Carbon Steel

MPN: MVMR10

QA1's Bronze Race Carbon Steel metric rod ends are generally appropriate for low load, high oscillation applications. These rod ends are protective coated for corrosion resistance and are available with left and right hand threads. In QA1’s 3-Piece rod end, the ball is pressed into a sleeve that is swaged around the ball. After swaging, the unit is called the insert. The O.D. of the insert is then turned down and faced off to square up the sides for staking into a rod end body. This unit offers better ball-to-race conformity for tighter tolerances.
Type: Rod Eye
Design: 3-Piece
Thread: M10 X 1.5 Male Right Hand
Bore Size: 10 Millimeter
Ball Diameter: 19.05 Millimeter
Load Capacity: 6292 Pound
Finish: Chrome Plated Ball
Color: Silver
Material: Carbon Steel

Features

  • Carbon Steel Body
  • Protective Coated For Corrosion Resistance
  • Available With Left And Right Hand Threads
  • Good Choice For High Load, High Oscillation Applications That Require Tighter Tolerances
  • Heat Treated 52100 Steel Ball Bearing
  • Precision Ground, Hard Chrome Plated Ball
  • Limited 1 Year Warranty
Specifications of QA1 MVM Series Rod End - MVMR10
Ball Diameter 19.05 Millimeter
Bore Size 10 Millimeter
Color Silver
Design 3-Piece
Finish Chrome Plated Ball
Load Capacity 6292 Pound
Material Carbon Steel
Thread M10 X 1.5 Male Right Hand
Type Rod Eye
