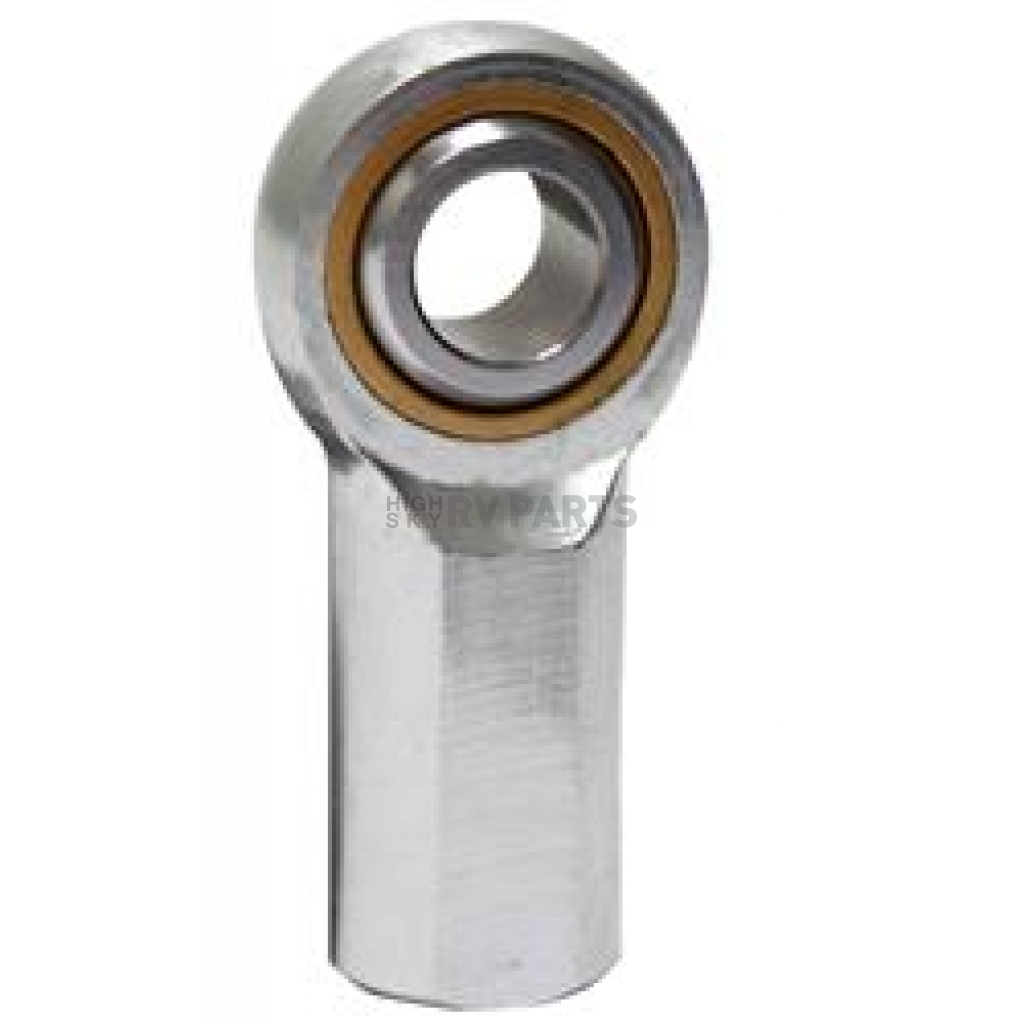

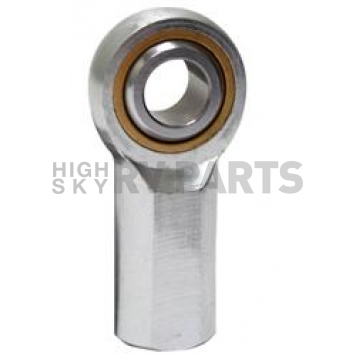

QA1 MVF Series Rod End - MVFR14

Brand: QA1
0 reviews
  • Have a product question? Ask us
  • Part Number: MVFR14
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 3 - 4 Weeks
Retail: $56.69
Price: $53.99
You Save: $2.70
Ball Diameter
25.4 Millimeter
Bore Size
14 Millimeter
Color
Silver
Design
3-Piece
Finish
Chrome Plated Ball
Load Capacity
9967 Pound
Material
Carbon Steel
Thread
M14 X 2 Female Right Hand
Type
Spherical Rod Eye
Share this page

QA1 Rod End

Rod End; MVF Series; Bronze Race Rod End; Spherical Rod Eye; 3 Piece Design; M14 x 2 Female Right Hand Thread; 14 Millimeter Bore Size; 25.40 Millimeter Diameter Ball; 9967 Pound Load Capacity; Carbon Steel

MPN: MVFR14

QA1's Bronze Race Carbon Steel metric rod ends are generally appropriate for low load, high oscillation applications. These rod ends are protective coated for corrosion resistance and are available with left and right hand threads. In QA1’s 3-Piece rod end, the ball is pressed into a sleeve that is swaged around the ball. After swaging, the unit is called the insert. The O.D. of the insert is then turned down and faced off to square up the sides for staking into a rod end body. This unit offers better ball-to-race conformity for tighter tolerances.
Type: Spherical Rod Eye
Design: 3-Piece
Thread: M14 X 2 Female Right Hand
Bore Size: 14 Millimeter
Ball Diameter: 25.4 Millimeter
Load Capacity: 9967 Pound
Finish: Chrome Plated Ball
Color: Silver
Material: Carbon Steel

Features

  • Carbon Steel Body
  • Protective Coated For Corrosion Resistance
  • Available With Left And Right Hand Threads
  • Good Choice For High Load, High Oscillation Applications That Require Tighter Tolerances
  • Heat Treated 52100 Steel Ball Bearing
  • Precision Ground, Hard Chrome Plated Ball
  • Limited 1 Year Warranty
Specifications of QA1 MVF Series Rod End - MVFR14
Ball Diameter 25.4 Millimeter
Bore Size 14 Millimeter
Color Silver
Design 3-Piece
Finish Chrome Plated Ball
Load Capacity 9967 Pound
Material Carbon Steel
Thread M14 X 2 Female Right Hand
Type Spherical Rod Eye
