MSD Ignition Ignition Control Module 6428
CD Voltage Output To Coil (V)
535 Volt
Circuitry
Digital
Color
Red
Current Draw
0.8 Amp Per 0 To 12000 RPM
Data Acquisition
Yes
Includes Coil
Yes
Maximum Operating Voltage
18 Volt
Minimum Operating Voltage
6 Volt
Output
Capacitive Discharge
Recommended Use
Drag Racing/Circle Track
REV Limiter
Yes
Share this page
MSD Ignition Ignition Control Module
Ignition Control Module; 6 Series Pro; Drag Racing/Circle Track Use; Digital; 0-12000 RPM; With Adjustable Rev Limiter; Without Boost Retard; Red
MPN: 6428

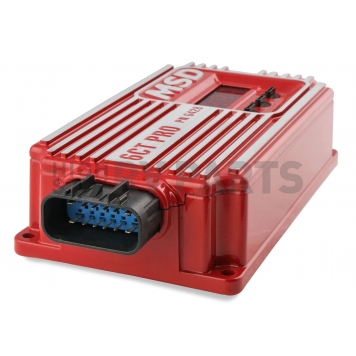

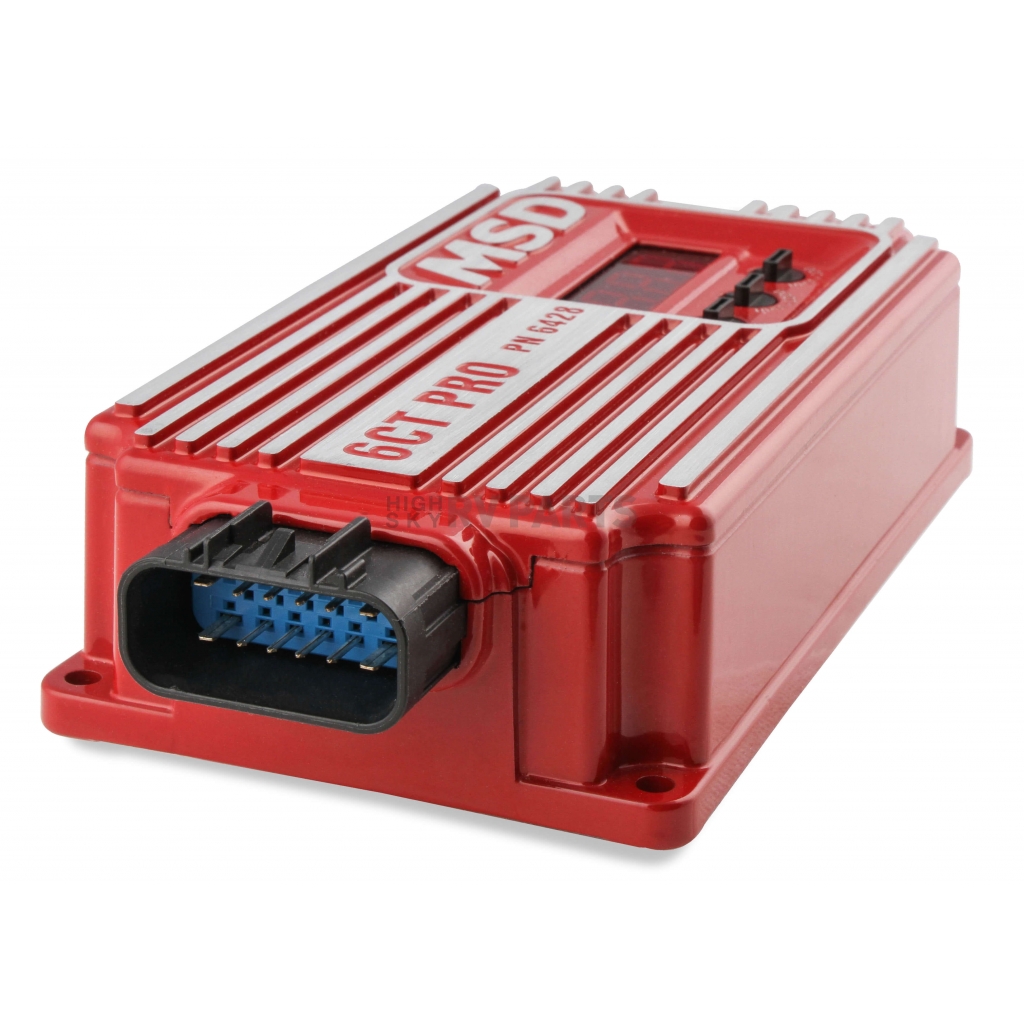

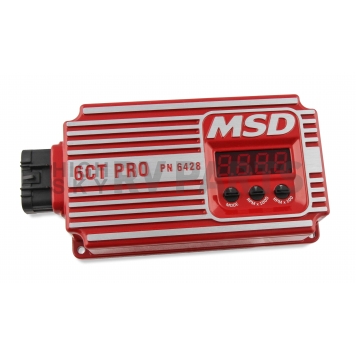

Based on the superior design of the MSD 6CT, the 6CT PRO adds another offering to MSD’s line of technologically advanced ignitions for circle track racing. With legendary MSD Ignition power, the 6CT PRO offers a slew of features. A large digital LED display makes it easier than ever to see the rev limiter setting when dialing it in using the laser etched rotary dials on the face of the unit. Rev limiting is controlled via microprocessor making it so smooth the chassis is virtually undisturbed when charging into turns. The rotary dials are also used to set cylinder select for 4, 6, and 8 cylinder engines, and to adjust the built-in start retard providing options of 0 Degree, 10 Degree, or 20 Degree of timing retard for quick starts. As an added bonus, the LED display can be used as a live tach or will display your racecars battery voltage. The unit records the highest RPM your engine turned during the race, which can be recalled easily on the LED display and is quickly reset using a remote, momentary switch. The 6CT PRO offers all this and more in a fully potted housing that utilizes a single connector to keep wiring tidy.
Recommended Use: Drag Racing/Circle Track
Color: Red
Circuitry: Digital
Spark Output (Millijoules): 135 To 150 Millijoules
Maximum Operating Voltage: 18 Volt
Minimum Operating Voltage: 6 Volt
Output: Capacitive Discharge
Current Draw: 0.8 Amp Per 0 To 12000 RPM
CD Voltage Output To Coil (V): 535 Volt
Timing Retard: Three Stage
REV Limiter: Yes
Data Acquisition: Yes
Includes Coil: Yes
Features
- Large, Easy To Read LED Display; LED Display Shows Rev Limit, Highest RPM Turned, Cylinder Select, Start Retard, Battery Voltage And Can Be Set To Tach Mode
- Records Highest RPM The Engine Turned For Last 20 Minutes Of Run Time; Highest RPM Recording Can Quickly Be Reset With An External Momentary Switch
- Built-In Start Retard Adjustable In 0 Degree, 10 Degree Or 20 Degree Increments For Quick, Easy Starts And Extend Starter Life
- Reverse Polarity And Overheat Protection Provides Ultimate Reliability
- Full Delivery Of Spark Energy Down To 6 Volt Battery Supply
- Highly Efficient, Low Current Draw For Extended Battery Life
- Fully Potted Housing To Stand Up To Demanding Race Conditions

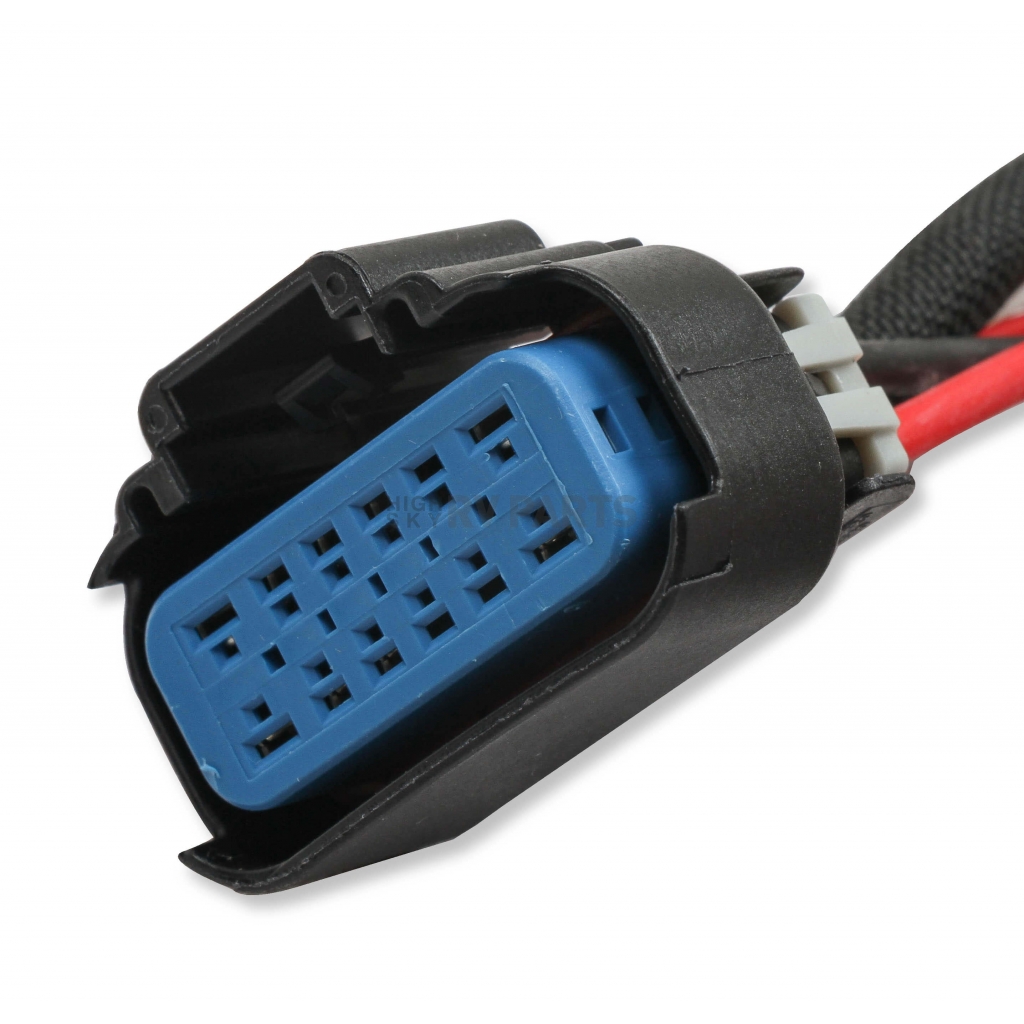

- Single Plug-In Connector For Clean Wiring; Features On 4, 6 And 8 Cylinder Engines
- Easy Setup Of Features With Three Rotary Dials On The Face Of The Unit
- Limited 1 Year Warranty
| Specifications of MSD Ignition Ignition Control Module 6428 | |
| CD Voltage Output To Coil (V) | 535 Volt |
| Circuitry | Digital |
| Color | Red |
| Current Draw | 0.8 Amp Per 0 To 12000 RPM |
| Data Acquisition | Yes |
| Includes Coil | Yes |
| Maximum Operating Voltage | 18 Volt |
| Minimum Operating Voltage | 6 Volt |
| Output | Capacitive Discharge |
| Recommended Use | Drag Racing/Circle Track |
| REV Limiter | Yes |
| Spark Output (Millijoules) | 135 To 150 Millijoules |
| Timing Retard | Three Stage |
