MSD Ignition Distributor 85551
Cap Color
Red
Cap Type
HEI/ Male Posts
Coil In Cap
No
Condition
New
Drive Gear Type
Iron Gear
Includes Cap And Rotor
Yes
Recommended Use
Street/ Strip/ Track/ Off-Road
Spark Advance Type
Mechanical Advance
Spark Distribution Type
Magnetic Trigger
With Ignition Module
No
With Tach Drive
No
Share this page

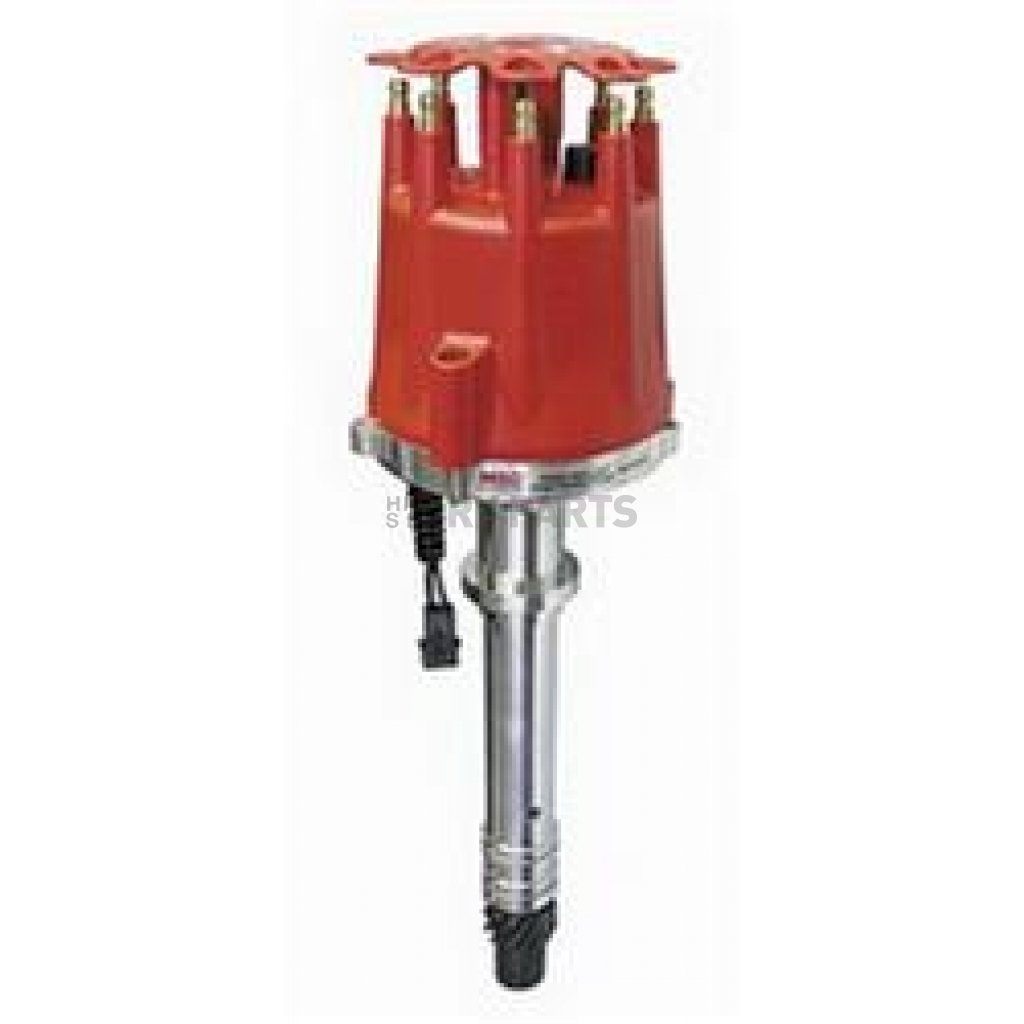

MSD Ignition Distributor
Distributor; Pro-Billet; For Use With Chevy V8 Engines; Without Ignition Control Module; Magnetic Trigger; Mechanical Advance; With Iron Gear; Red Cap With HEI/Male Posts
MPN: 85551
This is our most popular performance distributor! The housing is machined from a billet of 6061-T6 aluminum on a state-of-the-art CNC machine producing exact tolerances. For high RPM stability, a 0.500 Inch steel shaft is supported by a sealed ball bearing and a long sintered bushing. This shaft also receives a QPQ coating for friction reduction and resistance to corrosion. A precision machined reluctor is attached to the shaft which triggers the magnetic pickup mounted in the housing. This high output magnetic pickup is the most accurate way to trigger your ignition. Plus, with no moving parts to wear or adjust, the pick up is maintenance free! Just above the pick up is MSD’s adjustable mechanical advance assembly. Different springs and stop bushings are supplied so you can tune an advance curve to match your application.
Condition: New
Recommended Use: Street/ Strip/ Track/ Off-Road
Spark Advance Type: Mechanical Advance
Spark Distribution Type: Magnetic Trigger
With Ignition Module: No
With Tach Drive: No
Drive Gear Type: Iron Gear
Includes Cap And Rotor: Yes
Cap Color: Red
Cap Type: HEI/ Male Posts
Coil In Cap: No
Features
- CNC Machined Billet Aluminum Housing And Billet Aluminum Base
- Easy To Adjust Mechanical Advance With Supplied Springs And Stop Bushings
- Maintenance Free Magnetic Pickup And Precision Reluctor Create Stable Trigger Signals Throughout The RPM Range
- Polished Steel Shaft Is QPQ Coated And Guided By A Sealed Ball Bearing, Advance Plate And Weights Are Fine Blanked From Chrome Moly Steel And QPQ Coated For Friction Reduction
- Mechanical Advance Assembly Can Be Locked Out For Crank Trigger Systems
- Advance Weight Pins Are Staked And TIG Welded To The Plate, Nylon Pads Ensure Smooth Operation Of The Advance Weights
- Limited 1 Year Warranty
| Specifications of MSD Ignition Distributor 85551 | |
| Cap Color | Red |
| Cap Type | HEI/ Male Posts |
| Coil In Cap | No |
| Condition | New |
| Drive Gear Type | Iron Gear |
| Includes Cap And Rotor | Yes |
| Recommended Use | Street/ Strip/ Track/ Off-Road |
| Spark Advance Type | Mechanical Advance |
| Spark Distribution Type | Magnetic Trigger |
| With Ignition Module | No |
| With Tach Drive | No |
1900-1900 Chevrolet Big Block 1965-1990 Gen IV
1900 Chevrolet Big Block 1965-1990 Gen IV
1900-1900 Chevrolet Big Block 1991-1995 Gen V
1900 Chevrolet Big Block 1991-1995 Gen V
1900-1900 Chevrolet Small Block 1955-1986
1900 Chevrolet Small Block 1955-1986
1900-1900 Chevrolet Small Block 1987-1998 (OE Roller)
1900 Chevrolet Small Block 1987-1998 (OE Roller)
1900-1900 Chevrolet Small Block 383
1900 Chevrolet Small Block 383
