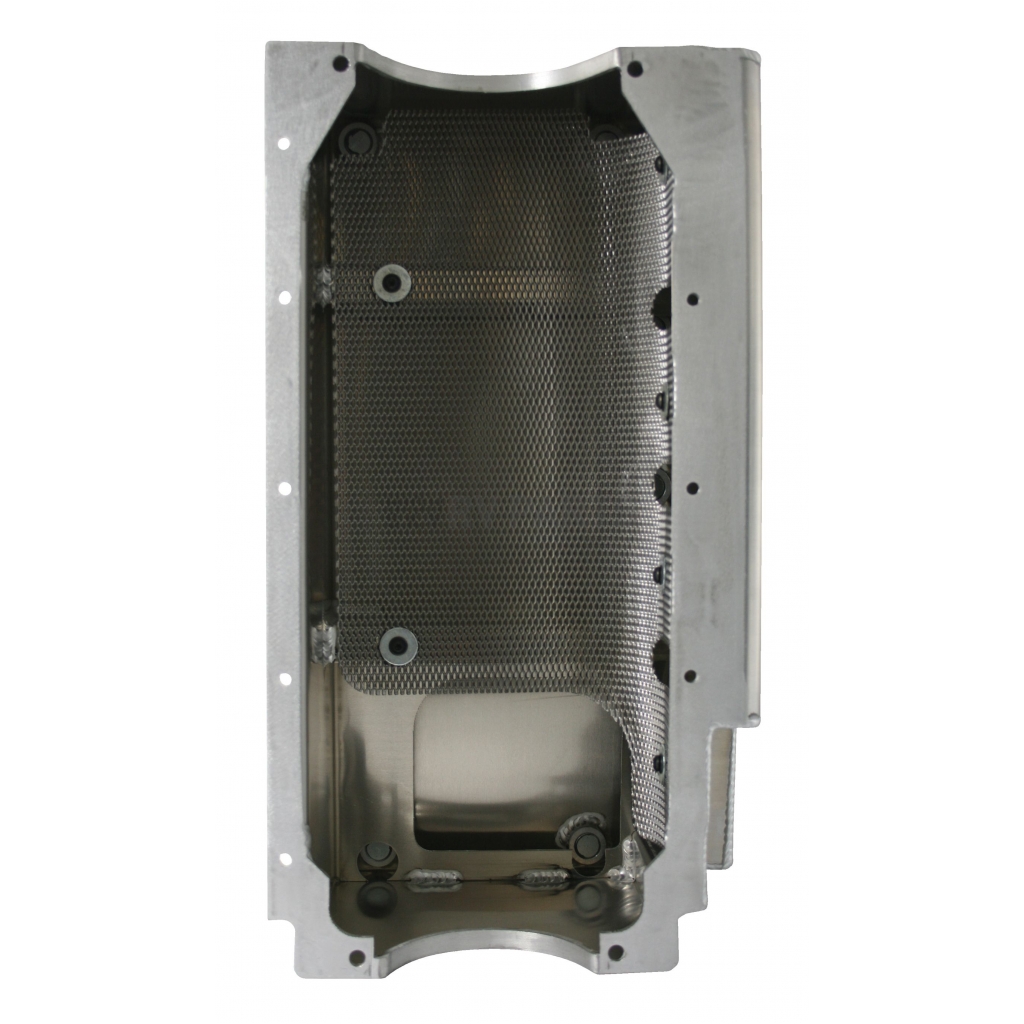

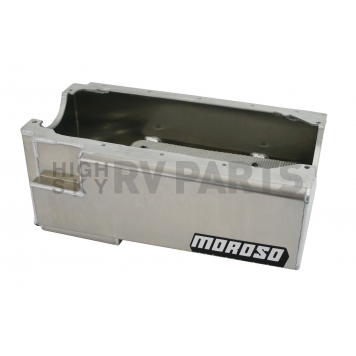

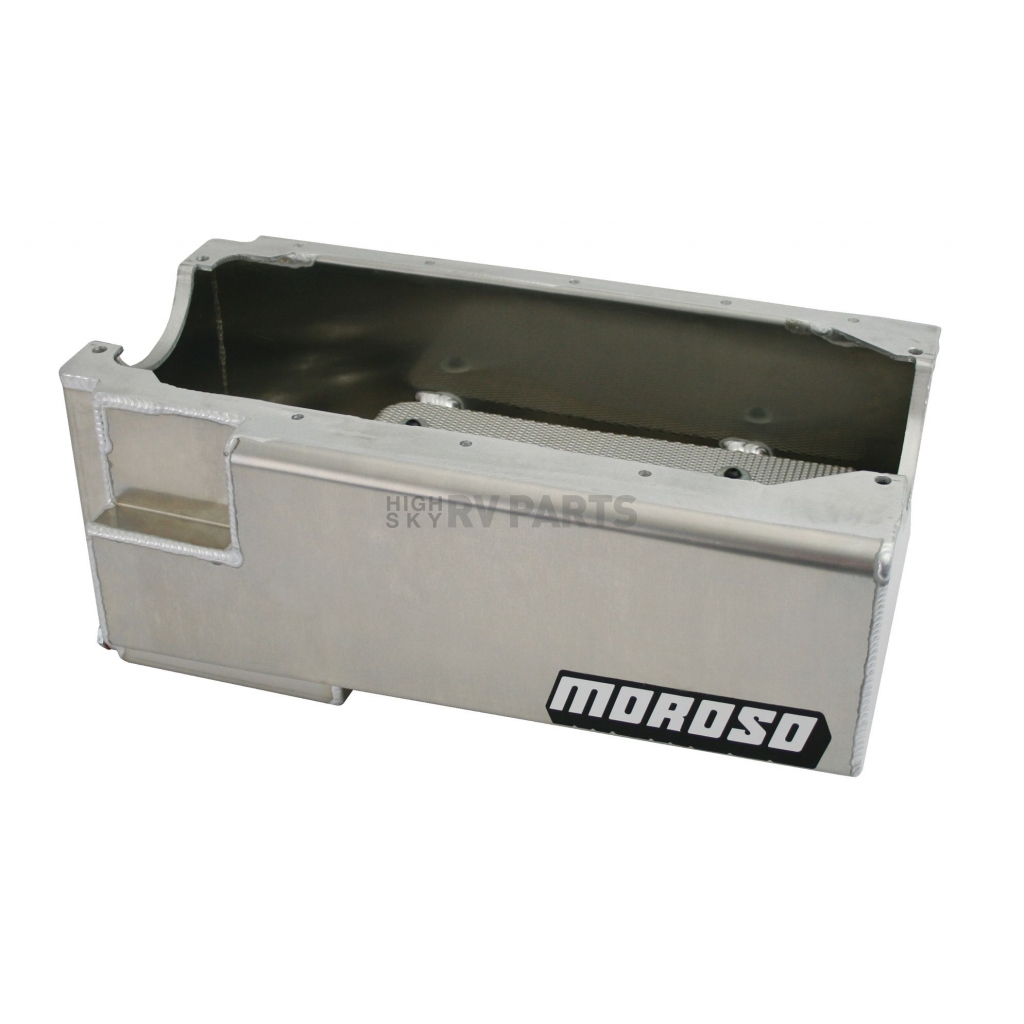

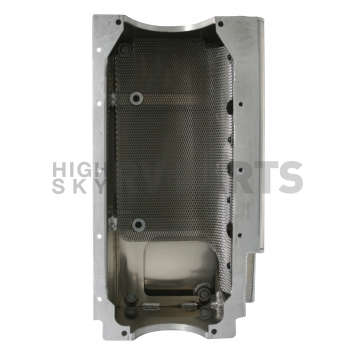

Moroso Performance Oil Pan - 21245

Brand: Moroso Performance
0 reviews
  • Have a product question? Ask us
  • Part Number: 21245
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 24
Retail: $1,339.79
Price: $1,275.99
You Save: $63.80
Baffled
No
Capacity
7 Quart
Color
Silver
Depth (IN)
8-1/4 Inch
Includes Pickup
Yes
Kicked Out
Yes
Material
Aluminum
Recommended Use
Race
Sump Style
Wet
Share this page

Moroso Performance Oil Pan

Oil Pan; Drag Racing; For Use With Dart Iron Eagle Small Block Chevy Engines; Street/ Strip; 7 Quart With Standard Volume Pump/ 8 Quart With High Volume Pump; With Windage Screen; Wet Sump; 8-1/4 Inch Rear Pan Depth/ 6-1/2 Inch Front Pan Depth; Aluminum

MPN: 21245

Moroso performance products was the first company to manufacture racing oil pans with deep and kicked out sumps, thereby solving the lubrication problems of countless racers. While different types of automated machinery is used to make the individual components, Moroso oil pans are precision welded, one at a time, by skilled craftsmen who take pride in their work. All Moroso oil pans and oiling components are engineered to be fully compatible with one another. This allows engine builders to select the best combination of equipment to suit their particular needs. It also eliminates the problems that often occur when using components from different manufacturers. Moroso offers a wide variety of oiling system accessories including Oil Pumps, Pickups, Windage Trays And Screens, Crankshaft Scrapers, Tanks, Breathers, Fittings, Filters, Drive Kits, Oil Pre-heaters, And Accumulators. Each is designed, developed and tested to work together as an integrated system with our oil pans. And each is built with the quality that you’ve come to expect from Moroso.
Recommended Use: Race
Color: Silver
Material: Aluminum
Capacity: 7 Quart
Depth (IN): 8-1/4 Inch
Sump Style: Wet
Baffled: No
Kicked Out: Yes
Includes Pickup: Yes

Features

  • Fully Fabricated Aluminum
  • Double Kick Out Design Ensures Large Stroke Clearance, Wide Main Cap Clearance And Maximum Horsepower
  • 1 Inch Deep Mini Sump Design Works With Moroso Cast And Billet Oil Pump Pickups
  • Internal Uni-Directional Screen And Pan Rail Bolt Access Bungs On Passenger Side
  • Limited 90 Day Warranty
Specifications of Moroso Performance Oil Pan - 21245
Baffled No
Capacity 7 Quart
Color Silver
Depth (IN) 8-1/4 Inch
Includes Pickup Yes
Kicked Out Yes
Material Aluminum
Recommended Use Race
Sump Style Wet

1900 Chevrolet Small Block 1955-1986

1900 Chevrolet Small Block 383
