Mishimoto Radiator MRADRHDR33

Brand: Mishimoto
0 reviews
  • Have a product question? Ask us
  • Part Number: MMRAD-RHD-R33
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by June 24
Retail: $405.29
Price: $385.99
You Save: $19.30
Color
Silver
Core Depth (IN)
1.57 Inch
Core Height (IN)
25.51 Inch
Core Length (IN)
15-3/4 Inch
Core Material
Aluminum
Core Rows
Three Tube
Finish
Raw
Flow Direction
Down Flow
Includes Fittings
Yes
Includes Mounting Hardware
Yes
Inlet Hose Location
Top Right
Share this page

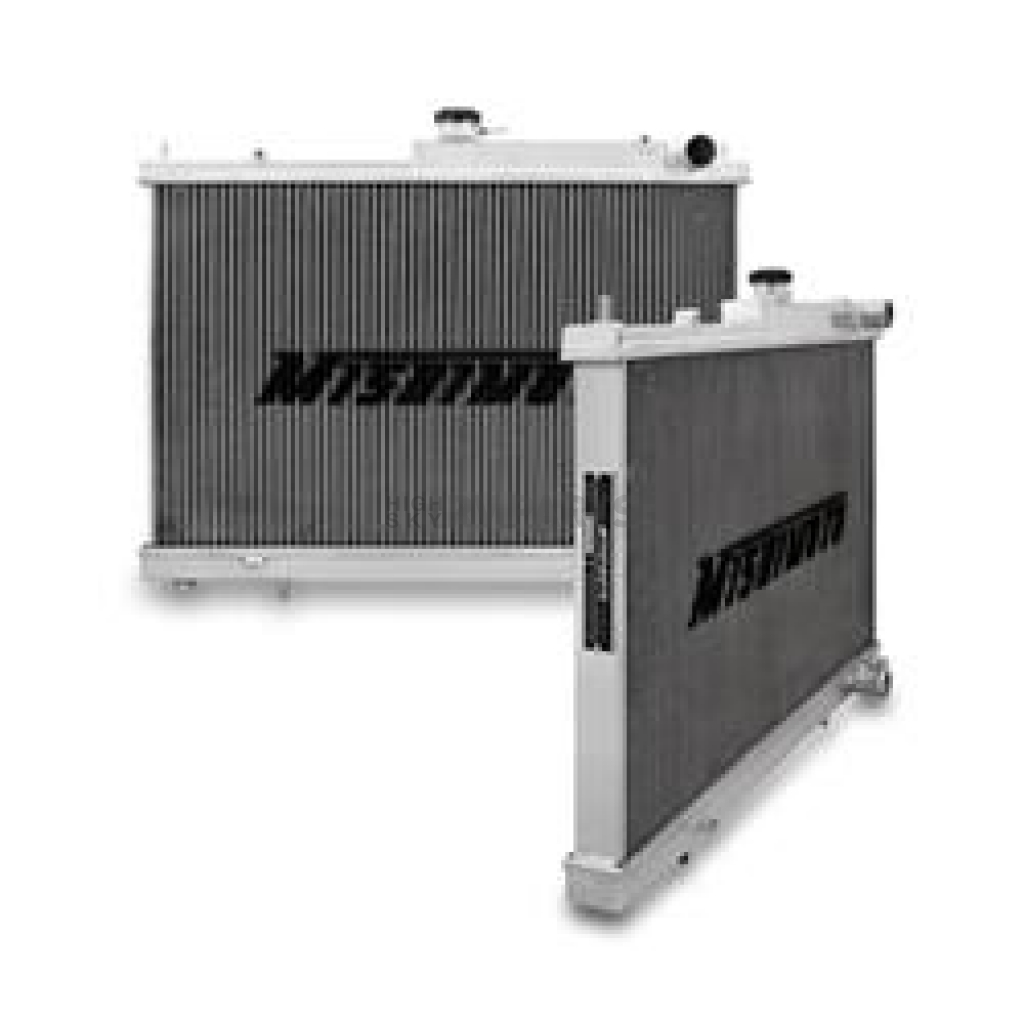

Mishimoto Radiator

Radiator; 26.4 Inch Length x 21.8 Inch Height x 2.07 Inch Depth Overall Dimension; 15-3/4 Inch Length x 25.51 Inch Height x 1.57 Inch Depth Core Dimension; Three Core Rows; Downflow; Aluminum Core; 1.4 Inch Inlet X 1.4 Inch Outlet; Single; With Radiator Cap/ Magnetic Drain Plug/ Filler Neck

MPN: MRADRHDR33

Every Mishimoto race aluminum radiator is designed and engineered to maximize cooling efficiency, boost engine functions, and most importantly, protect your car from overheating on and off the track. Lightweight, made from 100 Percent brazed aluminum, and cast end tanks TIG-welded for increased durability, Mishimoto race radiators will enhance the overall performance of your engine.Mishimoto provides free replacement for accidental damages, basically if you are in an accident and your mishimoto part is damaged, they will replace it free of charge when you provide pictures and a police report.
Flow Direction: Down Flow
Overall Length (IN): 26.4 Inch
Overall Height (IN): 21.8 Inch
Overall Depth (IN): 2.07 Inch
Core Rows: Three Tube
Core Length (IN): 15-3/4 Inch
Core Height (IN): 25.51 Inch
Core Depth (IN): 1.57 Inch
Core Material: Aluminum
Inlet Hose Location: Top Right
Inlet Size (IN): 1.4 Inch
Outlet Hose Location: Bottom Right
Outlet Size (IN): 1.4 Inch
Finish: Raw
Color: Silver
Tank Material: Aluminum
With Radiator Cap: Yes
With Transmission Cooler: No
With Engine Oil Cooler: No
Includes Fittings: Yes
Includes Mounting Hardware: Yes

Please refer the Technical Bulletins attached to the Product Manual tab

Features

  • Full Aluminum Construction Including Durable, Tig-welded End Tanks. Lightweight
  • Features A Three-row Efficient Brazed Aluminum Core
  • Increased Fluid Capacity And Optimal Heat Dissipation
  • Provides Efficient Temperature Reduction For Both Street And Track Use
  • Efficient Temperature Regulation For Both Stock And Modified Vehicles
  • Free Replacement For Accidental Damages
  • Limited Lifetime Warranty
Specifications of Mishimoto Radiator MRADRHDR33
Color Silver
Core Depth (IN) 1.57 Inch
Core Height (IN) 25.51 Inch
Core Length (IN) 15-3/4 Inch
Core Material Aluminum
Core Rows Three Tube
Finish Raw
Flow Direction Down Flow
Includes Fittings Yes
Includes Mounting Hardware Yes
Inlet Hose Location Top Right
Inlet Size (IN) 1.4 Inch
Outlet Hose Location Bottom Right
Outlet Size (IN) 1.4 Inch
Overall Depth (IN) 2.07 Inch
Overall Height (IN) 21.8 Inch
Overall Length (IN) 26.4 Inch
Tank Material Aluminum
With Engine Oil Cooler No
With Radiator Cap Yes
With Transmission Cooler No

1993 Nissan Skyline
1994 Nissan Skyline
1995 Nissan Skyline
1996 Nissan Skyline
1997 Nissan Skyline
1998 Nissan Skyline
1999 Nissan Skyline
2000 Nissan Skyline
2001 Nissan Skyline
2002 Nissan Skyline
