Advanced Clutch Set Heavy Duty Rigid 6 Paddle - T1R-F11

Authorized Dealer
Brand: Advanced Clutch Advanced Clutch
0 reviews
  • Have a product question? Ask us
  • Part Number: T1R-F11
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 18
Retail: $1,972.94
Price: $1,878.99
You Save: $93.95
Disc Diameter
 10-1/2 Inch
Disc Friction Face Design
 6 Paddle
Disc Friction Material
 Ceramic
Disc Hub Design
 Rigid
Includes Alignment Tool
 Yes
Input Shaft Size
 1 Inch X 23 Spline
Number Of Friction Discs
 2 Disc
Pressure Plate Design
 Heavy Duty
Torque Holding Capacity
 1141 Feet/Pound
Share this page

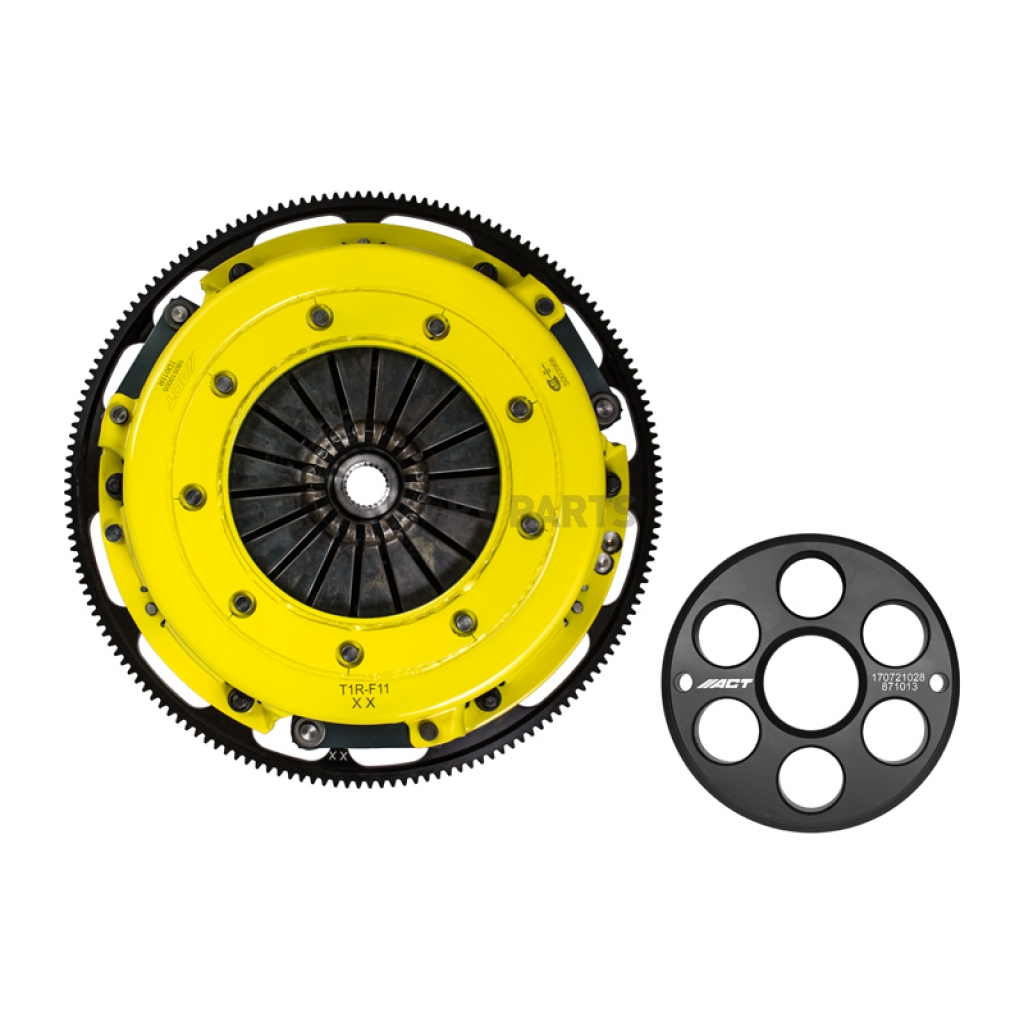

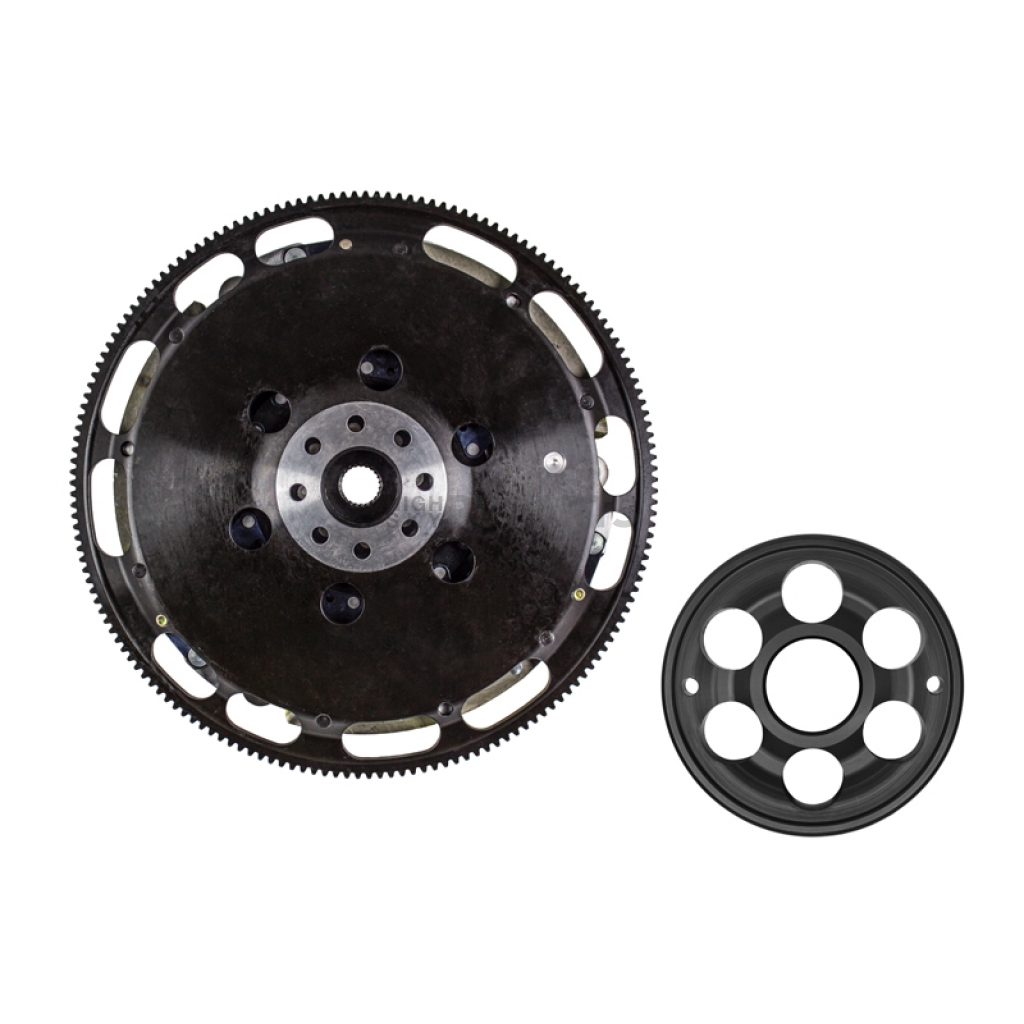

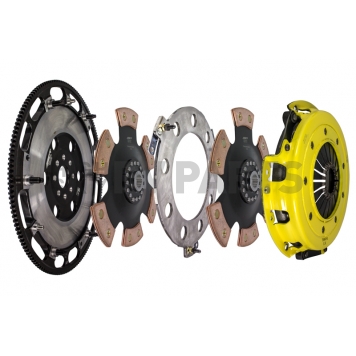

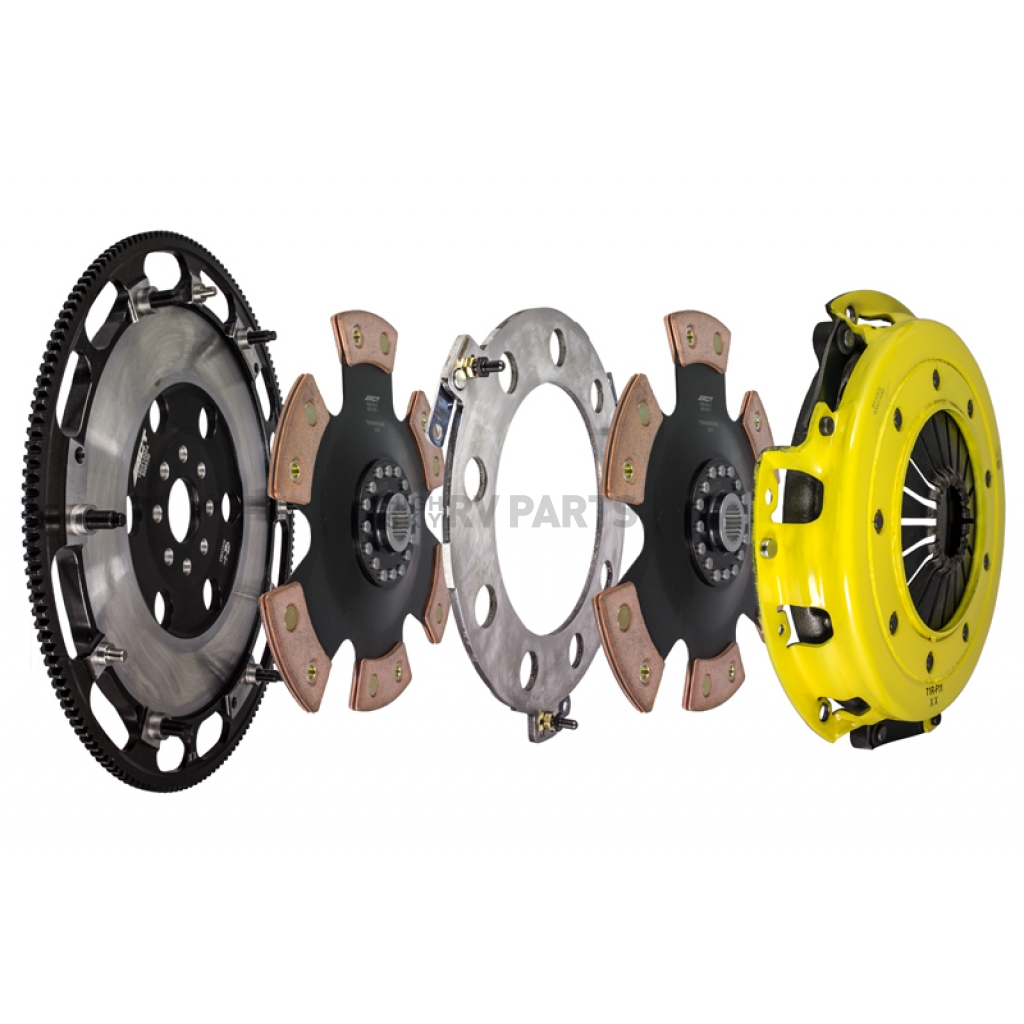

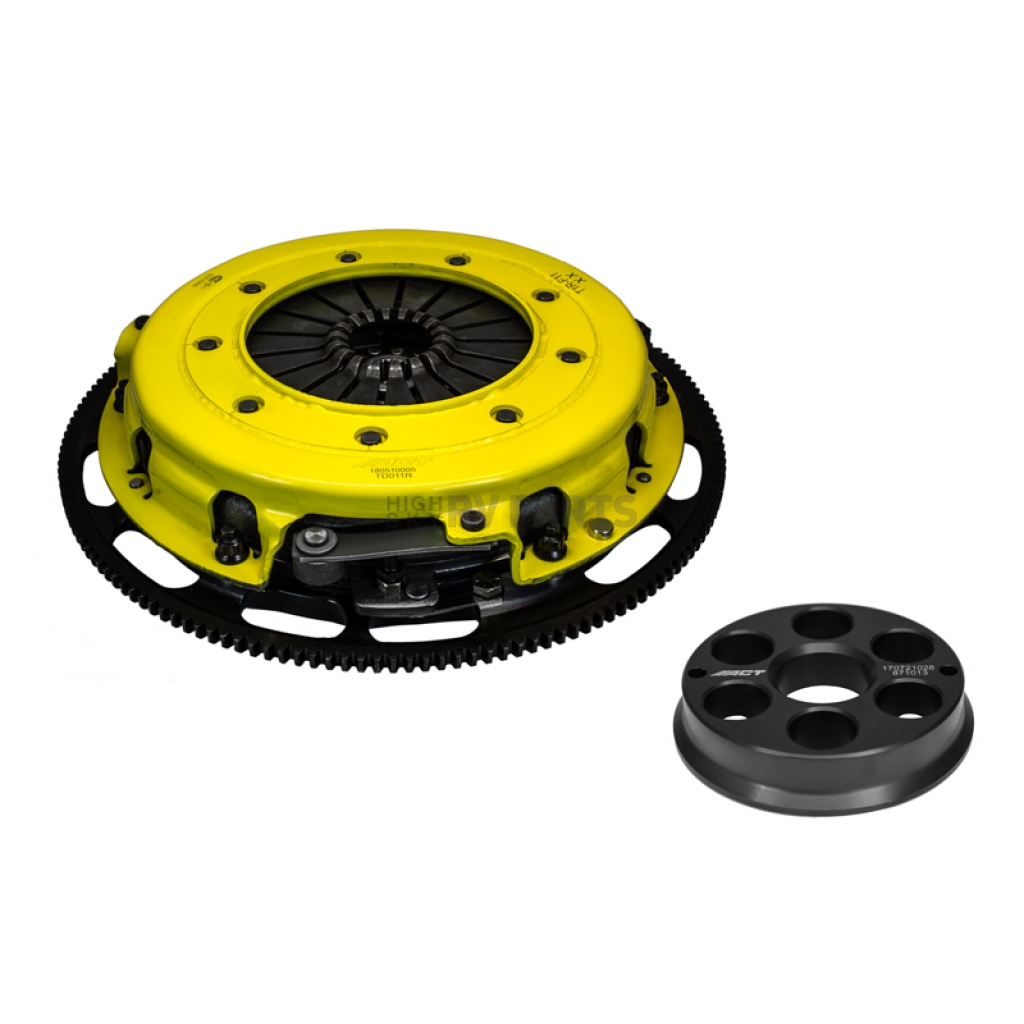

Clutch Set; Heavy Duty/ Race; 10.5 Inch Clutch Diameter; 1 Inch x 23 Spline Input Shaft; Diaphragm; Dual Disc/ Ceramic Friction Material; 6 Paddle Design/ Rigid Hub; With Flywheel/ Clutch Disc/ Floater/ Pressure Plate/ Alignment Tool

MPN: T1R-F11

Cutch kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Pressure Plate Design: Heavy Duty
Input Shaft Size: 1 Inch X 23 Spline
Number Of Friction Discs: 2 Disc
Disc Friction Material: Ceramic
Disc Diameter: 10-1/2 Inch
Disc Hub Design: Rigid
Disc Friction Face Design: 6 Paddle
Torque Holding Capacity: 1141 Feet/Pound
Includes Alignment Tool: Yes

Features

  • Feel: Light To Moderate Pedal Effort, Aggressive Engagement, Increased Gear Rattle
  • Life: Moderate Friction Life, Extended By Exclusive Diaphragm Design, Rigid Design May Increase Spline Wear
  • Quality: Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
  • Recommended For Race Use
  • 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
  • Limited 12 Month Warranty
Specifications of Advanced Clutch Set Heavy Duty Rigid 6 Paddle - T1R-F11
Disc Diameter  10-1/2 Inch
Disc Friction Face Design  6 Paddle
Disc Friction Material  Ceramic
Disc Hub Design  Rigid
Includes Alignment Tool  Yes
Input Shaft Size  1 Inch X 23 Spline
Number Of Friction Discs  2 Disc
Pressure Plate Design  Heavy Duty
Torque Holding Capacity  1141 Feet/Pound

2007 Ford Mustang
2008 Ford Mustang
2009 Ford Mustang
2010 Ford Mustang
2011 Ford Mustang
2012 Ford Mustang
2013 Ford Mustang
2014 Ford Mustang
