Mishimoto Radiator MRADEVO01H

Brand: Mishimoto

0 reviews

Have a product question? Ask us
Part Number: MMRAD-EVO-01H
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by July 18

Retail: $444.14

Price: $422.99

You Save: $21.15

Color

Silver

Core Depth (IN)

2.05 Inch

Core Height (IN)

15.2 Inch

Core Length (IN)

13.38 Inch

Core Material

Aluminum

Core Rows

Three Tube

Flow Direction

Down Flow

Includes Fittings

Includes Mounting Hardware

Inlet Hose Location

Top Left

Inlet Size (IN)

1.38 Inch

Share this page

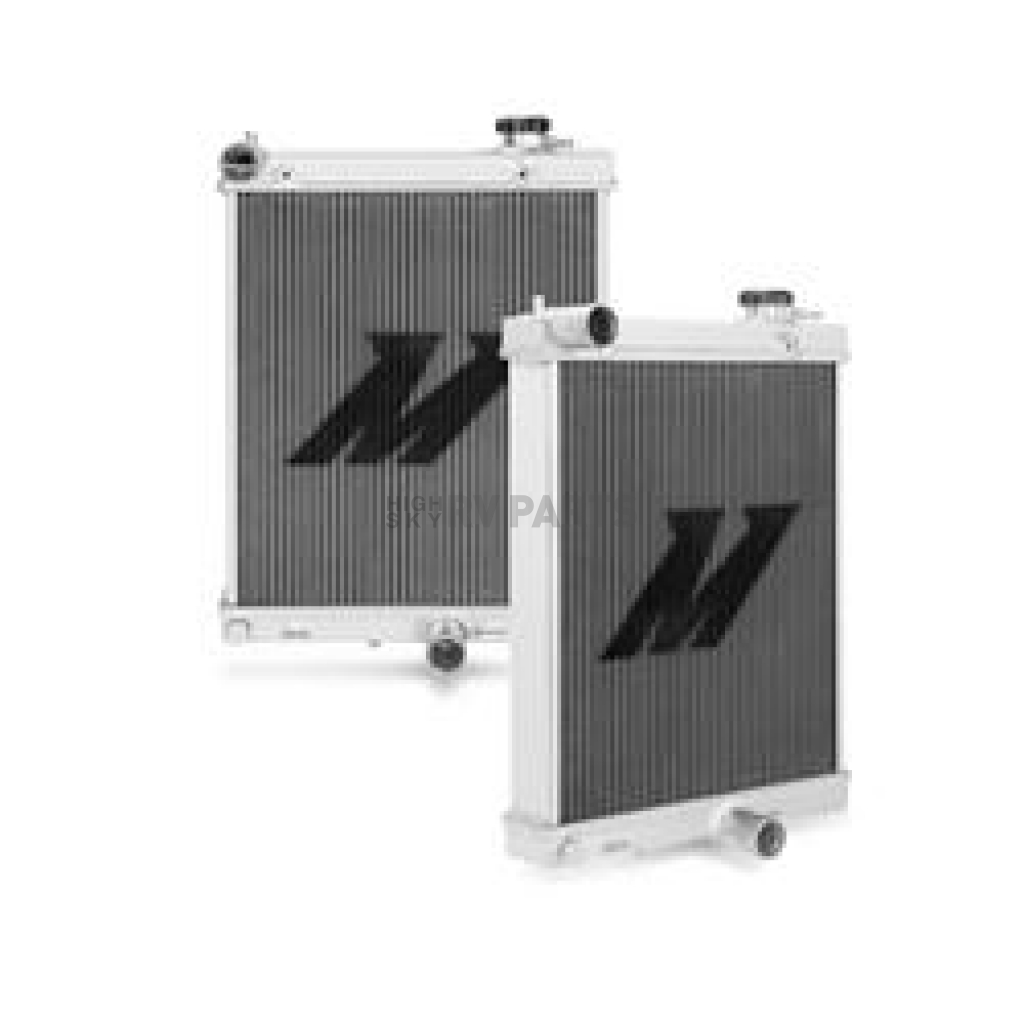

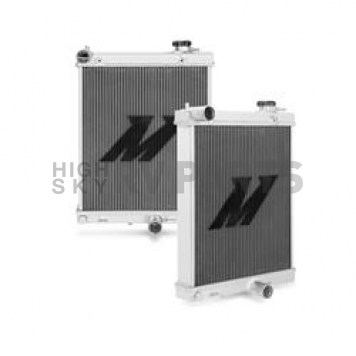

Mishimoto Radiator

Radiator; 14 Inch Length x 19-1/2 Inch Height x 4.38 Inch Depth Overall Dimension; 13.38 Inch Length x 15.2 Inch Height x 2.05 Inch Depth Core Dimension; Three Core Rows; Downflow; Aluminum Core; 1.38 Inch Inlet x 1.38 Inch Outlet; Single; With Magnetic Drain Plug/ Radiator Cap/ Upper Radiator Aluminum Stay/ Filler Neck

MPN: MRADEVO01H

Freeing up engine bay space for a front-facing or large turbocharger can be hard in the Mitsubishi Lancer Evolution. Keep your high-horsepower Evo cool with the Mishimoto Lancer Evolution 7/8/9 Half-Size Performance Aluminum Radiator. This radiator features full-aluminum construction with precision TIG-welded end tanks for superior heat dissipation and durability. The large 2.05 Inch thick brazed aluminum core provides clearance for upgraded turbocharger setups while maintaining optimal coolant temperatures for runs at the drag strip or through the autocross course. This radiator features a unique internal baffle that provides superior fluid dispersion resulting in lower coolant temperatures. The radiator also includes a Mishimoto 1.3 Bar High-Pressure Radiator Cap that effectively raises the boiling point of coolant to create a safer and more efficient system. The Mishimoto Lancer Evolution Half-Size Performance Aluminum Radiator works perfectly with factory coolant hoses or a Mishimoto Silicone Radiator Hose Kit. Installing a capable fan solution is easy with the Mishimoto radiator thanks to the incorporated stock shroud-mounting points. Optionally a slim fan can be installed for improved clearance. This aluminum radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.Mishimoto provides free replacement for accidental damages, basically if you are in an accident and your mishimoto part is damaged, they will replace it free of charge when you provide pictures and a police report.

Flow Direction: Down Flow

Overall Length (IN): 14 Inch

Overall Height (IN): 19-1/2 Inch

Overall Depth (IN): 4.38 Inch

Core Rows: Three Tube

Core Length (IN): 13.38 Inch

Core Height (IN): 15.2 Inch

Core Depth (IN): 2.05 Inch

Core Material: Aluminum

Inlet Hose Location: Top Left

Inlet Size (IN): 1.38 Inch

Outlet Hose Location: Bottom Top

Outlet Size (IN): 1.38 Inch

Color: Silver

Tank Material: Aluminum

With Radiator Cap: Yes

With Transmission Cooler: No

With Engine Oil Cooler: No

Includes Fittings: Yes

Includes Mounting Hardware: No

Please refer the Technical Bulletins attached to the Product Manual tab

Features

Half-size Design Provides Clearance For Large Twin-scroll And Forward-facing Turbocharger Setups
All-aluminum Construction With Tig-welded End Tanks
Thick Brazed Aluminum Core Provides Optimal Cooling And Superior Durability
Internal Baffle Provides Exceptional Fluid Dispersion Throughout The Core And Optimal Cooling Efficiency
Free Replacement For Accidental Damages
Limited Lifetime Warranty

Specifications of Mishimoto Radiator MRADEVO01H
Color	Silver
Core Depth (IN)	2.05 Inch
Core Height (IN)	15.2 Inch
Core Length (IN)	13.38 Inch
Core Material	Aluminum
Core Rows	Three Tube
Flow Direction	Down Flow
Includes Fittings	Yes
Includes Mounting Hardware	No
Inlet Hose Location	Top Left
Inlet Size (IN)	1.38 Inch
Outlet Hose Location	Bottom Top
Outlet Size (IN)	1.38 Inch
Overall Depth (IN)	4.38 Inch
Overall Height (IN)	19-1/2 Inch
Overall Length (IN)	14 Inch
Tank Material	Aluminum
With Engine Oil Cooler	No
With Radiator Cap	Yes
With Transmission Cooler	No
