Mishimoto Intercooler - MMINT-CAM4-16KWBK

Brand: Mishimoto
0 reviews
  • Have a product question? Ask us
  • Part Number: MMINT-CAM4-16KWBK
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 17
Retail: $1,609.64
Price: $1,532.99
You Save: $76.65
Color
Silver
Core Depth (IN)
2.09 Inch
Core Height (IN)
17.15 Inch
Core Width (IN)
21.65 Inch
Inlet Size (IN)
2.4 Inch
Material
Aluminum
Outlet Size (IN)
2.4 Inch
Type
Air To Air
Share this page

Mishimoto Intercooler

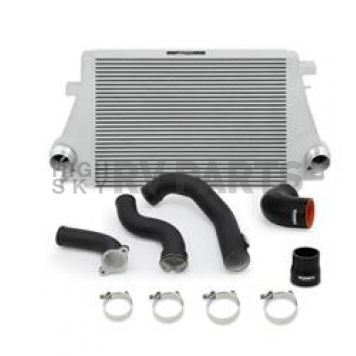

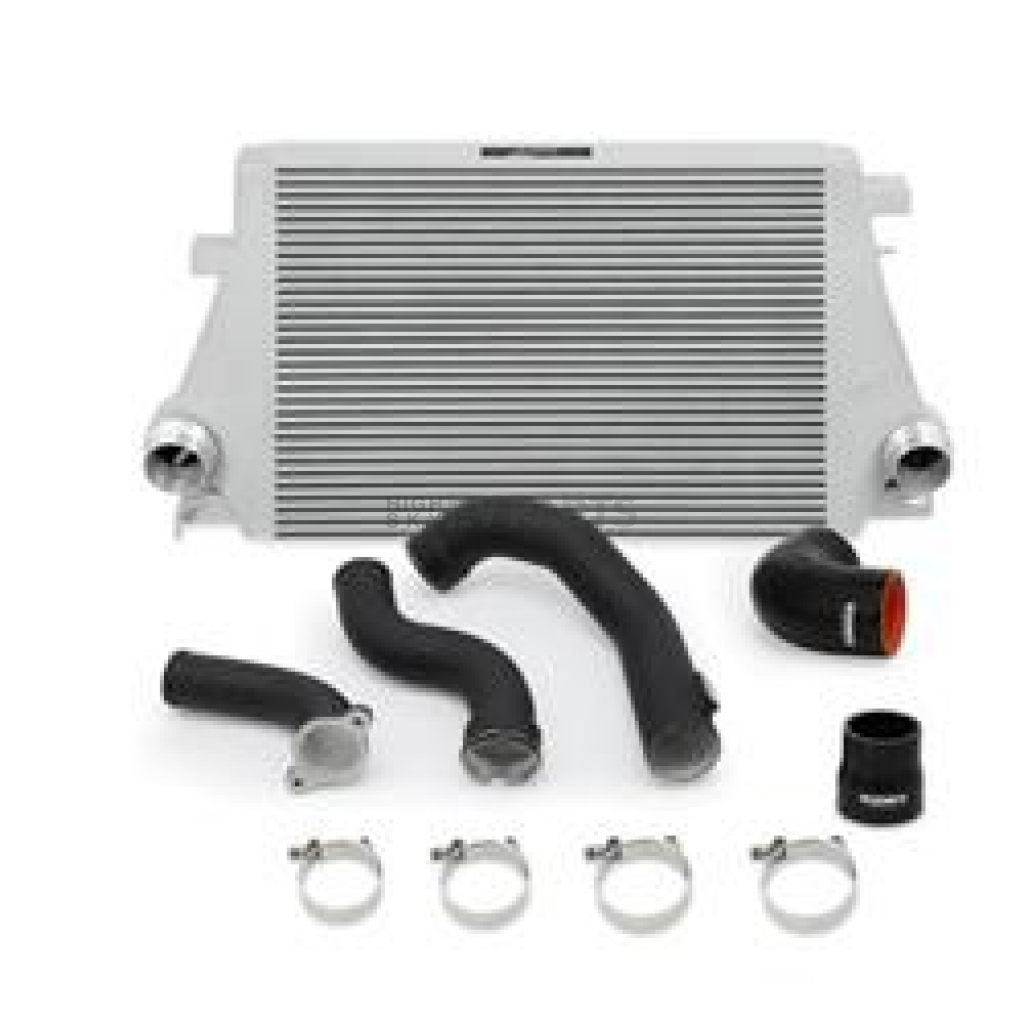

Intercooler; Air To Air; 21.65 Inch Width x 17.15 Inch Height x 2.09 Inch Thick Core Dimension; 2.4 Inch Inlet Diameter; 2.4 Inch Outlet Diameter; Silver; With Three Wrinkle Black Aluminum Pipes/ Two Spring Clips/ Two Silicone Couplers/ Four T-Bolt Clamps/ Three Tree Clips

MPN: MMINTCAM41

2016+ Chevrolet Camaro 2.0T or 2013+ Cadillac ATS a complete overhaul with the Mishimoto Performance Intercooler Kit. Our bar-and-plate constructed core picks up the slack from the stock unit by offering increased heat rejection characteristics, as well as a boost in airflow. On top of the new construction, our design increases the internal core volume by 45 Percent, and offers a whopping 239 Percent gain in external fin surface area, making sure that the charged air running through your LTG is as chilled as possible.
Type: Air To Air
Inlet Size (IN): 2.4 Inch
Outlet Size (IN): 2.4 Inch
Core Width (IN): 21.65 Inch
Core Height (IN): 17.15 Inch
Core Depth (IN): 2.09 Inch
Color: Silver
Material: Aluminum

Features

  • 2 Inch Thick Intercooler Design Optimized For Maximum Airflow With Minimal Pressure Drop
  • 45 Percent Increase In Internal Core Volume And 239 Percent Increase In External Fin Surface Area
  • 78 Percent Increase In Core Size
  • Cast End Tanks With Internal Air Diverter Provide Optimal Airflow Through Intercooler
  • 30 Percent Greater Internal Volume Than Stock; 10 Percent Increase In Flow
  • Pre-Welded NPT Port On Cold-Side Pipe Allows For Quick Install Of Aftermarket Meth Injection Or Boost Gauge
  • Utilizes Stock Quick-Disconnect Fittings For Easy Installation
  • Limited Lifetime Warranty
Specifications of Mishimoto Intercooler - MMINT-CAM4-16KWBK
Color Silver
Core Depth (IN) 2.09 Inch
Core Height (IN) 17.15 Inch
Core Width (IN) 21.65 Inch
Inlet Size (IN) 2.4 Inch
Material Aluminum
Outlet Size (IN) 2.4 Inch
Type Air To Air

2013 Cadillac ATS
2014 Cadillac ATS
2015 Cadillac ATS
2016 Cadillac ATS
2017 Cadillac ATS
2018 Cadillac ATS
2019 Cadillac ATS

2016 Chevrolet Camaro
2017 Chevrolet Camaro
2018 Chevrolet Camaro
2019 Chevrolet Camaro
2020 Chevrolet Camaro
