Mishimoto Intercooler - MMINT-F150-11BK

Brand: Mishimoto

Have a product question? Ask us
Part Number: MMINT-F150-11BK
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by June 20

Retail: $1,377.59

Price: $1,311.99

You Save: $65.60

Color

Black

Construction

Bar And Plate

Core Height (IN)

19 Inch

Core Width (IN)

18 Inch

Finish

Powder Coated

Inlet Size (IN)

2-1/2 Inch

Inlet/Outlet Neck Location

Center

Material

Aluminum

Outlet Size (IN)

3 Inch

Overall Depth (IN)

6-3/4 Inch

Overall Height (IN)

19 Inch

Share this page

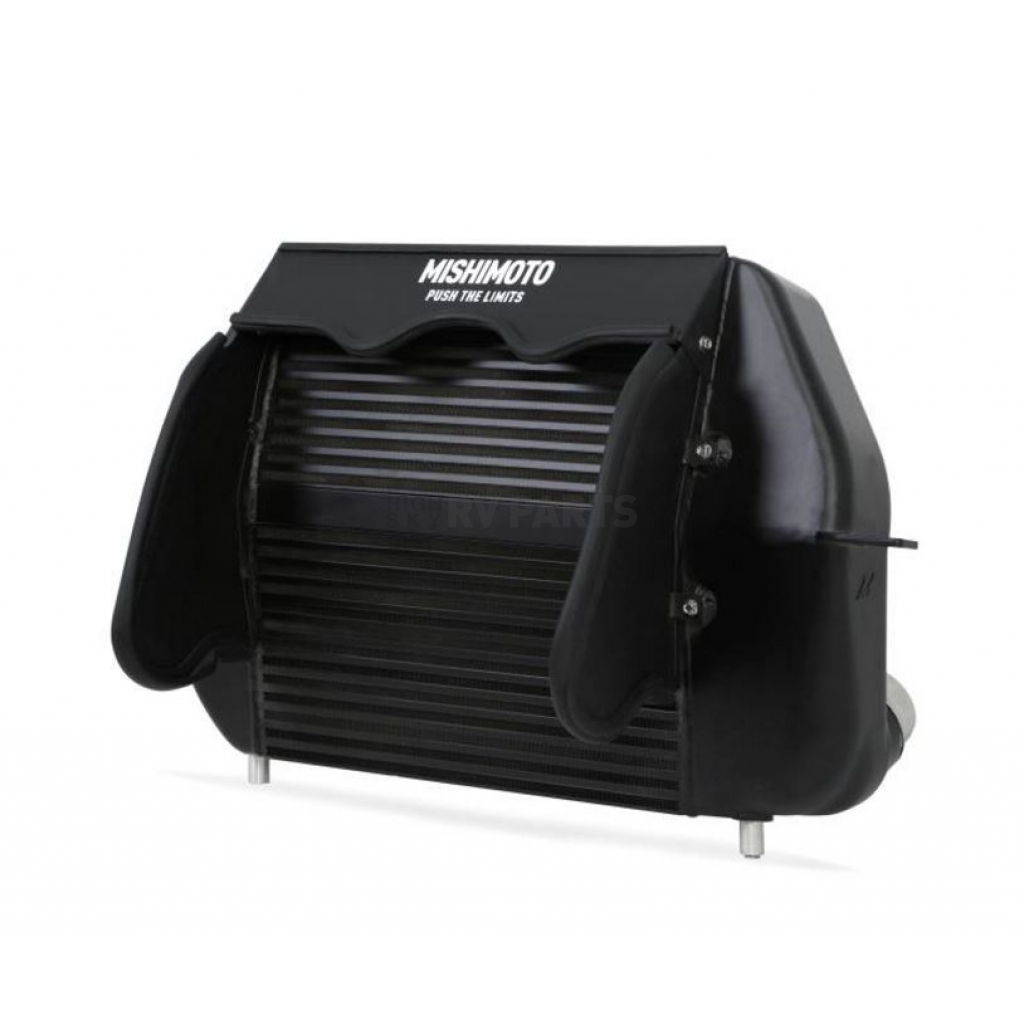

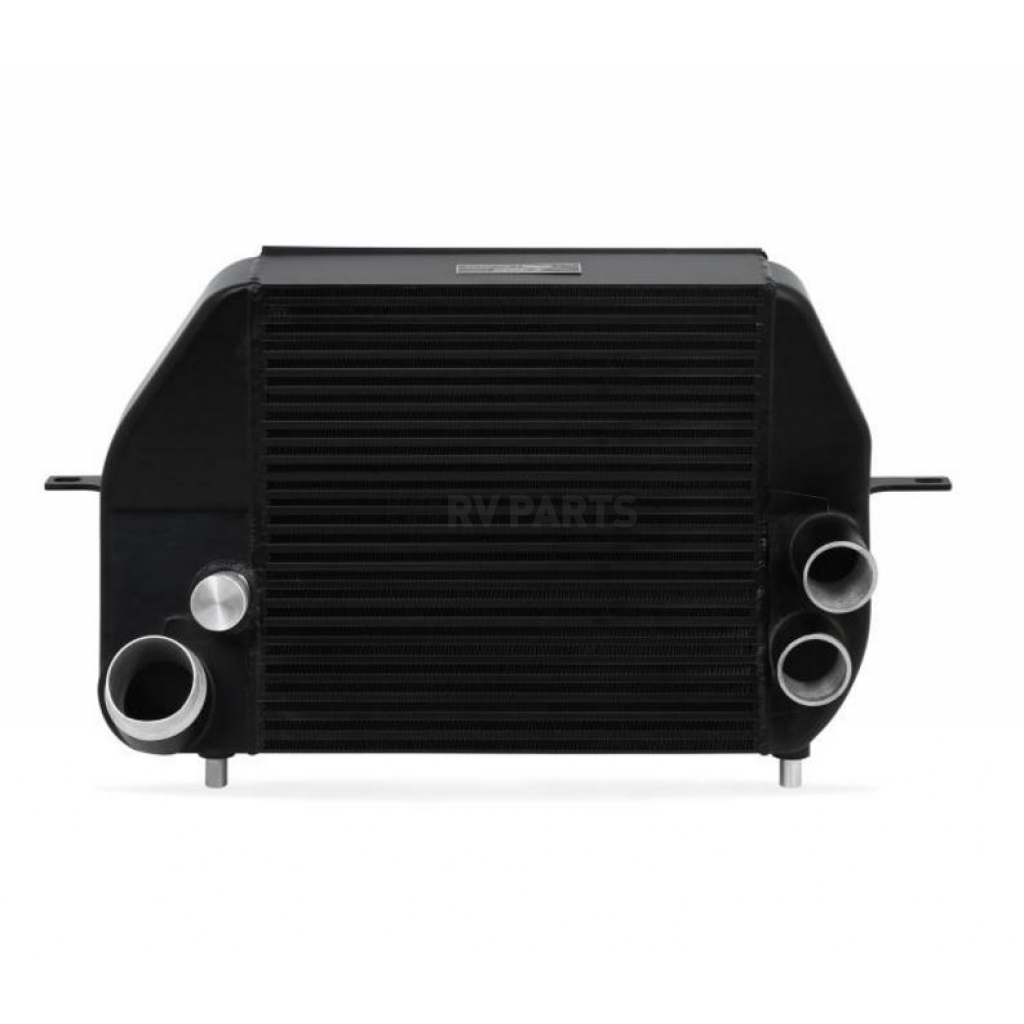

Mishimoto Intercooler

Intercooler; Air To Air; 27.6 Inch Width x 19 Inch Height x 6-3/4 Inch Thick Overall Dimension; 18 Inch Width x 19 Inch Height Core Dimension; 2.5 Inch Inlet; 2.5 Inch Outlet; Black; With Air Diversion Panel/ CNC Bypass Bung/ Mounting Hardware

MPN: NTF15011BK

The small, factory intercooler sits in the bottom part of a spacious and unconventionally shaped cavity behind the front bumper, which means there’s a lot of wasted space there that could be used for cooling improvements. That’s why the Mishimoto intercooler has been cleverly engineered to feature a unique angled design to take full advantage of the space for maximum performance, boasting an 88 Percent increase in core size, a 66 Percent increase in internal core volume, and a 40 Percent increase in external fin surface area. Our all-aluminum, TIG-welded core is as tough and durable as the rest of your truck, and incorporates an NPT-threaded bung on the bottom. set of air diversion plates to guide ambient air directly through the core for the best performance possible. Speaking of performance, this intercooler has been dyno-tested for maximum gains using both the stock tune and a specialized tune to optimize the ECU. The Mishimoto intercooler lowers intake Temperatures by 50 Degree Fahrenheit compared to the factory part.

Type: Air To Air

Overall Width (IN): 27.6 Inch

Overall Height (IN): 19 Inch

Overall Depth (IN): 6-3/4 Inch

Construction: Bar And Plate

Inlet Size (IN): 2-1/2 Inch

Outlet Size (IN): 3 Inch

Core Width (IN): 18 Inch

Core Height (IN): 19 Inch

Inlet/Outlet Neck Location: Center

Finish: Powder Coated

Color: Black

Material: Aluminum

Features

Constructed Of 100 Percent Aluminum And Feature Cast End Tanks To Handle High Boost Pressures
Significantly Reduce Intake Air Temperatures To Make Sure You’re Getting The Most Power For Your Boost
All-Aluminum, TIG-Welded Construction
88 Percent Increase In Core Size, 66 Percent Increase In Internal Core Volume And 40 Percent Increase In External Fin Surface Area
Stock Location Prevents Airflow Blockage To Radiator And AC Condenser
Easy Bolt-In Installation
Limited Lifetime Warranty

Specifications of Mishimoto Intercooler - MMINT-F150-11BK
Color	Black
Construction	Bar And Plate
Core Height (IN)	19 Inch
Core Width (IN)	18 Inch
Finish	Powder Coated
Inlet Size (IN)	2-1/2 Inch
Inlet/Outlet Neck Location	Center
Material	Aluminum
Outlet Size (IN)	3 Inch
Overall Depth (IN)	6-3/4 Inch
Overall Height (IN)	19 Inch
Overall Width (IN)	27.6 Inch
Type	Air To Air
