Mile Marker Winch - 2500 Pound Electric - 7750105BW
Color
Black
Drive Gear Type
Planetary
Drum Material
Steel
Electrical Control Type
Integrated Solenoid
Estimated Install Time (Hours)
2
Fairlead Type
Roller
Free Spooling
Yes
Gear Reduction Ratio
10.042361111
Includes Mounting Hardware
No
Line Diameter (IN)
3/16 Inch
Line Length (FT)
50 Feet
Share this page
Mile Marker Winch

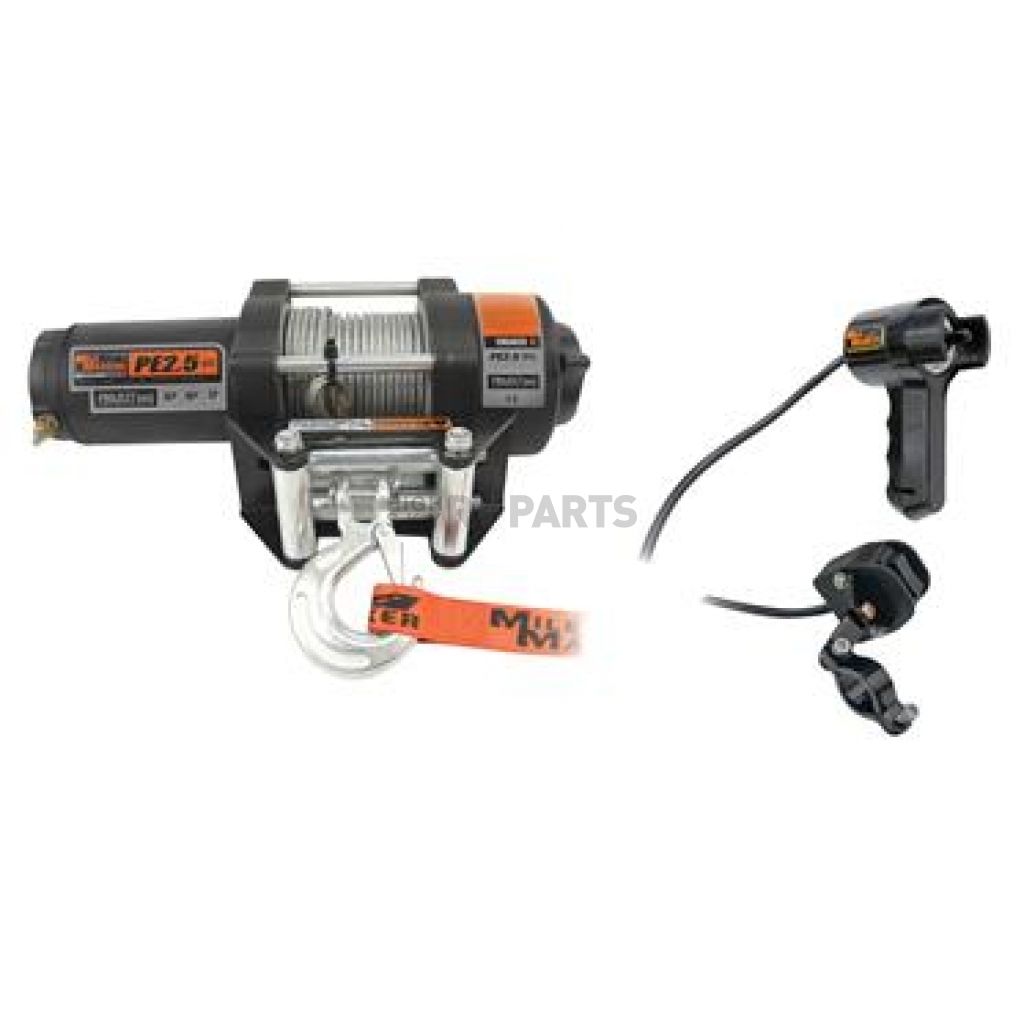

Winch; PE2.5; Vehicle Mounted; Waterproof ATV/UTV Winch; 12 Volt Electric; 2500 Pound Line Pull Capacity; 50 Foot Wire Rope; Roller Fairlead; Wired Handheld and Handlebar Remotes; Integrated Solenoid; Planetary Gear Drive
MPN: 7750105BW
Mile Marker’s new lineup ATV and UTV winches have been totally redesigned and now boast top of the line recovery speeds and a new braking system. Mile Marker has also developed a new 300 Ampere rated solenoid giving maximum duty cycle to these bantam size power houses. With the all-metal, 3-stage planetary gear train, 300-amp solenoid, high-output, permanent magnet motor and marine grade remote control connectors, the PE2.5 (es) provides the durability and reliability you can depend on in the most extreme situations.
Winch Rating: 2500 Pound
Recommended Use: ATV/ UTV
Type: Electric
Mount Type: Fixed Mount
Voltage: 12 Volt
Motor Horsepower: 2 Horsepower
Thermal Shutoff: No
Gear Reduction Ratio: 10.042361111
Free Spooling: Yes
Operation Type: Power
Line Length (FT): 50 Feet
Line Material: Steel
Fairlead Type: Roller
Remote Type: Wired
Includes Mounting Hardware: No
Color: Black
Mounting Pattern Size: 4.88 Inch Length X 3 Inch Width
Max Amp Draw: 212 Amp Draw At 2500 Pound
Line Speed At Max Pull: 7.5 Feet Per Minute At 2500 Pound
Electrical Control Type: Integrated Solenoid
Motor Type: Permanent Magnet
Drive Gear Type: Planetary
Line Diameter (IN): 3/16 Inch
Mounting Hole Quantity: 4
Drum Material: Steel
Estimated Install Time (Hours): 2
Features
- Fast Line Speeds. Redesigned Braking System
- All Metal Planetary Gearing
- Submersible, 300 Ampere Rated Solenoid
- Center Focused Drum; Fast Line Speeds
- Free Spooling
- Roller Fairlead; Load Holding Brake
- Corrosion-Resisitant
- Marine Grade Remote Control Connectors
- Limited 2 Year Warranty
Specifications of Mile Marker Winch - 2500 Pound Electric - 7750105BW | |
Color | Black |
Drive Gear Type | Planetary |
Drum Material | Steel |
Electrical Control Type | Integrated Solenoid |
Estimated Install Time (Hours) | 2 |
Fairlead Type | Roller |
Free Spooling | Yes |
Gear Reduction Ratio | 10.042361111 |
Includes Mounting Hardware | No |
Line Diameter (IN) | 3/16 Inch |
Line Length (FT) | 50 Feet |
Line Material | Steel |
Line Speed At Max Pull | 7.5 Feet Per Minute At 2500 Pound |
Max Amp Draw | 212 Amp Draw At 2500 Pound |
Motor Horsepower | 2 Horsepower |
Motor Type | Permanent Magnet |
Mount Type | Fixed Mount |
Mounting Hole Quantity | 4 |
Mounting Pattern Size | 4.88 Inch Length X 3 Inch Width |
Operation Type | Power |
Recommended Use | ATV/ UTV |
Remote Type | Wired |
Thermal Shutoff | No |
Type | Electric |
Voltage | 12 Volt |
Winch Rating | 2500 Pound |
