Mile Marker Winch - 2500 Pound Electric - 7753105BW

Brand: Mile Marker

Have a product question? Ask us
Part Number: 77-53105BW
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by June 06

Retail: $479.84

Price: $456.99

You Save: $22.85

Color

Black

Drive Gear Type

Planetary

Drum Material

Steel

Electrical Control Type

Integrated Solenoid

Estimated Install Time (Hours)

Fairlead Type

Hawse

Free Spooling

Gear Reduction Ratio

10.042361111

Includes Mounting Hardware

Line Diameter (IN)

3/16 Inch

Line Length (FT)

50 Feet

Share this page

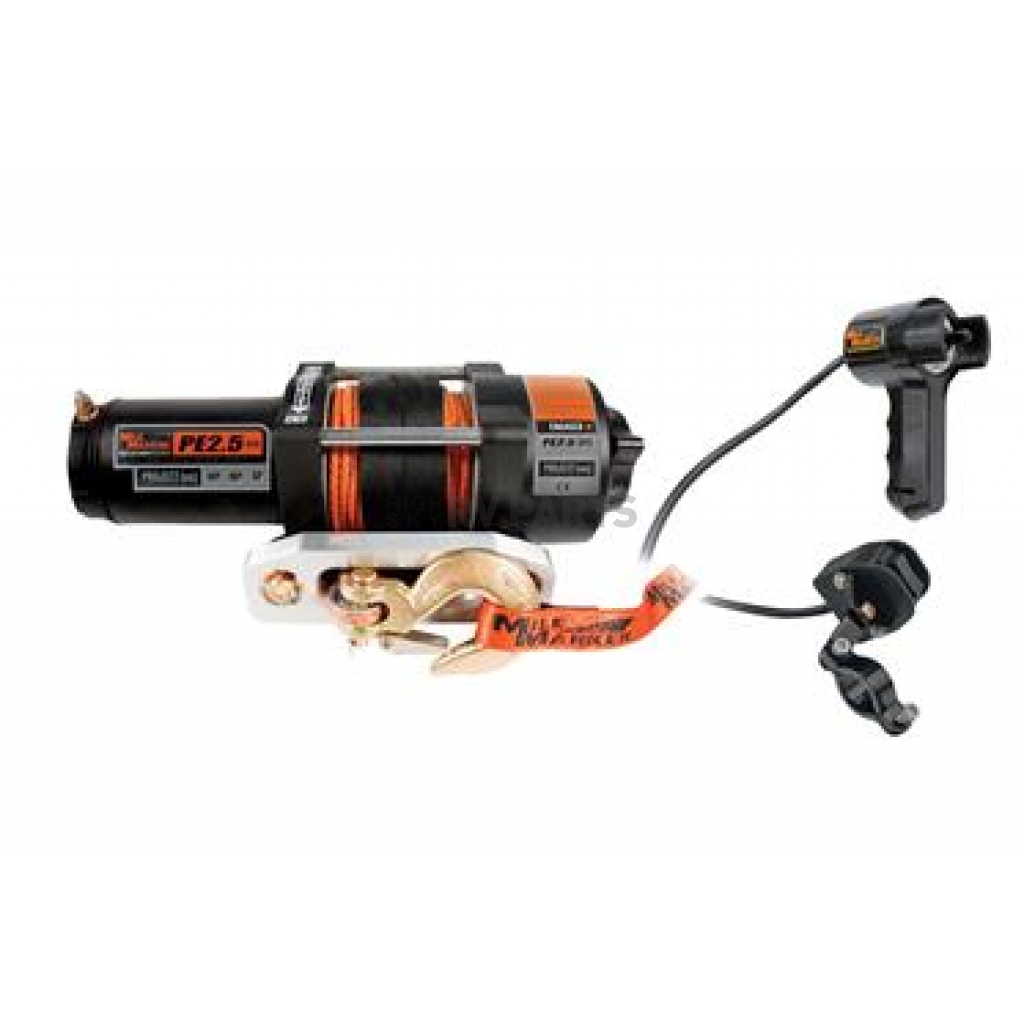

Mile Marker Winch

Winch; PE2.5; Vehicle Mounted; Waterproof ATV/UTV Winch; 12 Volt Electric; 2500 Pound Line Pull Capacity; 50 Foot Synthetic Rope; Roller Fairlead; Wired Handheld and Handlebar Remotes; Integrated Solenoid; Planetary Gear Drive

MPN: 7753105BW

Mile Marker’s new lineup ATV and UTV winches have been totally redesigned and now boast top of the line recovery speeds and a new braking system. Mile Marker has also developed a new 300 Ampere rated solenoid giving maximum duty cycle to these bantam size power houses. With the all-metal, 3-stage planetary gear train, 300-amp solenoid, high-output, permanent magnet motor and marine grade remote control connectors, the PE2.5 (es) provides the durability and reliability you can depend on in the most extreme situations.

Winch Rating: 2500 Pound

Recommended Use: ATV/ UTV

Type: Electric

Mount Type: Fixed Mount

Voltage: 12 Volt

Motor Horsepower: 2 Horsepower

Thermal Shutoff: No

Gear Reduction Ratio: 10.042361111

Free Spooling: Yes

Operation Type: Power

Line Length (FT): 50 Feet

Line Material: Synthetic

Fairlead Type: Hawse

Remote Type: Wired

Includes Mounting Hardware: No

Color: Black

Mounting Pattern Size: 4.88 Inch Length X 3 Inch Width

Max Amp Draw: 212 Amp Draw At 2500 Pound

Line Speed At Max Pull: 7.5 Feet Per Minute At 2500 Pound

Electrical Control Type: Integrated Solenoid

Motor Type: Permanent Magnet

Drive Gear Type: Planetary

Line Diameter (IN): 3/16 Inch

Mounting Hole Quantity: 4

Drum Material: Steel

Estimated Install Time (Hours): 2

Features

Fast Line Speeds. Redesigned Braking System
All Metal Planetary Gearing
Submersible, 300 Ampere Rated Solenoid
Center Focused Drum; Fast Line Speeds
Free Spooling
Roller Fairlead; Load Holding Brake
Corrosion-Resisitant
Marine Grade Remote Control Connectors
Limited 2 Year Warranty

Specifications of Mile Marker Winch - 2500 Pound Electric - 7753105BW
Color	Black
Drive Gear Type	Planetary
Drum Material	Steel
Electrical Control Type	Integrated Solenoid
Estimated Install Time (Hours)	2
Fairlead Type	Hawse
Free Spooling	Yes
Gear Reduction Ratio	10.042361111
Includes Mounting Hardware	No
Line Diameter (IN)	3/16 Inch
Line Length (FT)	50 Feet
Line Material	Synthetic
Line Speed At Max Pull	7.5 Feet Per Minute At 2500 Pound
Max Amp Draw	212 Amp Draw At 2500 Pound
Motor Horsepower	2 Horsepower
Motor Type	Permanent Magnet
Mount Type	Fixed Mount
Mounting Hole Quantity	4
Mounting Pattern Size	4.88 Inch Length X 3 Inch Width
Operation Type	Power
Recommended Use	ATV/ UTV
Remote Type	Wired
Thermal Shutoff	No
Type	Electric
Voltage	12 Volt
Winch Rating	2500 Pound
