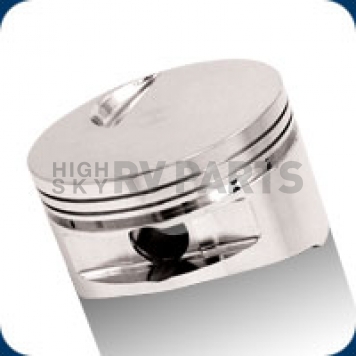

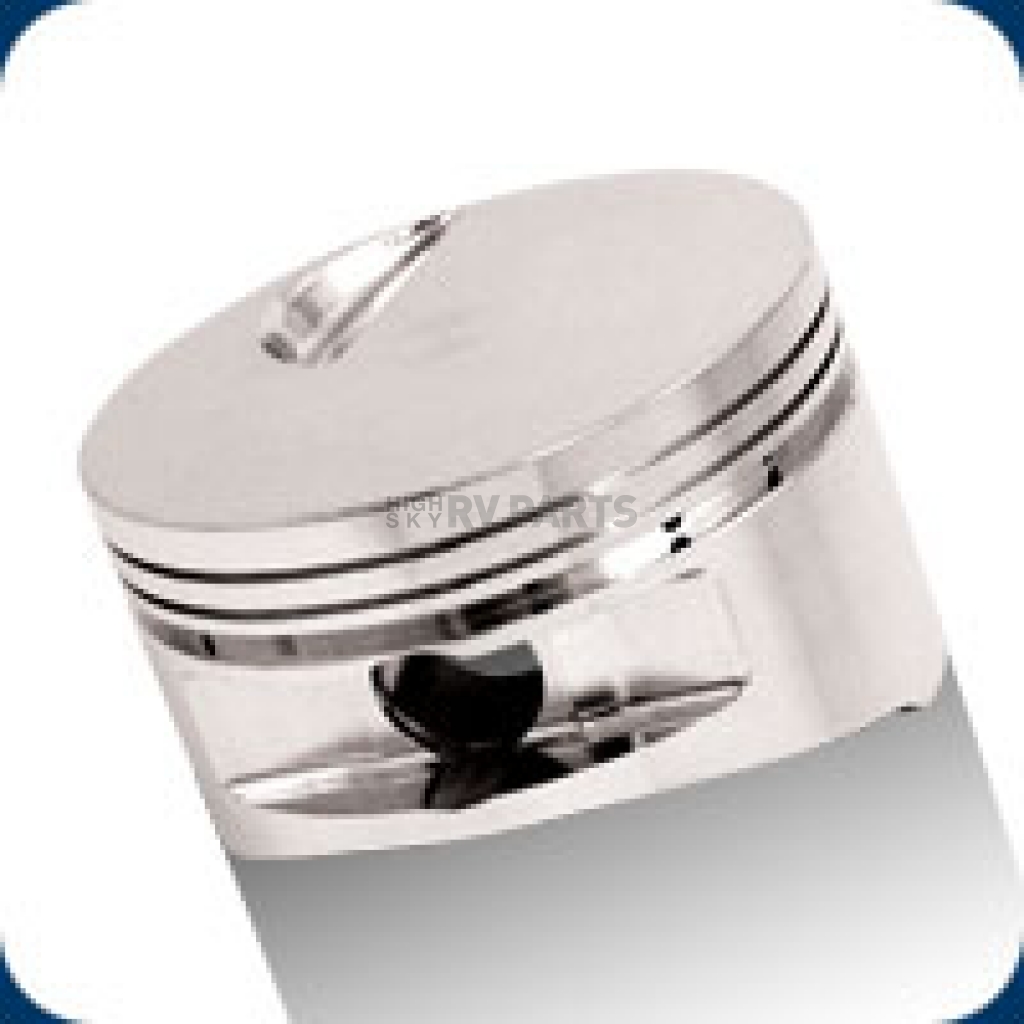

JE Pistons Piston - 281959

Authorized Dealer
Brand: JE Pistons JE Pistons
0 reviews
  • Have a product question? Ask us
  • Part Number: 281959
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by June 06
Retail: $1,466.84
Price: $1,396.99
You Save: $69.85
Bore Size (IN)
4.6 Inch
Connecting Rod Material
No Connecting Rod
Dome Volume
-3 Cubic Centimeter
Engine Compatibility
Big Block Chevy 565 Engines
Includes Piston Rings
Yes
Material
Aluminum Alloy
Oversized
Standard
Piston Type
Forged
Quantity
Set Of 8
Wrist Pin Style
Floating
Share this page

JE Pistons Piston

Piston; For Use With Big Block Chevy 565 Engines; Forged; 4.600 Inch Bore; 4.250 Inch Stroke/ 6.535 Inch Rod Length; 1.120 Inch Compression Distance; Flat Top/ -3 CC Volume; 10.3:1 Compression Ratio With 110 CC Heads/ 9.7:1 Compression Ratio With 118 CC Heads/ 9.3:1 Compression Ratio With 124 CC Heads; 589 Grams; Set Of 8 Pistons

MPN: 281959

These big block pistons are compatible with forced induction, nitrous and angle milled heads. Valve reliefs will accommodate oversized valves and long duration, tight lobe separation cams. Compression Height figured using 9.780 Inch block height with zero deck clearance. Precision CNC machined ring grooves accept 1/16, 1/16, 3/16 rings.
Engine Compatibility: Big Block Chevy 565 Engines
Piston Type: Forged
Dome Volume: -3 Cubic Centimeter
Compression Ratio: 10.3:1
Oversized: Standard
Bore Size (IN): 4.6 Inch
Material: Aluminum Alloy
Connecting Rod Material: No Connecting Rod
Wrist Pin Style: Floating
Includes Piston Rings: Yes
Quantity: Set Of 8

Features

  • Compatible With Forced Induction, Nitrous And Angle Milled Heads
  • Precision CNC Machined Ring Grooves
  • Will Fit Both Open And Closed Chamber Cylinder Heads
  • Limited 30 Day Warranty
Specifications of JE Pistons Piston - 281959
Bore Size (IN) 4.6 Inch
Connecting Rod Material No Connecting Rod
Dome Volume -3 Cubic Centimeter
Engine Compatibility Big Block Chevy 565 Engines
Includes Piston Rings Yes
Material Aluminum Alloy
Oversized Standard
Piston Type Forged
Quantity Set Of 8
Wrist Pin Style Floating

1900 Chevrolet Big Block 1965-1990 Gen IV

1900 Chevrolet Big Block 1991-1995 Gen V
