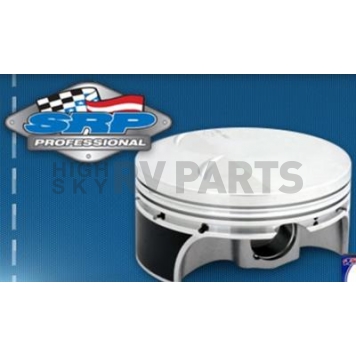

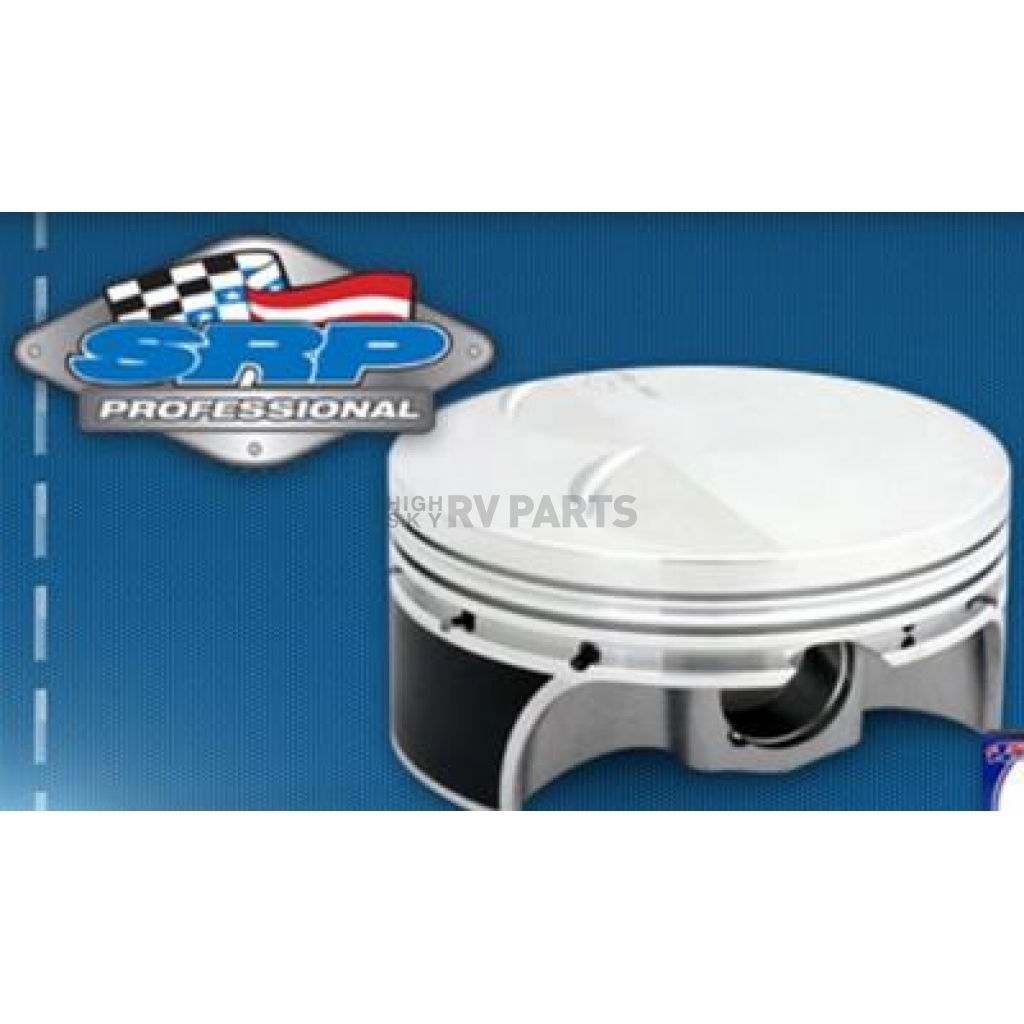

JE Pistons Piston - 268830
JE Pistons Piston
Piston; SRP Professional; For Use With Small Block Chevy 383 Engines; Forged; 4.00 Inch Bore; 0.030 Inch Oversized; 3.750 Inch Stroke/ 6.000 Inch Rod Length; 1.125 Inch Compression Distance; Flat Top/ -5 CC Volume; 11.9:1 Compression Ratio With 58 CC Heads/ 11.1:1 Compression Ratio With 64 CC Heads/ 10.3:1 Compression Ratio With 70 CC Heads; 394 Grams; Set Of 8 Pistons And Oil Support Rails
MPN: 268830
Features
- Advanced, Lightweight FSR Forging That Eliminates Stress Concentrations For Superior Strength
- Up To 20 Percent Lighter Than Traditional Equivalent
- High Silicon 4032 Aluminum Alloy For Reduced Piston To Wall Clearance And Quiet Operation
- Accumulator Grooves For Improved Ring Seal
- Designed For Normally Aspirated Or Moderate Forced Induction/Nitrous Applications
- Includes High Performance Skirt Coating
- High Quality 2.250 Inch Pin Further Reduces Reciprocating Weight. Carbon Steel Wire Locks, Rings Included
- Limited 90 Day Warranty
Specifications of JE Pistons Piston - 268830 | |
Bore Size (IN) | 4 Inch |
Dome Volume | -5 Cubic Centimeter |
Engine Compatibility | Chevy Small Block V8 5.0L 305 Cubic Inch |
Includes Piston Rings | Yes |
Material | Aluminum Alloy |
Oversized | 0.030 Inch |
Piston Type | Flat Top |
Quantity | Set Of 8 |
1900-1900 Chevrolet Small Block 1955-1986
1900-1900 Chevrolet Small Block 1987-1998 (OE Roller)
1900-1900 Chevrolet Small Block 383
