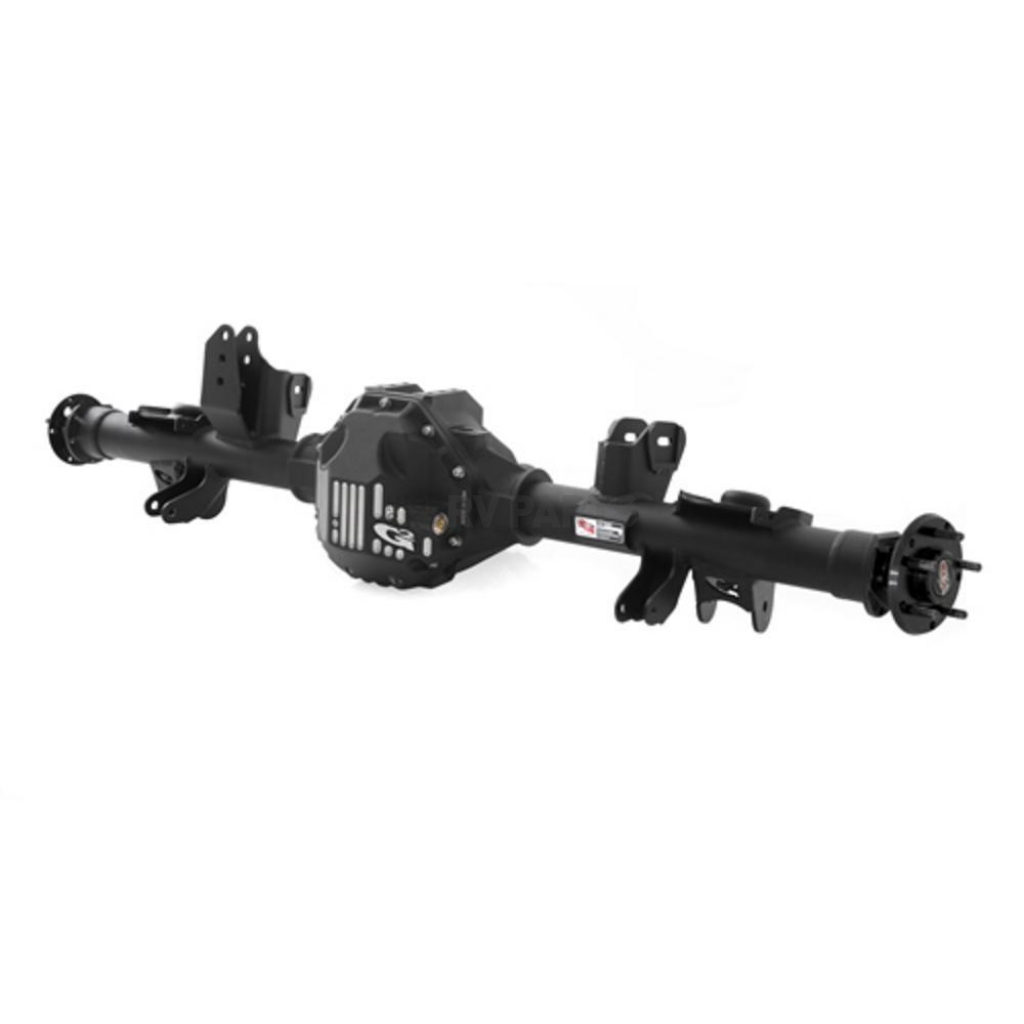

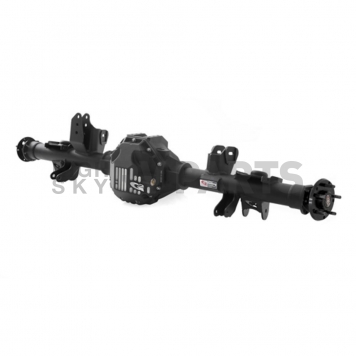

G2 Axle and Gear Core 44 Axle Complete Assembly - C4TSR373TC0D

Authorized Dealer
Brand: G2 Axle and Gear G2 Axle and Gear
0 reviews
  • Have a product question? Ask us
  • Part Number: C4TSR373TC0D
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by June 06
Retail: $7,545.29
Price: $7,185.99
You Save: $359.30
Axle Model
 Dana 44
Locker Type
 Detroit True Trac
Ratio
 3.73
Spline Count
 30
With Axle Bearing
 Yes
With Axle Seal
 No
With Axle Shaft
 No
With Ball Joint
 No
With Bearing Cap
 Yes
With Differential Cover
 Yes
With Disc Brakes
 No
Share this page

Axle Complete Assembly; CORE ® 44; Dana 44; With Brake Kit; 30 Spline; 3.73 Ratio; Detroit True Trac; SAE Bearings; Chromoly Axles; With Lower Control Arm Skid Plates/ Forged Bearing Caps/ Spanner Nuts/ Aluminum Differential Cover/ Ring And Pinion/ Axle Bearings/ Reinforcement Gussets/ Track Bar Bracket

MPN: C4TSR373TC0D

American-made CORE 44 housings accept the latest generation Dana 44 gear design, with a larger diameter ring gear and bigger pinion shaft to withstand hard off-road use. Our housings feature forged bearing caps and a unique G-lock adjuster nut system to set backlash and carrier bearing preload. CORE 44 axles use additional ribbing on the cast center section and 3 Inch Diameter, 5/16-wall DOM axle tubes with forged inner Cs for use with tall, aggressive tires.

Axle Model: Dana 44
Spline Count: 30
Ratio: 3.73
Locker Type: Detroit True Trac
With Disc Brakes: No
With Differential Cover: Yes
With Axle Shaft: No
With Axle Seal: No
With Axle Bearing: Yes
With Ball Joint: No
With Reinforcement Gussets: Yes
With Inner C-End: No
With Knuckle: No
With Track Bar Bracket: Yes
With Skid Plate: Yes
With Bearing Cap: Yes
With Mounting Hardware: Yes

Features

  • Heat-Treated Aluminum Differential With Cooling Fins
  • Heavy Duty Forged Bearing Caps
  • Integrated Skid Plated On Lower Control Arm Mount
  • Spanner Nuts For Backlash Adjustments
  • Limited 90 Day Warranty
Specifications of G2 Axle and Gear Core 44 Axle Complete Assembly - C4TSR373TC0D
Axle Model  Dana 44
Locker Type  Detroit True Trac
Ratio  3.73
Spline Count  30
With Axle Bearing  Yes
With Axle Seal  No
With Axle Shaft  No
With Ball Joint  No
With Bearing Cap  Yes
With Differential Cover  Yes
With Disc Brakes  No
With Inner C-End  No
With Knuckle  No
With Mounting Hardware  Yes
With Reinforcement Gussets  Yes
With Skid Plate  Yes
With Track Bar Bracket  Yes

1997 Jeep Wrangler TJ
1998 Jeep Wrangler TJ
1999 Jeep Wrangler TJ
2000 Jeep Wrangler TJ
2001 Jeep Wrangler TJ
2002 Jeep Wrangler TJ
2003 Jeep Wrangler TJ
2004 Jeep Wrangler TJ
2005 Jeep Wrangler TJ
2006 Jeep Wrangler TJ
