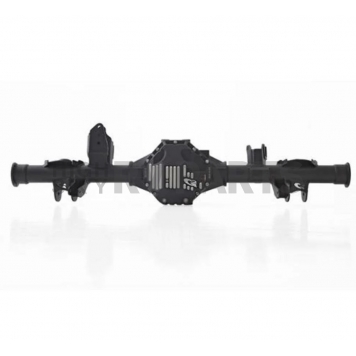

G2 Axle and Gear Core 44 Axle Complete Assembly - C4TSR410MC0
Axle Complete Assembly; CORE ® 44; Dana 44; Without Brake Kit; 30 Spline; 4.10 Ratio; Auburn Ected Locker; SAE Bearings; 4340 Chomoly Axles; With Lower Control Arm Skid Plates/ Forged Bearing Caps/ Spanner Nuts/ Aluminum Differential Cover/ Axle Bearings/ Reinforcement Gussets/ Track Bar Bracket
MPN: C4TSR410MC0
American-made CORE 44 housings accept the latest generation Dana 44 gear design, with a larger diameter ring gear and bigger pinion shaft to withstand hard off-road use. Our housings feature forged bearing caps and a unique G-lock adjuster nut system to set backlash and carrier bearing preload. CORE 44 axles use additional ribbing on the cast center section and 3-inch diameter, 5/16-wall DOM axle tubes with forged inner Cs for use with tall, aggressive tires. The CORE 44 is a direct replacement for the Dana 30 under the front of your leaf sprung 87-95 YJ Wrangler or coil sprung 97-06 TJ Wrangler. All brackets are designed around stock mounting points, and are laser cut and CNC formed from 3/8 Inch steel for added strength. We have also gusseted and reinforced any weak points to prevent damage to the brackets and finish the housing in a UV-stable black powder coat.Features
- The CORE 44 Comes Fully Assembled With Your Choice Of Gear Ratio And Locker
- 1/4 Inch Laser Cut Brackets
- Housings Feature Forged Bearing Caps
- Made In America
- Limited 90 Day Supplier Warranty
Specifications of G2 Axle and Gear Core 44 Axle Complete Assembly - C4TSR410MC0 | |
Axle Model | Dana 44 |
Locker Type | Auburn ECTED |
Ratio | 4.10 |
Spline Count | 30 |
With Axle Bearing | Yes |
With Axle Seal | No |
With Axle Shaft | No |
With Ball Joint | No |
With Bearing Cap | No |
With Differential Cover | Yes |
With Disc Brakes | No |
With Inner C-End | No |
With Knuckle | No |
With Mounting Hardware | No |
With Reinforcement Gussets | Yes |
With Skid Plate | Yes |
With Track Bar Bracket | Yes |
