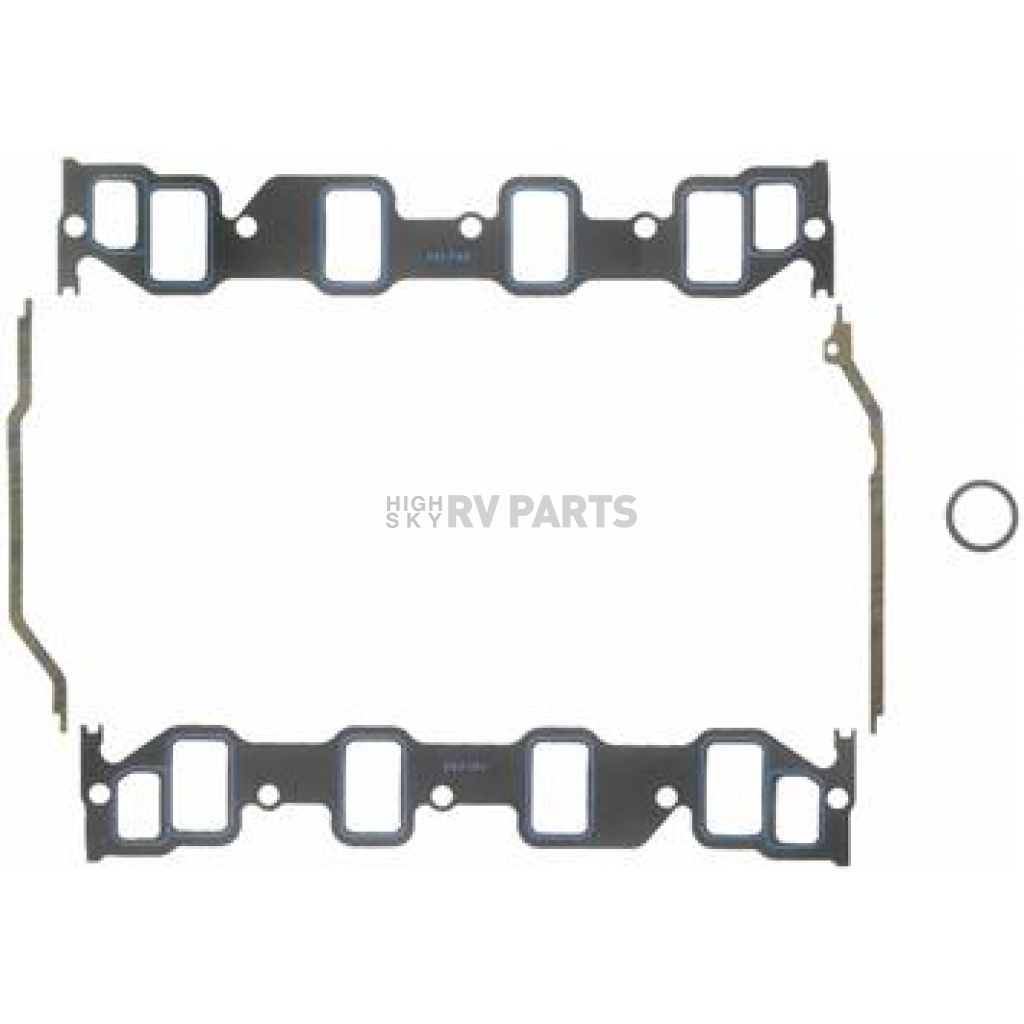

Fel Pro HP Intake Manifold Gasket - 1246
Compatibility
Ford FE Big Block
Material
Composite With Printoseal
Port Diameter (IN)
Not Applicable
Port Length (IN)
2.34 Inch
Port Shape
Rectangular
Port Width (IN)
1.40 Inch
Recommended Use
Performance
Thickness (IN)
0.060 Inch
Share this page
Fel Pro HP Intake Manifold Gasket
Intake Manifold Gasket; Ford FE Big Block; 1.40 Inch X 2.34 Inch Port Size; Printoseal; 0.060 Inch Thick
MPN: 1246
Fel-Pro performance intake manifold gaskets must prevent air, oil and dirt from being sucked into the intake ports and prevent coolant from leaking out of the coolant ports. For performance engines, this is complicated by the variety of aftermarket cylinder heads and intake manifolds in use. Fel-Pro performance intake manifold gaskets have been tested for use with all popular aftermarket cylinder head and intake manifold combinations. In addition, most Fel-Pro performance intake manifold gaskets do not have a metal core, which allows engine builders to trim the gasket to ensure an exact fit on modified ports. Fel-Pro offers a solid core intake manifold gasket for high vacuum race engines, as well as performance applications that have a long expected service life i.e., street machines, marine use or tow vehicles. The solid core provides extra strength and stability, and the gaskets come in proven port shapes used in race intake gaskets.
Recommended Use: Performance
Compatibility: Ford FE Big Block
Port Shape: Rectangular
Port Diameter (IN): Not Applicable
Port Length (IN): 2.34 Inch
Port Width (IN): 1.40 Inch
Thickness (IN): 0.060 Inch
Material: Composite With Printoseal
Features
- Prevent Air, Oil And Dirt From Being Sucked Into The Intake Ports And Prevent Coolant From Leaking Out Of The Coolant Ports
- Limited 1 Year Warranty
Specifications of Fel Pro HP Intake Manifold Gasket - 1246 | |
Compatibility | Ford FE Big Block |
Material | Composite With Printoseal |
Port Diameter (IN) | Not Applicable |
Port Length (IN) | 2.34 Inch |
Port Shape | Rectangular |
Port Width (IN) | 1.40 Inch |
Recommended Use | Performance |
Thickness (IN) | 0.060 Inch |
1967 AC Shelby Cobra
1968 AC Shelby Cobra
1969 AC Shelby Cobra
1970 AC Shelby Cobra
1971 AC Shelby Cobra
1972 AC Shelby Cobra
1973 AC Shelby Cobra
1968 AC Shelby Cobra
1969 AC Shelby Cobra
1970 AC Shelby Cobra
1971 AC Shelby Cobra
1972 AC Shelby Cobra
1973 AC Shelby Cobra
1900 Ford 352-428 FE
1966 Shelby Cobra
1967 Shelby Cobra
1968 Shelby Cobra
1967 Shelby Cobra
1968 Shelby Cobra
