Fel Pro HP Intake Manifold Gasket - 12233

Brand: Fel Pro HP

Have a product question? Ask us
Part Number: 12233
Part Location: U.S.
Availability: *Special Order
Delivery: 3 - 4 Weeks

Retail: $60.89

Price: $57.99

You Save: $2.90

Compatibility

Chevrolet/ GM V8 Big Block

Material

Composite

Port Diameter (IN)

2.79 Inch Length X 2.063 Inch Width

Port Length (IN)

Not Applicable

Port Shape

Port Width (IN)

Not Applicable

Recommended Use

Performance/ Racing

Thickness (IN)

0.060 Inch

Share this page

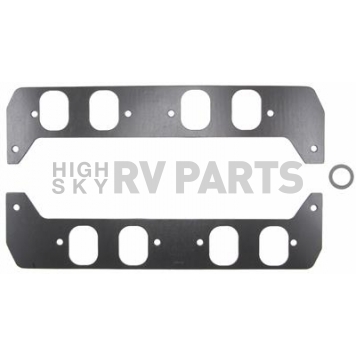

Fel Pro HP Intake Manifold Gasket

Intake Manifold Gasket; For Use With Chevy Big Block Engines With 5.00 Inch Bore Centers; 2.063 Inch X 2.79 Inch Port Size; Composite; 0.060 Inch Thick

MPN: 12233

Fel-Pro performance intake manifold gaskets must prevent air, oil and dirt from being sucked into the intake ports and prevent coolant from leaking out of the coolant ports. For performance engines, this is complicated by the variety of aftermarket cylinder heads and intake manifolds in use. Fel-Pro performance intake manifold gaskets have been tested for use with all popular aftermarket cylinder head and intake manifold combinations. In addition, most Fel-Pro performance intake manifold gaskets do not have a metal core, which allows engine builders to trim the gasket to ensure an exact fit on modified ports. Fel-Pro offers a solid core intake manifold gasket for high vacuum race engines, as well as performance applications that have a long expected service life i.e., street machines, marine use or tow vehicles. The solid core provides extra strength and stability, and the gaskets come in proven port shapes used in race intake gaskets.

Recommended Use: Performance/ Racing

Compatibility: Chevrolet/ GM V8 Big Block

Port Shape: Oval

Port Diameter (IN): 2.79 Inch Length X 2.063 Inch Width

Port Length (IN): Not Applicable

Port Width (IN): Not Applicable

Thickness (IN): 0.060 Inch

Material: Composite

Features

Each Gasket, Set, Or Seal Is Built To Meet Or Exceed All Original Equipment Specifications And Is Validated For Fit, Form, And Function
Application Specific Design To Ensure A Perfect Fit And Correct Operation For Unsurpassed Quality That You Can Trust
Fel-Pro® Gasket Sets Are Engineered And Manufactured Specifically For The Aftermarket Repair Environment
Every Part For The Repair Procedure Is Included In The Kit Unless Otherwise Noted
No Supplier Warranty

Specifications of Fel Pro HP Intake Manifold Gasket - 12233
Compatibility	Chevrolet/ GM V8 Big Block
Material	Composite
Port Diameter (IN)	2.79 Inch Length X 2.063 Inch Width
Port Length (IN)	Not Applicable
Port Shape	Oval
Port Width (IN)	Not Applicable
Recommended Use	Performance/ Racing
Thickness (IN)	0.060 Inch
