Edelbrock Cylinder Head 60435
CNC-Machined
Yes
Combustion Chamber Volume (cc)
100 Cubic Centimeter
Condition
New
Engine Compatibility
Chevy Big Block V8 7.4L 454 Cubic Inch
Exhaust Port Location
Standard
Exhaust Runner Volume (CC)
110 Cubic Centimeter
Exhaust Valve Diameter (IN)
1.88 Inch
Finish
Satin
Includes Guideplates
Yes
Includes Rocker Arm Studs
Yes
Includes Valves
Yes
Share this page

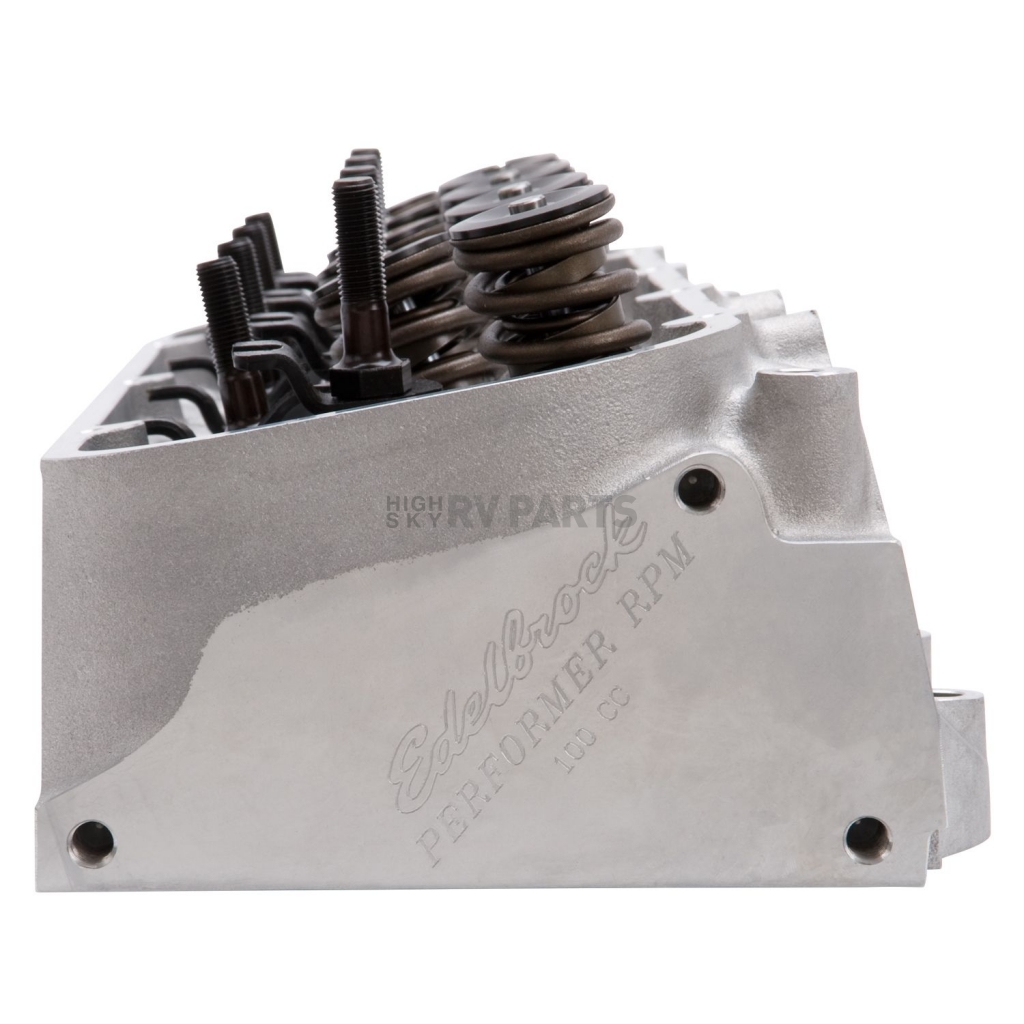

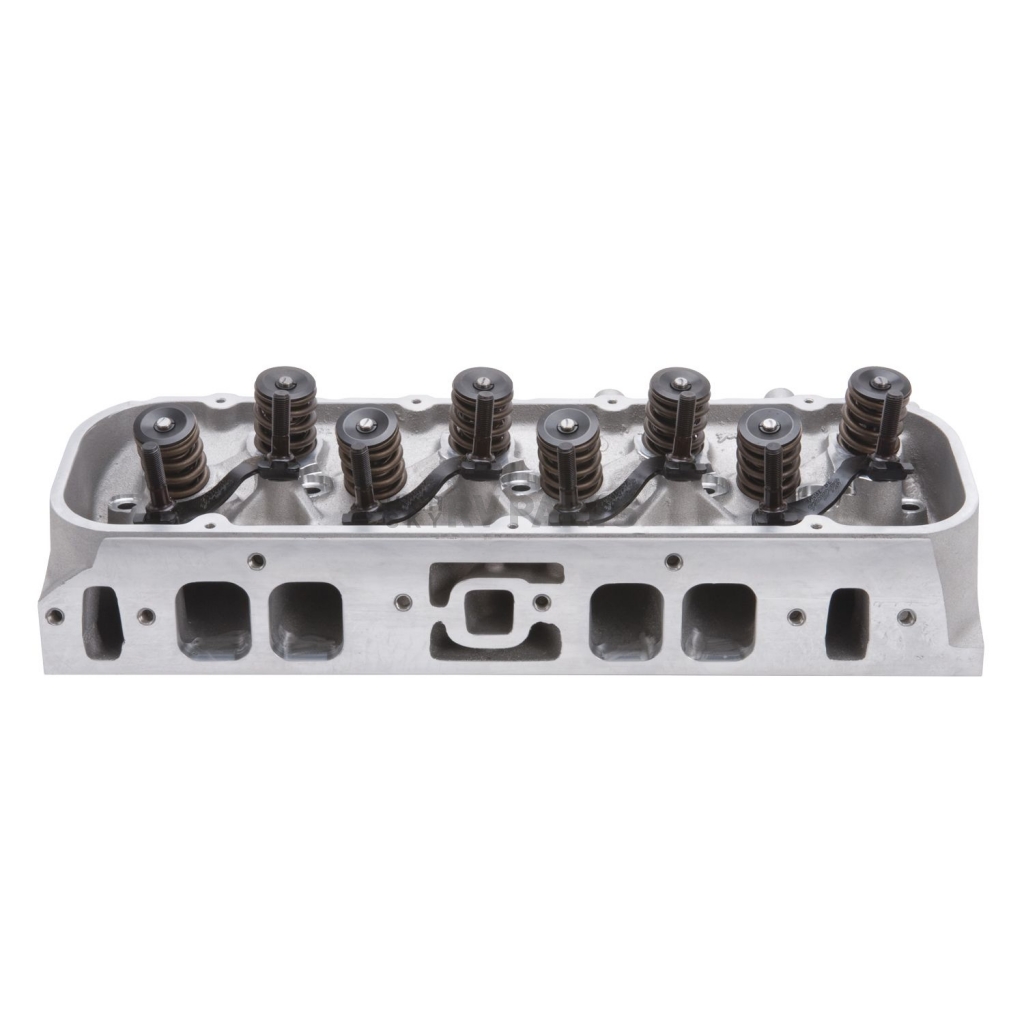

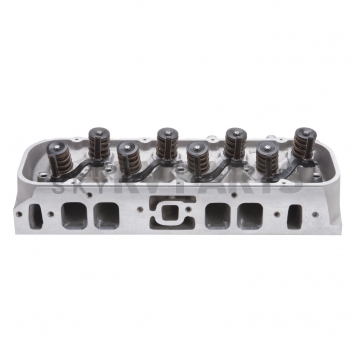

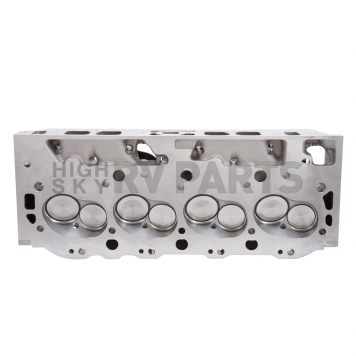

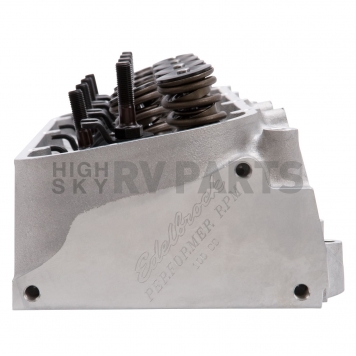

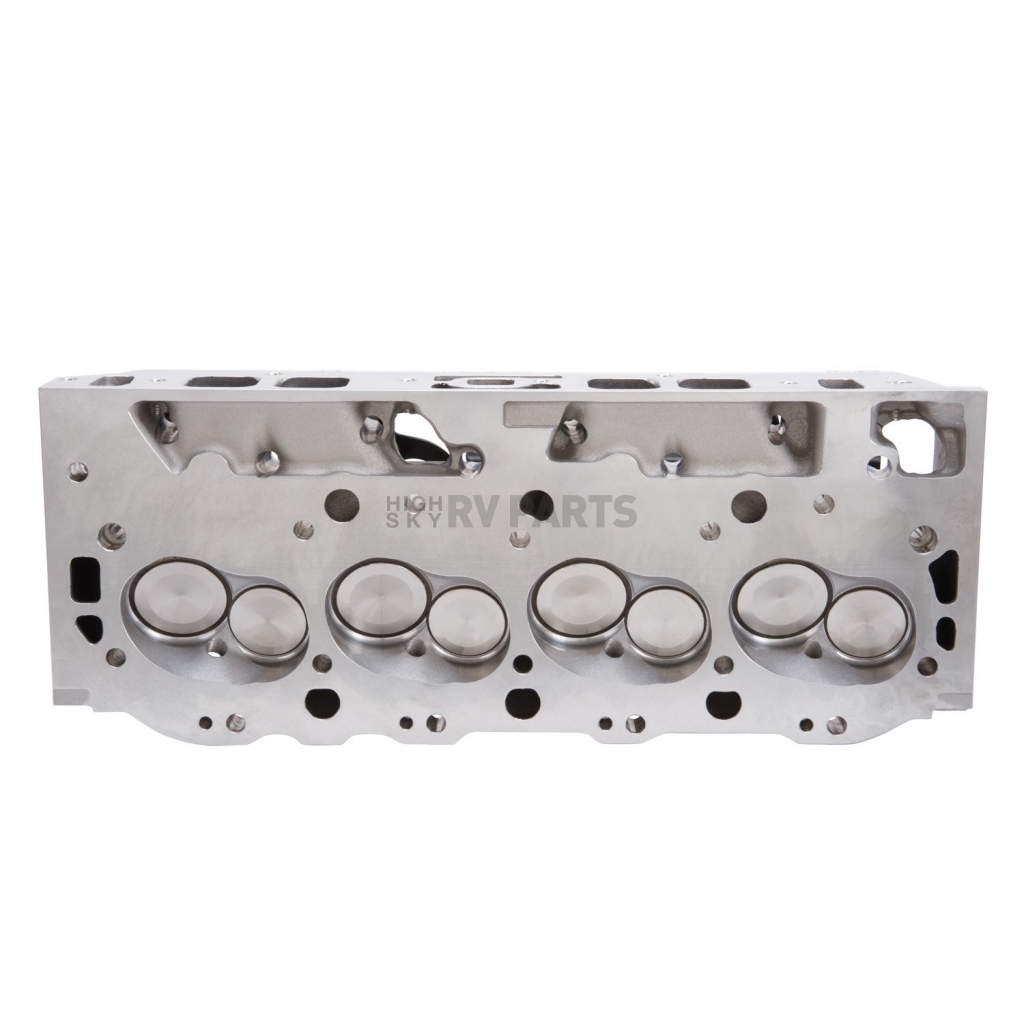

Edelbrock Cylinder Head
Cylinder Head; Performer RPM; Assembled; Chevy 7.4L/454 Cubic Inch Engine; Aluminum; 290 CC Intake Port/ 110 CC Exhaust Port; 100 CC Chamber Volume; 2.19 Inch Intake Valve/ 1.88 Inch Exhaust Valve; 1.55 Inch Spring Diameter; Single; With Guides/ Seats/ Springs For Hydraulic Roller Cam; Not For Sale Or Use On Pollution Controlled Vehicles
MPN: 60435
These new cylinder heads are our latest addition to our popular Performer RPM 454-O cylinder heads for big block Chevy's with oval ports. These cylinder heads feature a 100 Cubic Centimeter chamber that is ideal for high compression applications. The unique oval intake port shape produces flow similar to rectangular ports, but the smaller port size provides excellent seat of the pants performance and crisp throttle response. Both the intake and exhaust ports have been profiled for improved air flow. They also have smaller than stock 11/32 Inch valve stems for excellent flow and a lighter weight valve. The heat crossover passage is present, but has been blocked, making these heads not legal for use on emissions controlled engines.
Condition: New
Engine Compatibility: Chevy Big Block V8 7.4L 454 Cubic Inch
Style: Assembled
Finish: Satin
Material: Aluminum
CNC-Machined: Yes
Combustion Chamber Volume (cc): 100 Cubic Centimeter
Intake Runner Volume (CC): 290 Cubic Centimeter
Exhaust Runner Volume (CC): 110 Cubic Centimeter
Port Shape: Oval
Intake Port Location: Standard
Exhaust Port Location: Standard
Intake Valve Diameter (IN): 2.19 Inch
Exhaust Valve Diameter (IN): 1.88 Inch
Includes Valves: Yes
Spark Plug Angle: Straight
Rocker Arm Nut Thread Size: 3/8 Inch
Includes Rocker Arm Studs: Yes
Valve Guide Material: Manganese Bronze
Valve Seats Machined: Yes
Includes Guideplates: Yes
Features
- 100 Cubic Centimeter Semi-Open Chamber Heads Feature A 1-1/2 Degree Rolled Over (Angle Milled) Design
- Improves Intake Port Alignment And Provides A Smaller Combustion Chamber Without Shrouding The Valves
- 9.2:1 Compression With Flat Top Pistons For An Outstanding High Performance Street Head
- Performer Applications Include Heat Crossover Passage For Emissions Related Engines
- Limited 1 Year Warranty
| Specifications of Edelbrock Cylinder Head 60435 | |
| CNC-Machined | Yes |
| Combustion Chamber Volume (cc) | 100 Cubic Centimeter |
| Condition | New |
| Engine Compatibility | Chevy Big Block V8 7.4L 454 Cubic Inch |
| Exhaust Port Location | Standard |
| Exhaust Runner Volume (CC) | 110 Cubic Centimeter |
| Exhaust Valve Diameter (IN) | 1.88 Inch |
| Finish | Satin |
| Includes Guideplates | Yes |
| Includes Rocker Arm Studs | Yes |
| Includes Valves | Yes |
| Intake Port Location | Standard |
| Intake Runner Volume (CC) | 290 Cubic Centimeter |
| Intake Valve Diameter (IN) | 2.19 Inch |
| Material | Aluminum |
| Port Shape | Oval |
| Rocker Arm Nut Thread Size | 3/8 Inch |
| Spark Plug Angle | Straight |
| Style | Assembled |
| Valve Guide Material | Manganese Bronze |
| Valve Seats Machined | Yes |
1900-1900 Chevrolet Big Block 1965-1990 Gen IV
1900 Chevrolet Big Block 1965-1990 Gen IV
1900-1900 Chevrolet Big Block 1991-1995 Gen V
1900 Chevrolet Big Block 1991-1995 Gen V
1900-1900 Chevrolet Big Block 1996-2000 Gen VI
1900 Chevrolet Big Block 1996-2000 Gen VI
