Edelbrock Cylinder Head 60175

Name: Edelbrock Cylinder Head 60175
Brand: Edelbrock
SKU: 60175
Price: 1323.99 USD
Availability: InStock

Authorized Dealer

Brand:

Edelbrock

0 reviews

Have a product question? Ask us
Part Number: 60175
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by July 17

Retail: $1,390.19

Price: $1,323.99

You Save: $66.20

CNC-Machined

Yes

Combustion Chamber Volume (cc)

65 Cubic Centimeter

Condition

New

Engine Compatibility

Chrysler Small Block V8 318-340-360 Cubic Inch

Exhaust Port Location

Standard

Exhaust Runner Volume (CC)

77 Cubic Centimeter

Exhaust Valve Diameter (IN)

1.6 Inch

Finish

Satin

Includes Damper Spring

Yes

Includes Guideplates

Yes

Includes Rocker Arm Studs

Share this page

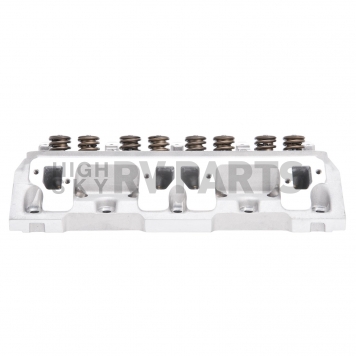

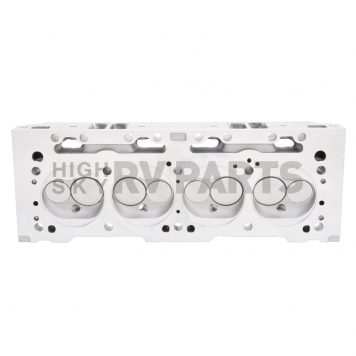

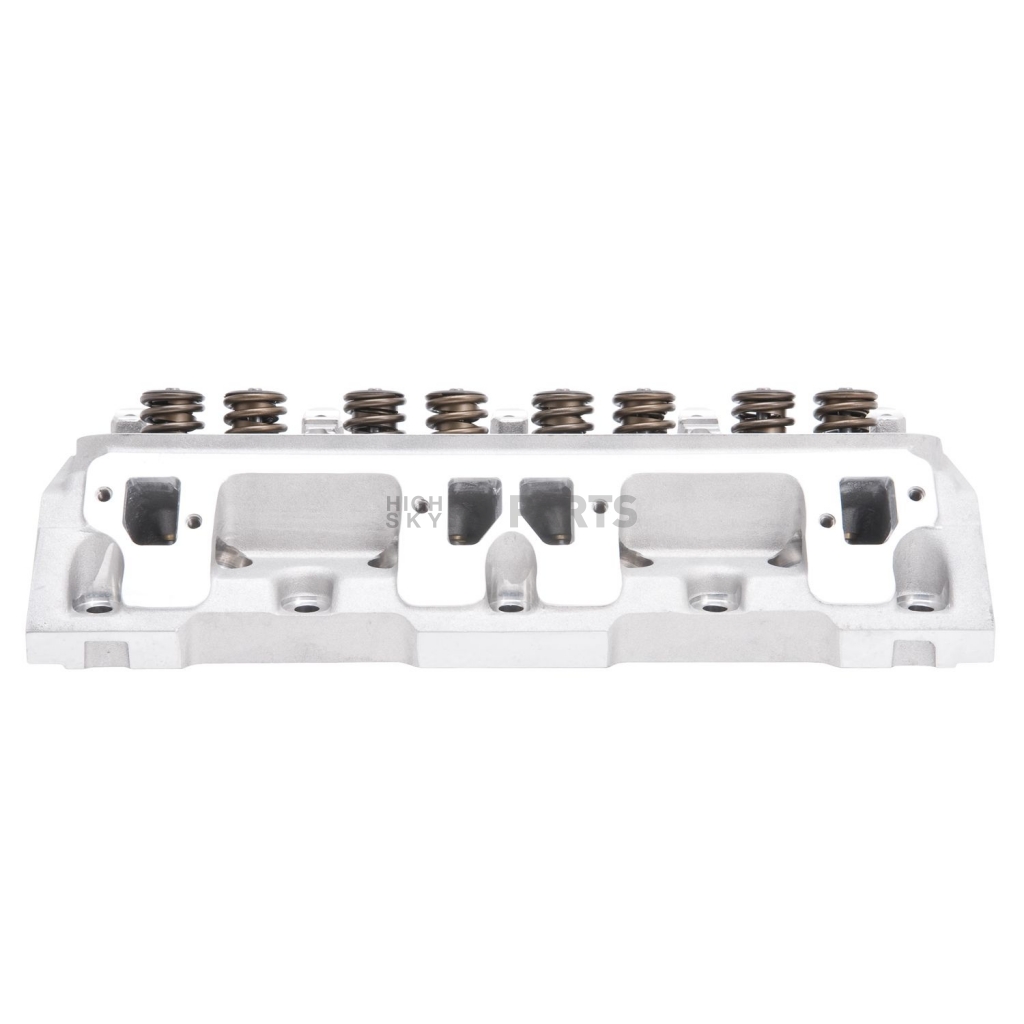

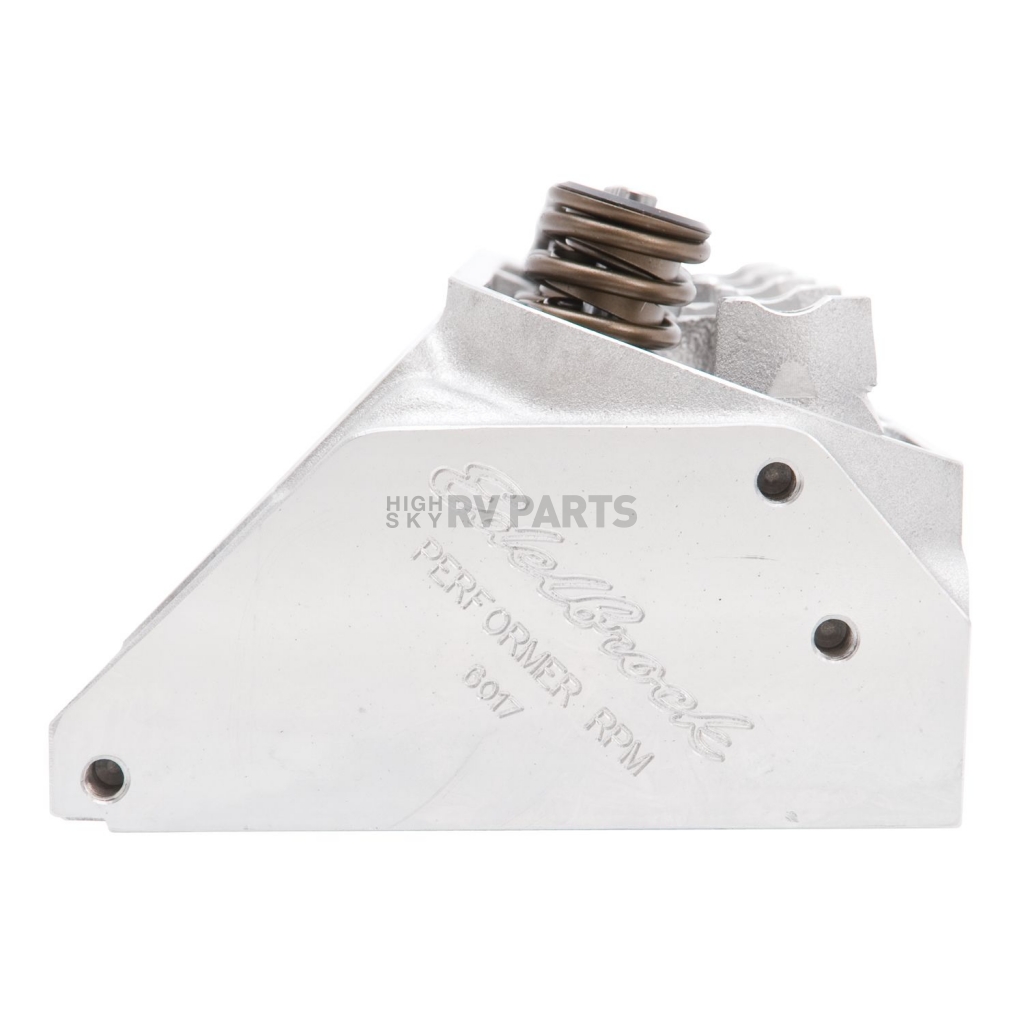

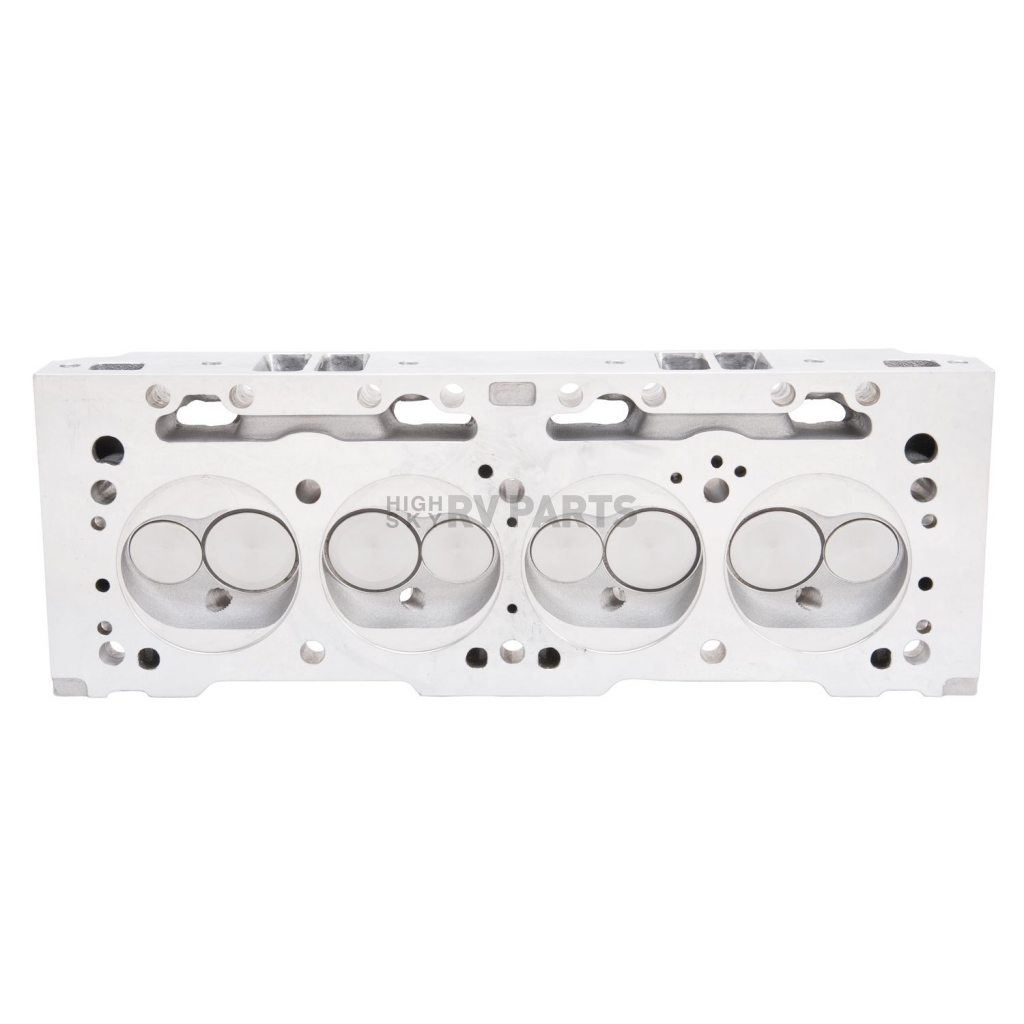

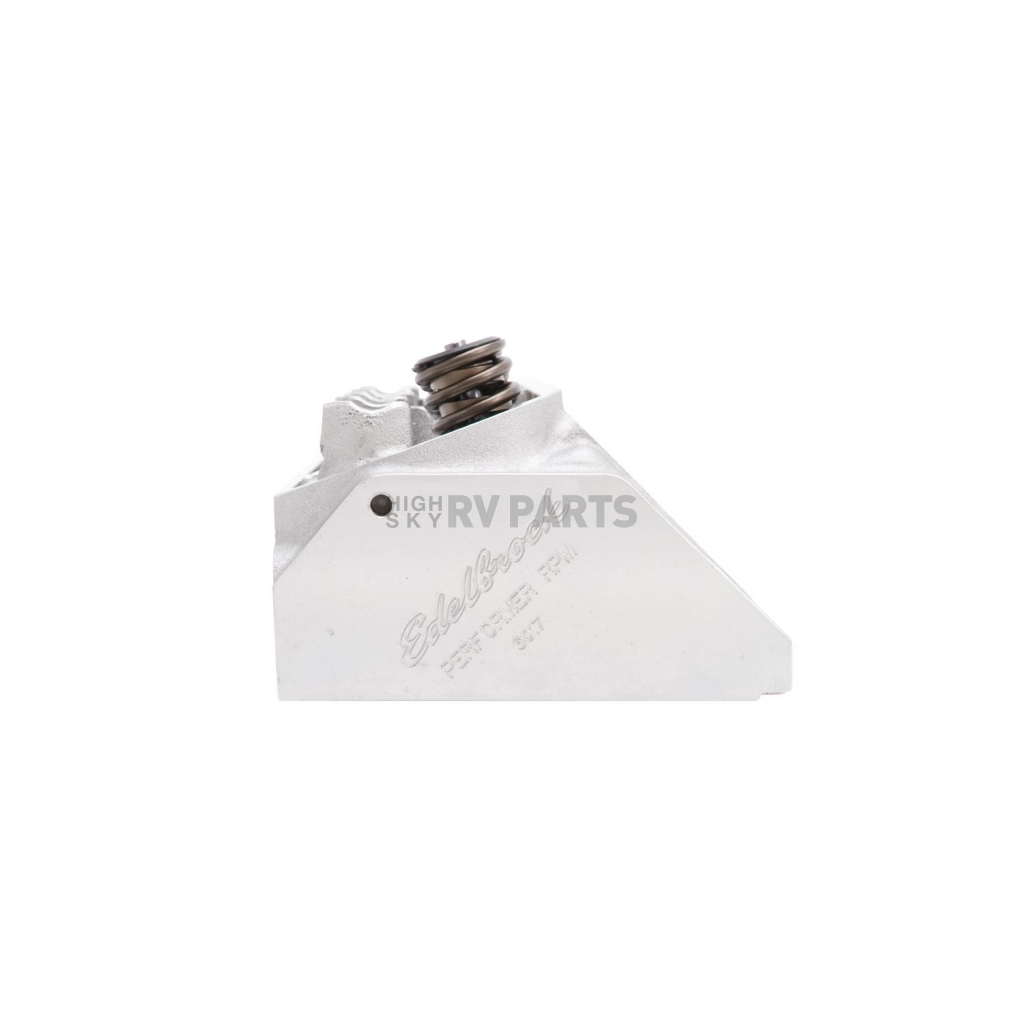

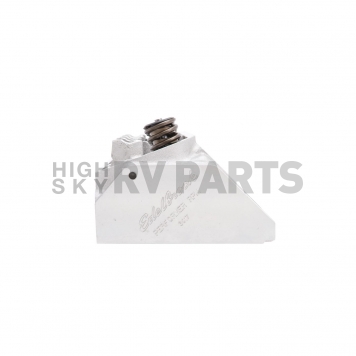

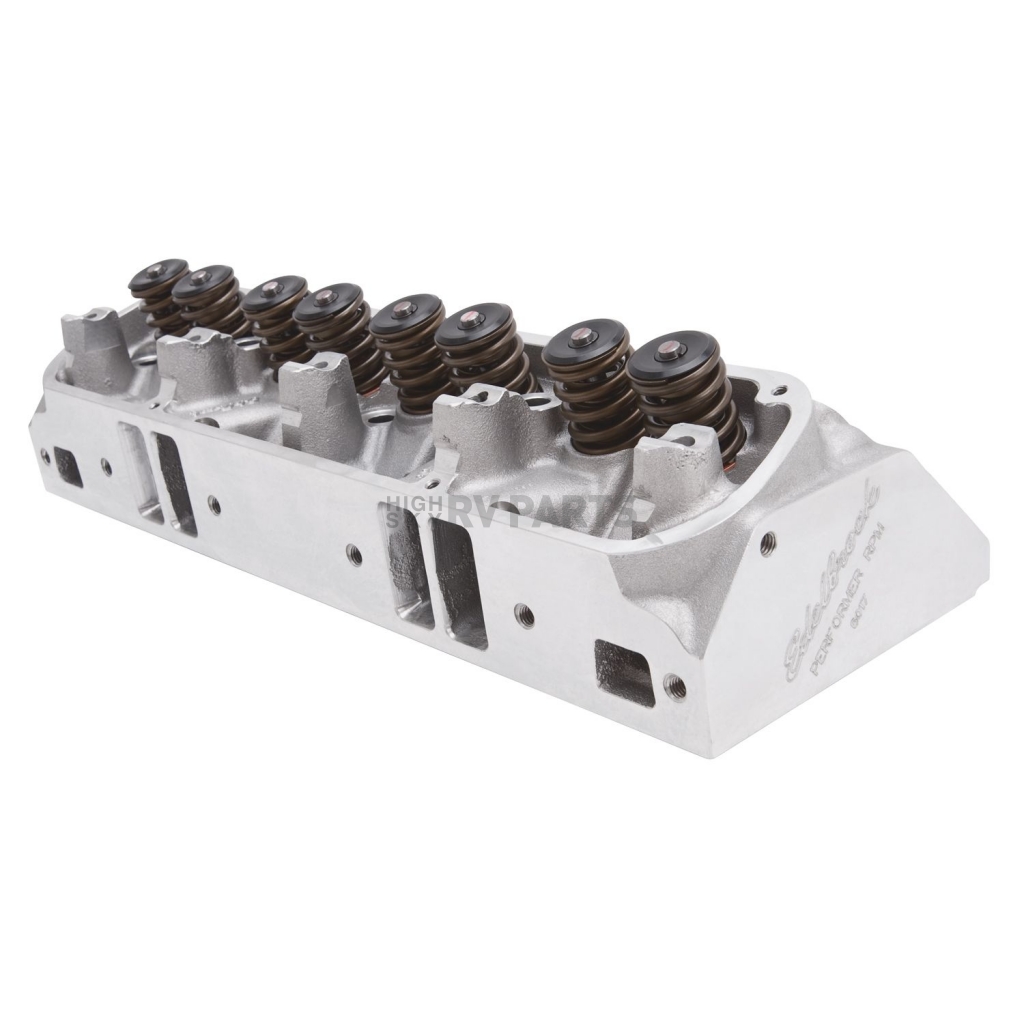

Edelbrock Cylinder Head

Cylinder Head; Performer RPM; Assembled; Chrysler 340 Cubic Inch Engine; Aluminum; 171 CC Intake Port/ 77 CC Exhaust Port; 65 CC Chamber Volume; 2.02 Inch Intake Valve/ 1.60 Inch Exhaust Valve; 1.46 Inch Spring Diameter; Single; With Guides/ Seats/ Springs For Hydraulic Roller Cams

MPN: 60175

Performer RPM heads are perfect for street performance, daily drivers, street rods and muscle cars where Seat-Of-The-Pants performance is needed. These heads give great Torque and Horsepower up to 6500 RPM

Condition: New

Engine Compatibility: Chrysler Small Block V8 318-340-360 Cubic Inch

Style: Assembled

Finish: Satin

Material: Aluminum

CNC-Machined: Yes

Combustion Chamber Volume (cc): 65 Cubic Centimeter

Intake Runner Volume (CC): 171 Cubic Centimeter

Exhaust Runner Volume (CC): 77 Cubic Centimeter

Port Shape: Rectangular

Intake Port Location: Standard

Exhaust Port Location: Standard

Intake Valve Diameter (IN): 2.02 Inch

Exhaust Valve Diameter (IN): 1.6 Inch

Includes Valves: Yes

Spark Plug Angle: Straight

Rocker Arm Nut Thread Size: 5/16 Inch

Includes Rocker Arm Studs: No

Valve Stem Seal Type: Umbrella

Valve Guide Material: Manganese Bronze

Number Of Springs Per Valve: Single

Valve Seats Machined: Yes

Steam Holes Drilled: No

Machined For O-Ring: No

Includes Guideplates: Yes

Includes Damper Spring: Yes

Features

RPM Chrysler 340 Heads Have Chambers Machined 0.060 Inch For Clearance With Early High Compression Engines
These Heads Are Capable Of 417 Horsepower And 397 Foot/Pound Of Torque On Pump Gas With An Edelbrock Performer RPM Intake Manifold And Matching Camshaft
These Heads Give Great Torque And Horsepower Up To 6500 RPM
Limited 1 Year Warranty

Specifications of Edelbrock Cylinder Head 60175
CNC-Machined	Yes
Combustion Chamber Volume (cc)	65 Cubic Centimeter
Condition	New
Engine Compatibility	Chrysler Small Block V8 318-340-360 Cubic Inch
Exhaust Port Location	Standard
Exhaust Runner Volume (CC)	77 Cubic Centimeter
Exhaust Valve Diameter (IN)	1.6 Inch
Finish	Satin
Includes Damper Spring	Yes
Includes Guideplates	Yes
Includes Rocker Arm Studs	No
Includes Valves	Yes
Intake Port Location	Standard
Intake Runner Volume (CC)	171 Cubic Centimeter
Intake Valve Diameter (IN)	2.02 Inch
Machined For O-Ring	No
Material	Aluminum
Number Of Springs Per Valve	Single
Port Shape	Rectangular
Rocker Arm Nut Thread Size	5/16 Inch
Spark Plug Angle	Straight
Steam Holes Drilled	No
Style	Assembled
Valve Guide Material	Manganese Bronze
Valve Seats Machined	Yes
Valve Stem Seal Type	Umbrella
