Earl's Plumbing Brake Line Quick Disconnect - JV271204
Includes Coupling
Yes
Includes Seal
Yes
Maximum Pressure Rating (PSI)
2900 Pounds Per Square Inch
Size
1/4 Inch (-4 AN)
Temperature Range (Deg F)
-15 To 400 Degree Fahrenheit
Type
Female Half
Use With
Transfer Engine Fuels/ Oils
Share this page

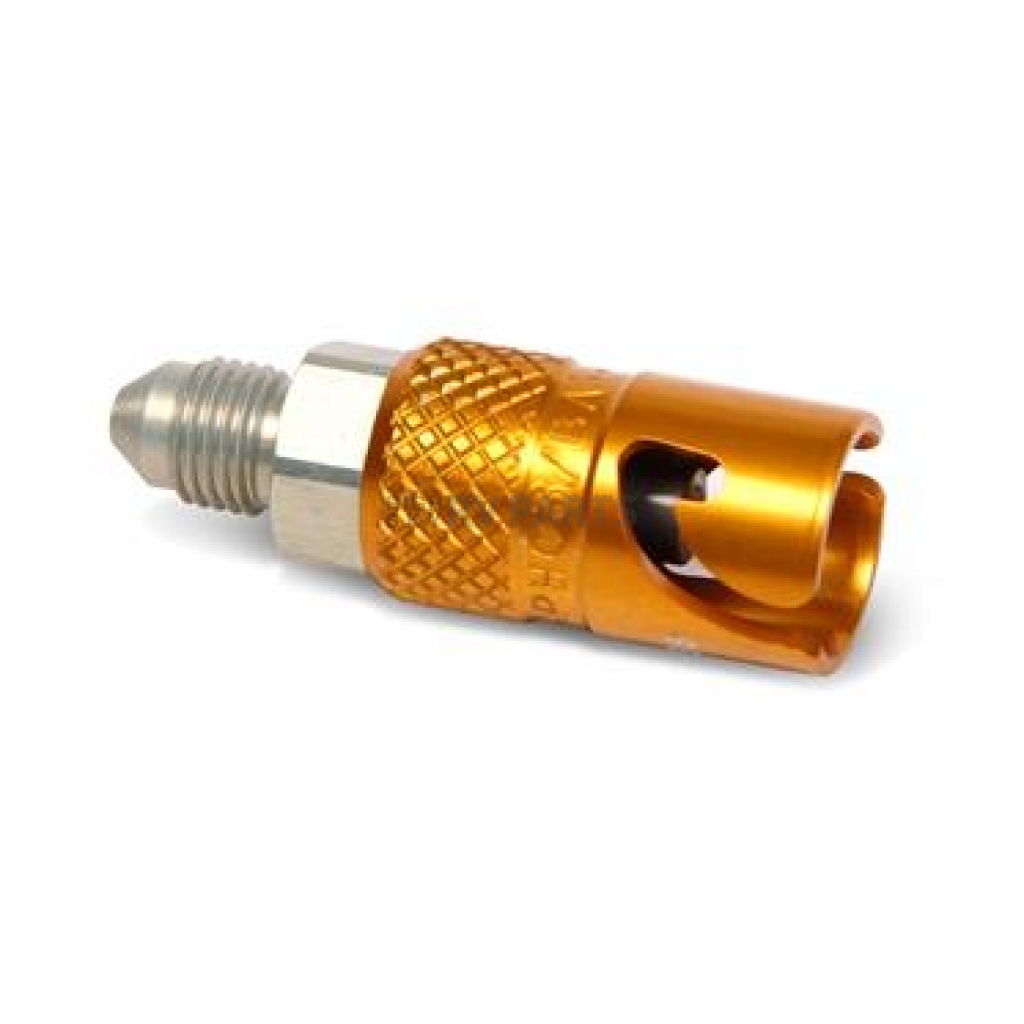

Earl's Plumbing Brake Line Quick Disconnect
Brake Line Quick Disconnect; Staubli; Used To Transfer Engine Fuels And Oils (Non-Ethanol); -4 AN Size; Female Half; 2900 Pounds Per Square Inch Maximum Pressure; Aluminum Coupling/ Viton Seal; -15 Degree Fahrenheit To +400 Degree Fahrenheit Temperature Range
MPN: JV271204
Staubli SPH aluminum dry break couplings are available to transfer brake fluids, engine fuels and engine oils. The quick twist of the bayonet locks the coupler together. Available in standard and panel mount body styles in three different flow sizes. SPH flush face break couplers have a minimum loss of fluid leakage or air inclusion with double shut off ends which eliminates the need to purge the system. Internal design with large inside diameter provides optimal flow within the minimum outside diameter. Staubli SPH couplers that use Fluorocarbon seals are for use with oils, fuels non-ethanol , mineral greases and nitrogen and have an operating temperature -15 Degree Fahrenheit To 400 Degree Fahrenheit. Ethylene-Propylene seals are designed to work with all Glycol base brake fluids with operating temperature -4 Degree Fahrenheit To 302 Degree Fahrenheit.
Use With: Transfer Engine Fuels/ Oils
Type: Female Half
Size: 1/4 Inch (-4 AN)
Maximum Pressure Rating (PSI): 2900 Pounds Per Square Inch
Temperature Range (Deg F): -15 To 400 Degree Fahrenheit
Includes Coupling: Yes
Includes Seal: Yes
Features
- Staubli SPH Aluminum Dry Break Couplings Are Available To Transfer Brake Fluids, Engine Fuels And Engine Oils
- The Quick Twist Of The Bayonet Locks The Coupler Together
- Available In Standard And Panel Mount Body Styles In Three Different Flow Sizes
- SPH Flush Face Break Couplers Have A Minimum Loss Of Fluid Leakage Or Air Inclusion With Double Shut Off Ends Which Eliminates The Need To Purge The System
- Internal Design With Large Inside Diameter Provides Optimal Flow Within The Minimum Outside Diameter
- Staubli SPH Couplers That Use Fluorocarbon FPM Seals Are For Use With Oils, Fuels Non-Ethanol, Mineral Greases And Nitrogen
- Ethylene-Propylene Seals Are Designed To Work With All Glycol Base Brake Fluids
- Limited 90 Day Warranty
Specifications of Earl's Plumbing Brake Line Quick Disconnect - JV271204 | |
Includes Coupling | Yes |
Includes Seal | Yes |
Maximum Pressure Rating (PSI) | 2900 Pounds Per Square Inch |
Size | 1/4 Inch (-4 AN) |
Temperature Range (Deg F) | -15 To 400 Degree Fahrenheit |
Type | Female Half |
Use With | Transfer Engine Fuels/ Oils |
