Earl's Plumbing Brake Line Quick Disconnect - JE2703PM

Brand: Earl's Plumbing

Have a product question? Ask us
Part Number: JE2703PM
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by May 30

Retail: $624.74

Price: $594.99

You Save: $29.75

Includes Coupling

Includes Seal

Maximum Pressure Rating (PSI)

2900 Pounds Per Square Inch

3/16 Inch (-3 AN)

Temperature Range (Deg F)

-4 To 302 Degree Fahrenheit

Male Half

Use With

Transfer Brake Fluids

Share this page

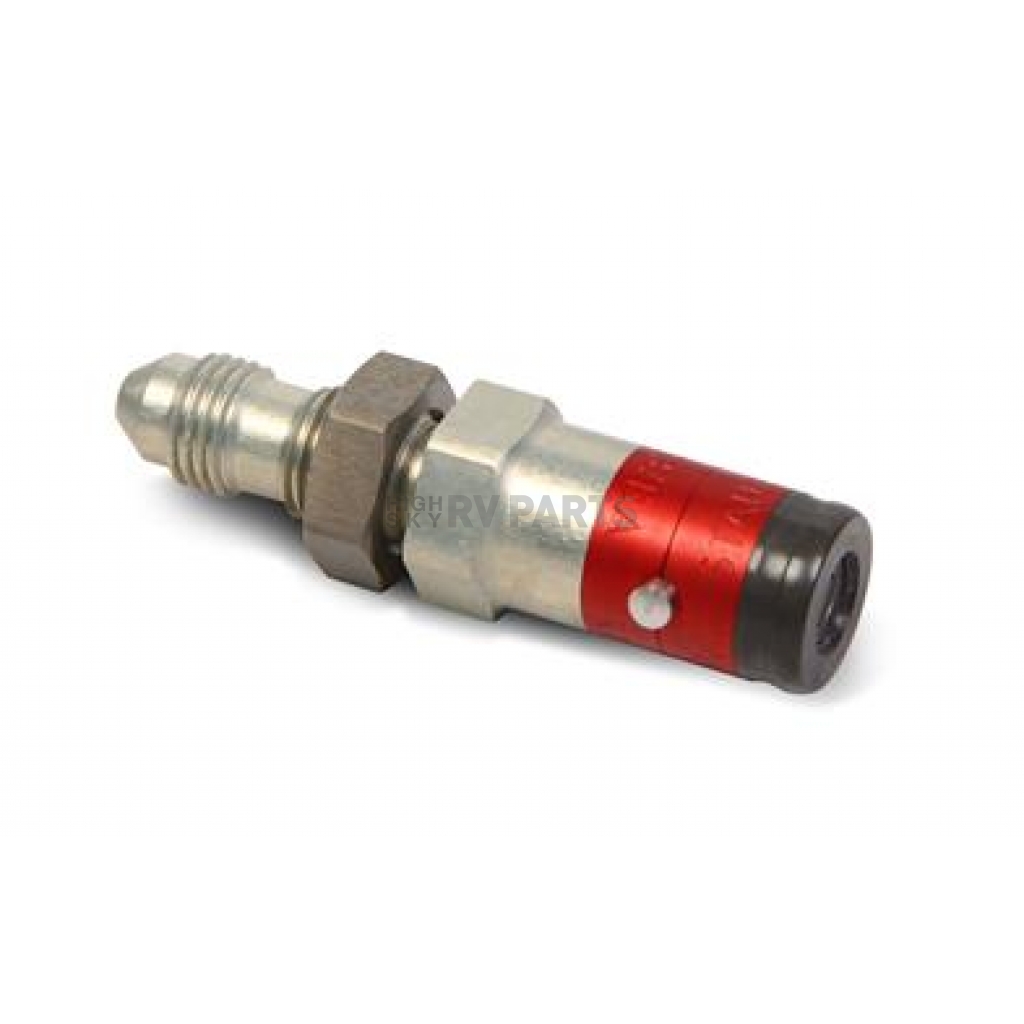

Earl's Plumbing Brake Line Quick Disconnect

Brake Line Quick Disconnect; Staubli; Used To Transfer Brake Fluids; -3 AN Size; Male Half Panel Mount; 2900 Pounds Per Square Inch Maximum Pressure; Aluminum Coupling/ EPDM Seal; -4 Degree Fahrenheit To +302 Degree Fahrenheit Temperature Range

MPN: JE2703PM

Staubli SPH aluminum dry break couplings are available to transfer brake fluids, engine fuels and engine oils. The quick twist of the bayonet locks the coupler together. Available in standard and panel mount body styles in three different flow sizes. SPH flush face break couplers have a minimum loss of fluid leakage or air inclusion with double shut off ends which eliminates the need to purge the system. Internal design with large inside diameter provides optimal flow within the minimum outside diameter. Staubli SPH couplers that use Fluorocarbon seals are for use with oils, fuels non-ethanol , mineral greases and nitrogen and have an operating temperature -15 Degree Fahrenheit To 400 Degree Fahrenheit. Ethylene-Propylene seals are designed to work with all Glycol base brake fluids with operating temperature -4 Degree Fahrenheit To 302 Degree Fahrenheit.

Use With: Transfer Brake Fluids

Type: Male Half

Size: 3/16 Inch (-3 AN)

Maximum Pressure Rating (PSI): 2900 Pounds Per Square Inch

Temperature Range (Deg F): -4 To 302 Degree Fahrenheit

Includes Coupling: Yes

Includes Seal: Yes

Features

Staubli SPH Aluminum Dry Break Couplings Are Available To Transfer Brake Fluids, Engine Fuels And Engine Oils
The Quick Twist Of The Bayonet Locks The Coupler Together
Available In Standard And Panel Mount Body Styles In Three Different Flow Sizes
SPH Flush Face Break Couplers Have A Minimum Loss Of Fluid Leakage Or Air Inclusion With Double Shut Off Ends Which Eliminates The Need To Purge The System
Internal Design With Large Inside Diameter Provides Optimal Flow Within The Minimum Outside Diameter
Staubli SPH Couplers That Use Fluorocarbon FPM Seals Are For Use With Oils, Fuels Non-Ethanol, Mineral Greases And Nitrogen
Ethylene-Propylene Seals Are Designed To Work With All Glycol Base Brake Fluids
Limited 90 Day Warranty

Specifications of Earl's Plumbing Brake Line Quick Disconnect - JE2703PM
Includes Coupling	Yes
Includes Seal	Yes
Maximum Pressure Rating (PSI)	2900 Pounds Per Square Inch
Size	3/16 Inch (-3 AN)
Temperature Range (Deg F)	-4 To 302 Degree Fahrenheit
Type	Male Half
Use With	Transfer Brake Fluids
