Eagle Specialty Connecting Rod Set - CRS68003D
Length (IN)
6.8 Inch
Material
Forged Steel
Number In Set
8
Pin Bore (IN)
0.99 Inch
Recommended Use
Chevy Big Block Engines
Rod Journal Size (IN)
2.2 Inch
Type
H-Beam
Weight (g)
805 Grams
Share this page

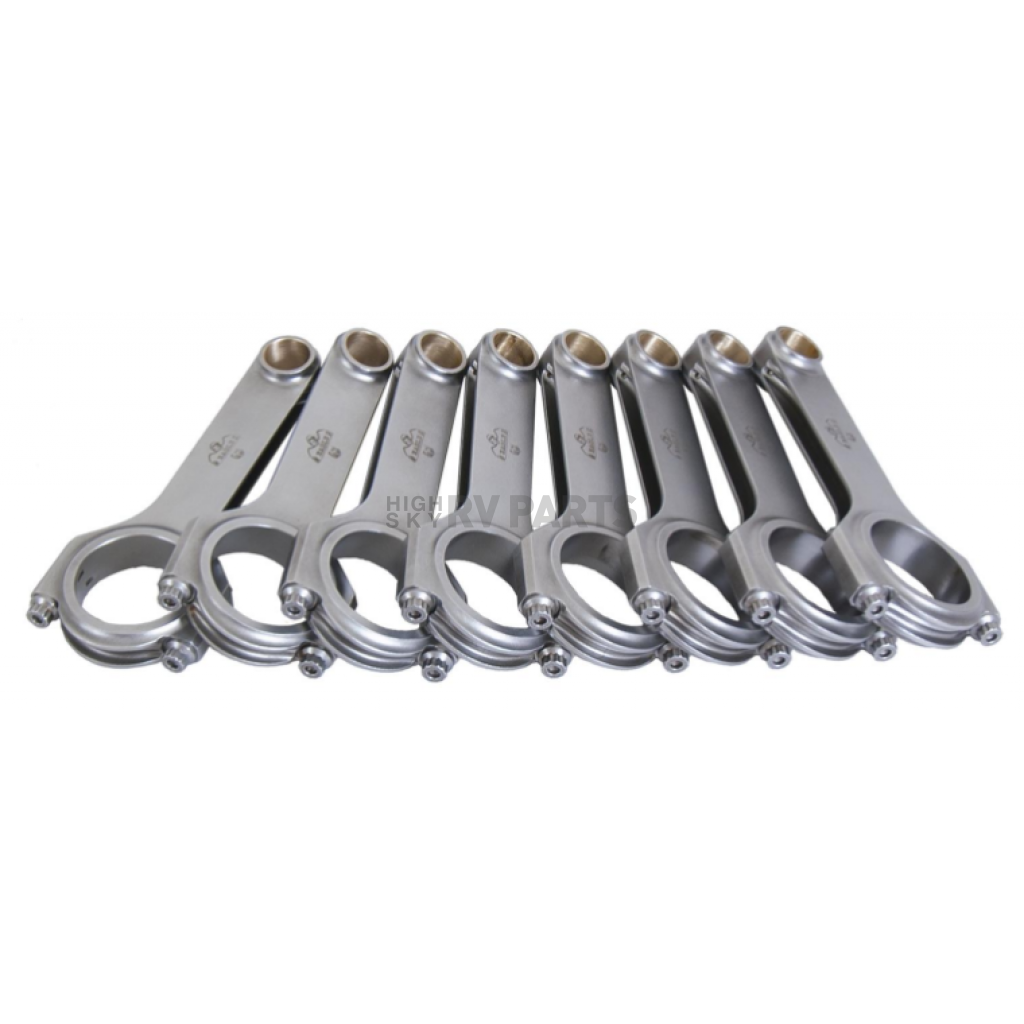

Eagle Specialty Connecting Rod Set
Connecting Rod Set; For Use With Big Block Chevy Engines; H-Beam; Forged Steel; 6.800 Inch Rod Length; 2.200 Inch Rod Journal; Set Of 8
MPN: CRS68003D

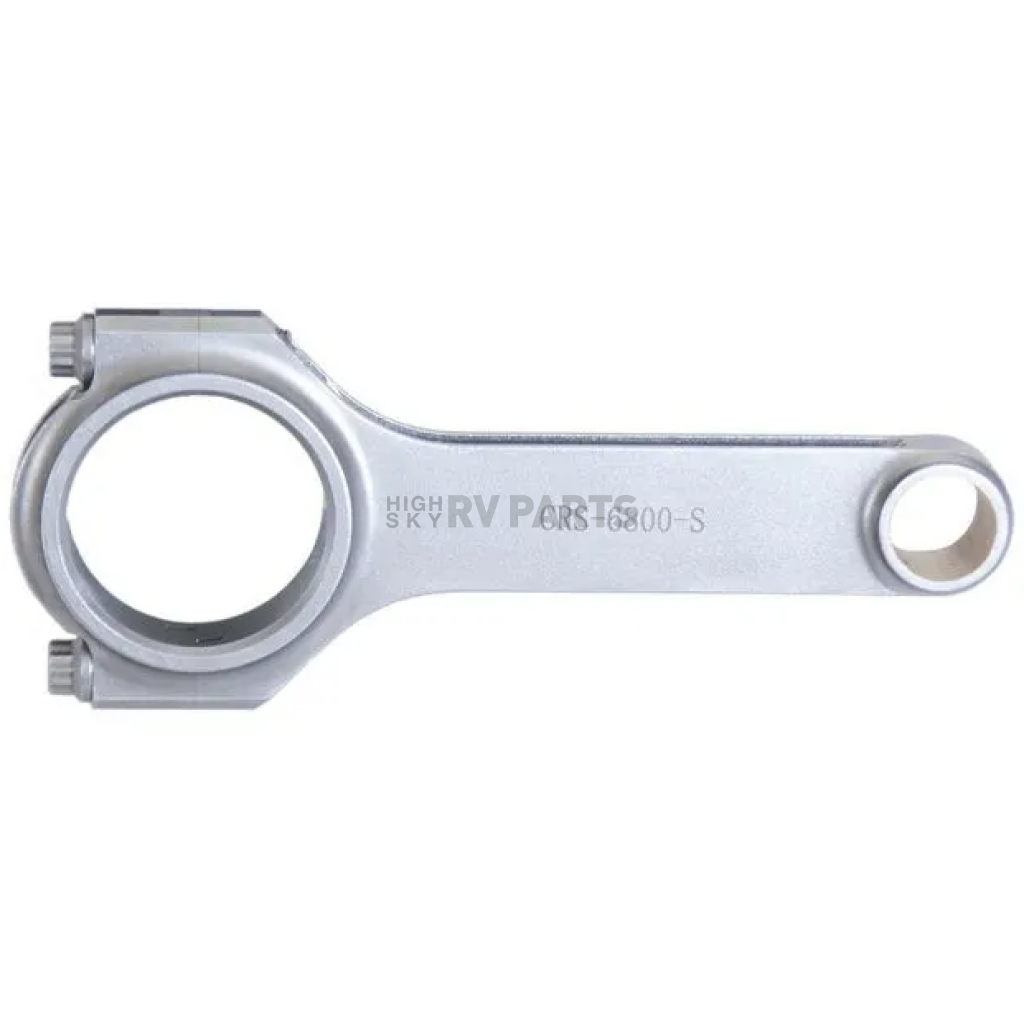

Current production Eagle H-beam rods all have the Eagle logo on the side of the beam as shown in this picture. Older production did not have this. It was implemented around 2003 to 2005 in response to one of our competitors using the same part numbers that we use. Another design feature is the shape of the area around the bolt and the ridge in the middle of the beam. This has always been our design. If yours are rounded and/or have no ridge then you do not have Eagle rods!
Recommended Use: Chevy Big Block Engines
Type: H-Beam
Material: Forged Steel
Length (IN): 6.8 Inch
Rod Journal Size (IN): 2.2 Inch
Pin Bore (IN): 0.99 Inch
Weight (g): 805 Grams
Number In Set: 8
Features
- Forged SAE 4340 Steel From 2 Piece Forging
- Alignment Sleeves For Precise Cap Location
- Sizing Performed With Sunnen Krossgrinding System
- Recommended For Use Up To 1500 Horsepower (With L19 Bolts)
- Limited 1 Year Warranty
Specifications of Eagle Specialty Connecting Rod Set - CRS68003D | |
Length (IN) | 6.8 Inch |
Material | Forged Steel |
Number In Set | 8 |
Pin Bore (IN) | 0.99 Inch |
Recommended Use | Chevy Big Block Engines |
Rod Journal Size (IN) | 2.2 Inch |
Type | H-Beam |
Weight (g) | 805 Grams |
1900-1900 Chevrolet Big Block 1965-1990 Gen IV
1900 Chevrolet Big Block 1965-1990 Gen IV
1900-1900 Chevrolet Big Block 1991-1995 Gen V
1900 Chevrolet Big Block 1991-1995 Gen V
1900-1900 Chevrolet Big Block 1996-2000 Gen VI
1900 Chevrolet Big Block 1996-2000 Gen VI
