Edelbrock Cylinder Head 60879
CNC-Machined
No
Combustion Chamber Volume (cc)
60 Cubic Centimeter
Condition
New
Engine Compatibility
Chevy Small Block 5.7L 350 Cubic Inch
Exhaust Port Location
Standard
Exhaust Runner Volume (CC)
65 Cubic Centimeter
Exhaust Valve Diameter (IN)
1.6 Inch
Finish
Satin
Includes Damper Spring
Yes
Includes Guideplates
Yes
Includes Rocker Arm Studs
Yes
Share this page

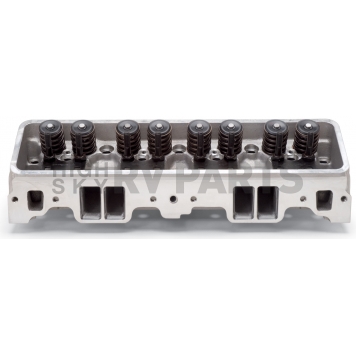

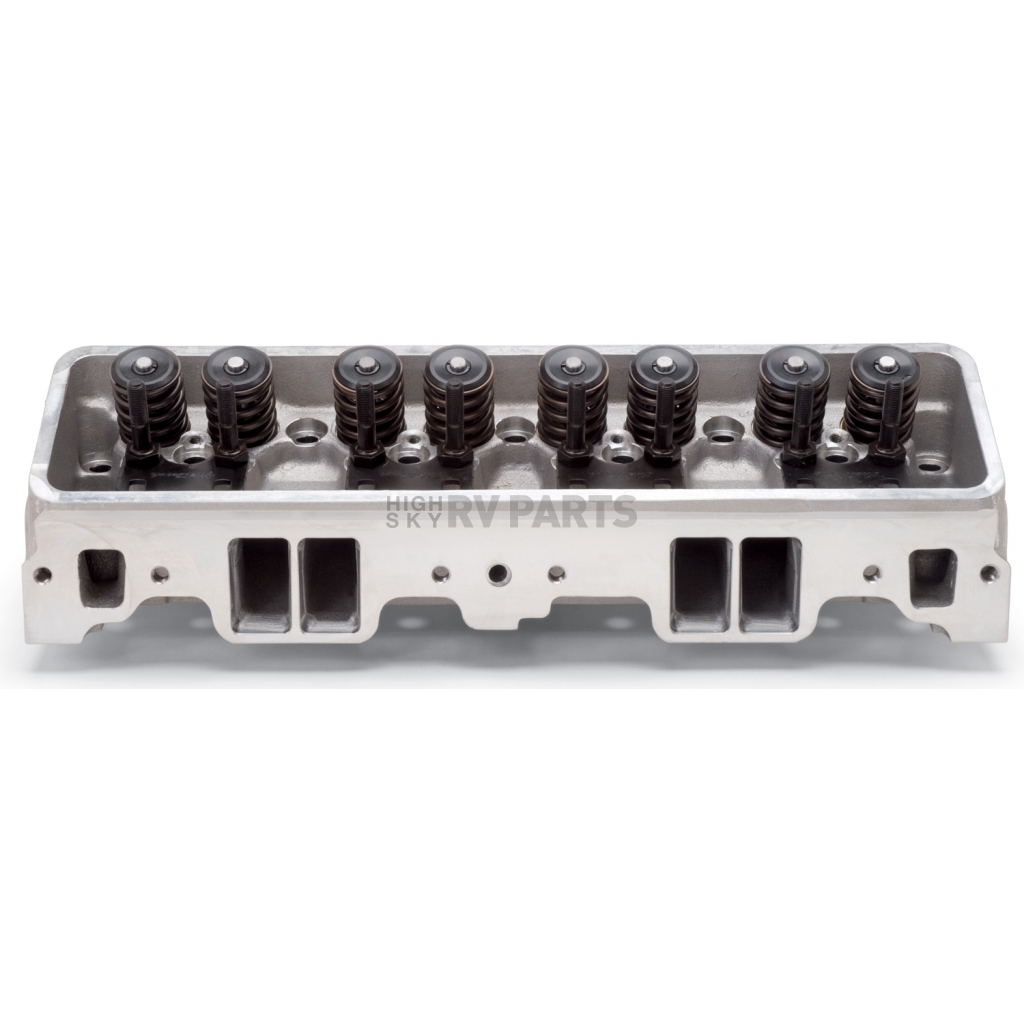

Edelbrock Cylinder Head
Cylinder Head; Assembled; Small Block Chevy 350 TPI/ Intake Bolt Pattern 90 Degree Angle On All Bolts; Natural Aluminum; 165 CC Intake Port; 65 CC Exhaust Port; 60 CC Chamber Volume; 2.02 Inch Intake Valve; 1.60 Inch Exhaust Valve; 1.46 Inch Spring Diameter; Single; With Pushrod Guides; Rocker Studs
MPN: 60879
Designed for Tuned Port Injected (T.P.I) 5.7L small block Chevy corvette engines originally equipped with center bolt valve covers, these performer cylinder heads are available fully assembled and ready to Bolt-On or bare for use with your own Valve train components. Features include high quality stainless steel 2.02 Inch intake and 1.60 Inch exhaust valves, 60 Cubic Centimeters combustion chambers and high flow 165 Cubic Centimeters intake and 65 Cubic Centimeters exhaust ports. The high velocity intake and exhaust runners are hand blended in the bowl area and the intake entries and exhaust exits are CNC profiled for increased Air-Flow. These heads include adjustable rocker stud and guide plate Set-Up for use with adjustable rockers. The casting is manufactured of A356 aluminum and heat treated to T6 spec for superior quality. An extra thick 5/8 Inch deck and Heli-Coil threaded inserts offer improved durability. Performer center bolt cylinder heads are 50 state street legal and accept factory center bolt valve covers. The intake bolt pattern utilizes the (straight) 90 Degree angle on the two center bolts
Condition: New
Engine Compatibility: Chevy Small Block 5.7L 350 Cubic Inch
Style: Assembled
Finish: Satin
Material: Aluminum
CNC-Machined: No
Combustion Chamber Volume (cc): 60 Cubic Centimeter
Intake Runner Volume (CC): 165 Cubic Centimeter
Exhaust Runner Volume (CC): 65 Cubic Centimeter
Port Shape: Rectangular
Intake Port Location: Standard
Exhaust Port Location: Standard
Intake Valve Diameter (IN): 2.02 Inch
Exhaust Valve Diameter (IN): 1.6 Inch
Includes Valves: Yes
Spark Plug Angle: Angled
Rocker Arm Nut Thread Size: 3/8 Inch
Includes Rocker Arm Studs: Yes
Valve Lock Type: 7 Degree
Valve Stem Seal Type: Positive Stop
Valve Guide Material: Manganese Bronze
Number Of Springs Per Valve: 1
Valve Seats Machined: Yes
Steam Holes Drilled: No
Machined For O-Ring: No
Includes Guideplates: Yes
Includes Damper Spring: Yes
Features
- Intake And Exhaust Runners Are Hand Blended In The Bowl Area And The Intake Entries And Exhaust Exits Are CNC Profiled For Increased Air Flow
- The Casting Is Manufactured From A356 Aluminum And Heat Treated To T6 Spec For Superior Quality
- An Extra Thick 5/8 Inch Deck And Heli-Coil Threaded Inserts Offer Improved Durability
- Limited 1 Year Warranty
| Specifications of Edelbrock Cylinder Head 60879 | |
| CNC-Machined | No |
| Combustion Chamber Volume (cc) | 60 Cubic Centimeter |
| Condition | New |
| Engine Compatibility | Chevy Small Block 5.7L 350 Cubic Inch |
| Exhaust Port Location | Standard |
| Exhaust Runner Volume (CC) | 65 Cubic Centimeter |
| Exhaust Valve Diameter (IN) | 1.6 Inch |
| Finish | Satin |
| Includes Damper Spring | Yes |
| Includes Guideplates | Yes |
| Includes Rocker Arm Studs | Yes |
| Includes Valves | Yes |
| Intake Port Location | Standard |
| Intake Runner Volume (CC) | 165 Cubic Centimeter |
| Intake Valve Diameter (IN) | 2.02 Inch |
| Machined For O-Ring | No |
| Material | Aluminum |
| Number Of Springs Per Valve | 1 |
| Port Shape | Rectangular |
| Rocker Arm Nut Thread Size | 3/8 Inch |
| Spark Plug Angle | Angled |
| Steam Holes Drilled | No |
| Style | Assembled |
| Valve Guide Material | Manganese Bronze |
| Valve Lock Type | 7 Degree |
| Valve Seats Machined | Yes |
| Valve Stem Seal Type | Positive Stop |
1986 Chevrolet Corvette
1987 Chevrolet Corvette
1988 Chevrolet Corvette
1989 Chevrolet Corvette
1990 Chevrolet Corvette
1991 Chevrolet Corvette
1987 Chevrolet Corvette
1988 Chevrolet Corvette
1989 Chevrolet Corvette
1990 Chevrolet Corvette
1991 Chevrolet Corvette
1900-1900 Chevrolet Small Block 1955-1986
1900 Chevrolet Small Block 1955-1986
1900-1900 Chevrolet Small Block 1987-1998 (OE Roller)
1900 Chevrolet Small Block 1987-1998 (OE Roller)
