CSF Radiator 3644
Color
Gray
Core Depth (IN)
1-1/4 Inch
Core Height (IN)
30-1/16 Inch
Core Length (IN)
19-11/16 Inch
Core Material
Aluminum
Core Rows
One
Flow Direction
Downflow
Includes Fittings
No
Inlet Hose Location
Top Left
Inlet Size (IN)
1-1/4 Inch
Outlet Hose Location
Left Bottom
Share this page
CSF Radiator

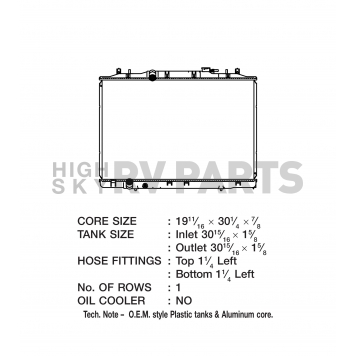

Radiator; Core Dimensions 19-11/16 Inch Length x 30-1/16 Inch Width x 1-1/4 Inch Depth; Single Core Row; Downflow; Aluminum Core With Plastic Tanks; 1-1/4 Inch Top Left Inlet Fitting x Left Bottom Hose Connections; Without Radiator Cap
MPN: 3644
CSF offers the widest variety of automotive radiator models servicing over 3,200 applications including every brand from Acura to Volkswagen. Whether your radiator is Copper-Brass, Plastic-Copper-Brass, Plastic-Aluminum, or All Aluminum, CSF has you covered with the same materials and style as OE. CSF manufactures the highest quality aftermarket replacement radiators, with the strongest and most efficient components available in the industry. All CSF radiators undergo a rigorous testing process in our state-of-the-art testing lab.
Flow Direction: Downflow
Core Rows: One
Core Length (IN): 19-11/16 Inch
Core Height (IN): 30-1/16 Inch
Core Depth (IN): 1-1/4 Inch
Core Material: Aluminum
Inlet Hose Location: Top Left
Inlet Size (IN): 1-1/4 Inch
Outlet Hose Location: Left Bottom
Color: Gray
Tank Material: Plastic
With Radiator Cap: No
With Transmission Cooler: No
Includes Fittings: No
Features
- CNC Machined Brackets And Fittings
- B-Tube Technology
- High Performance Multi-Louvered Fin
- Racing Style Aluminum Drain Plug
- OE Radial And Deep Drawn Aluminum End Tanks
- Wind Tunnel, Burst Pressure, And Vibration Testing
- Drop-In Fitment Requiring No Modifications
- 1 Hour Hand Polish Mirror Finish
- Wind Tunnel Tested For Optimal Radiator Core Cooling Efficiency. Burst Pressure And Impulse Cycle Tested For Strength. Salt Spray Tested For Corrosion Protection
- Limited 2 Year Warranty
Specifications of CSF Radiator 3644 | |
Color | Gray |
Core Depth (IN) | 1-1/4 Inch |
Core Height (IN) | 30-1/16 Inch |
Core Length (IN) | 19-11/16 Inch |
Core Material | Aluminum |
Core Rows | One |
Flow Direction | Downflow |
Includes Fittings | No |
Inlet Hose Location | Top Left |
Inlet Size (IN) | 1-1/4 Inch |
Outlet Hose Location | Left Bottom |
Tank Material | Plastic |
With Radiator Cap | No |
With Transmission Cooler | No |
2014 Acura MDX
2015 Acura MDX
2016 Acura MDX
2017 Acura MDX
2018 Acura MDX
2019 Acura MDX
2020 Acura MDX
2015 Acura MDX
2016 Acura MDX
2017 Acura MDX
2018 Acura MDX
2019 Acura MDX
2020 Acura MDX
2019 Honda Passport
2020 Honda Passport
2020 Honda Passport
2016 Honda Pilot
2017 Honda Pilot
2018 Honda Pilot
2019 Honda Pilot
2020 Honda Pilot
2021 Honda Pilot
2017 Honda Pilot
2018 Honda Pilot
2019 Honda Pilot
2020 Honda Pilot
2021 Honda Pilot
2017 Honda Ridgeline
2018 Honda Ridgeline
2019 Honda Ridgeline
2020 Honda Ridgeline
2021 Honda Ridgeline
2022 Honda Ridgeline
2018 Honda Ridgeline
2019 Honda Ridgeline
2020 Honda Ridgeline
2021 Honda Ridgeline
2022 Honda Ridgeline
