Advanced FLOW Engineering Intercooler - 4620152B
Color
Silver
Construction
Bar And Plate
Core Depth (IN)
3/16 Inch
Inlet Size (IN)
2-1/2 Inch
Inlet/Outlet Neck Location
Center
Material
Aluminum
Maximum Horsepower (HP)
14 Horsepower
Outlet Size (IN)
2-1/2 Inch
Type
Air To Air
Share this page
Advanced FLOW Engineering Intercooler
Intercooler; Blade Runner; Air To Air; 5 Inch Bar and Plate Design; 2-1/2 Inch Inlet/ 2-1/2 Outlet
MPN: 4620152B

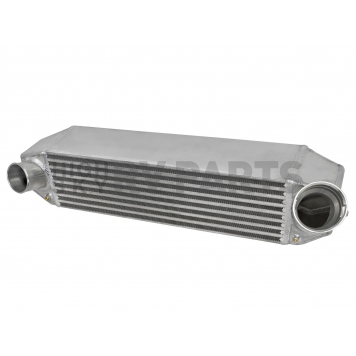

This BladeRunner Intercooler represents the next generation of intercoolers. Designed specifically for the 2007 to 2010 BMW 335i (E9X) L6-3.0 Liter (tt) N54 engines, this BladeRunner intercooler utilizes a 5 Inch bar and plate core design. This design outflows the factory tube and fin core design, while the 3/16 Inch TIG-Welded end tanks offer superior strength and durability. The unique BladeRunner end tanks are constructed out of 3/16 Inch thick aluminum plates. The use of the bar and plate core design allows for greater airflow and increased heat dissipation over the much smaller tube and fin design used by the factory. 100 Percent TIG-Welded inside and out by a certified craftsmen for strength and durability. TIG-Welding provides the strongest welds while reducing stress cracks. The BladeRunner Intercooler is test pressure rated at 200 PSI. Utilizes the factory mounting locations for a hassle-free installation. The billet 2-1/2 Inch intercooler inlet utilizes a factory style quick connect to assure compatibility with the factory hot side inlet tube. The supplied cold side tube retains the factory style throttle body quick connect and retains the factory diverter valve connections.
Type: Air To Air
Maximum Horsepower (HP): 14 Horsepower
Construction: Bar And Plate
Inlet Size (IN): 2-1/2 Inch
Outlet Size (IN): 2-1/2 Inch
Core Depth (IN): 3/16 Inch
Inlet/Outlet Neck Location: Center
Color: Silver
Material: Aluminum
Features
- Lowers Manifold Intake Air Temperature By Up To 10 Degrees
- Billet Aluminum Inlet And Outlet For Superior Strength And Durability
- Incorporates The Factory Style Quick Connect Adaptor For The Hot Side Intercooler Tube And Throttle Body Connection
- 100 Percent TIG Welded By Certified Craftsmen For Strength And Durability
- Bar And Plate Core Design That Is 29 Percent Larger Than Stock
- NPT Ports, Are Provided For Connecting Pressure Sensors Or Water Methanol Injection

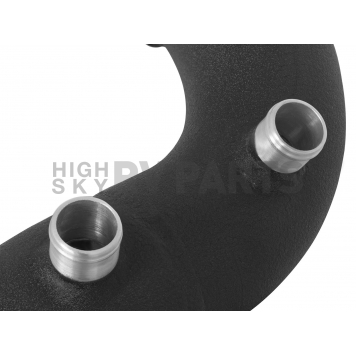

- Upper Cold-Side Mandrel-Bent Aluminum Tubing Powder-Coated Wrinkle-Black For Heat Resistance

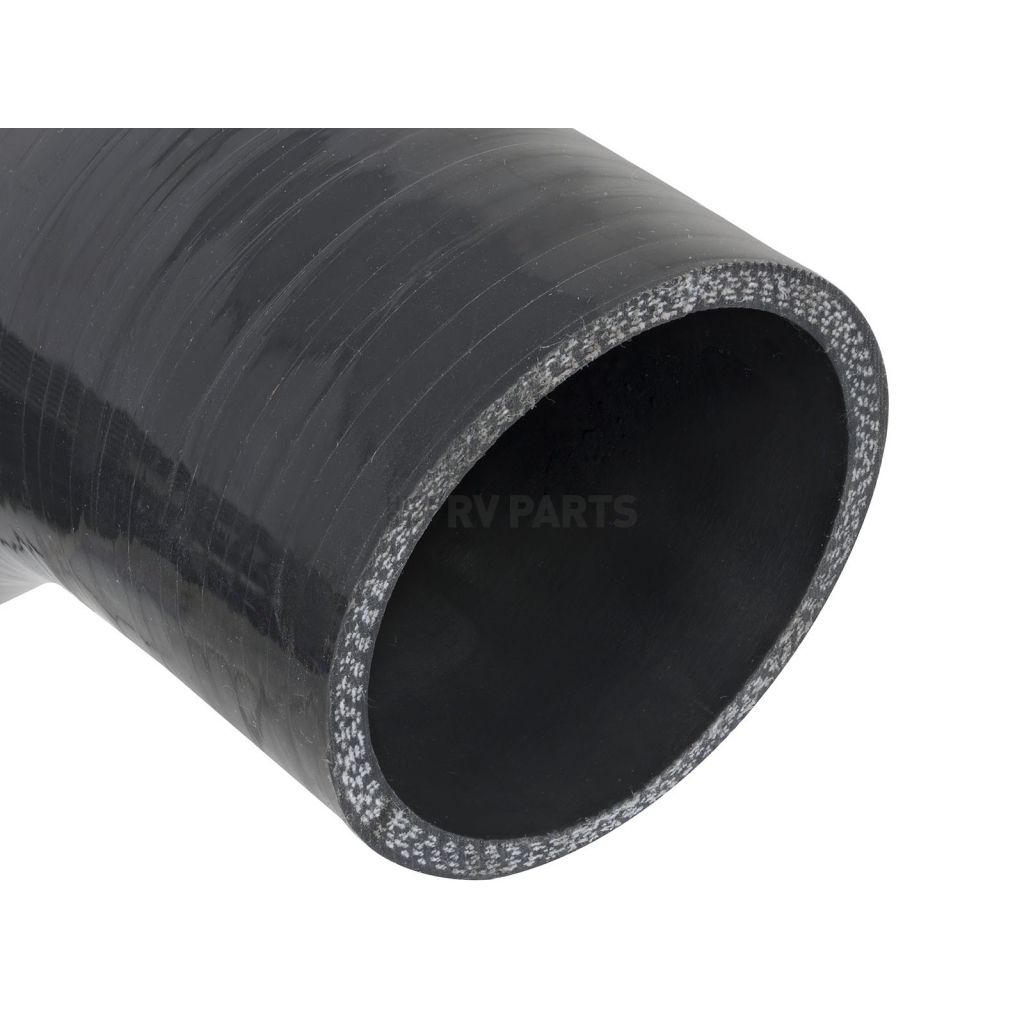

- 5-Ply Polyester Reinforced Silicone Lower Cold-Side Hose
- Absolutely No Cutting Or Modifications Are Needed For The Installation
- Limited 2 Year Warranty
| Specifications of Advanced FLOW Engineering Intercooler - 4620152B | |
| Color | Silver |
| Construction | Bar And Plate |
| Core Depth (IN) | 3/16 Inch |
| Inlet Size (IN) | 2-1/2 Inch |
| Inlet/Outlet Neck Location | Center |
| Material | Aluminum |
| Maximum Horsepower (HP) | 14 Horsepower |
| Outlet Size (IN) | 2-1/2 Inch |
| Type | Air To Air |
2007 BMW 335i
2008 BMW 335i
2009 BMW 335i
2010 BMW 335i
2008 BMW 335i
2009 BMW 335i
2010 BMW 335i
