Crane Valve Spring - 9989312

Brand: Crane Engine Parts Manufacturer
0 reviews
  • Have a product question? Ask us
  • Part Number: 9989312
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 3 - 4 Weeks
Retail: $141.74
Price: $134.99
You Save: $6.75
Coil Bind Height (IN)
1.08 Inch
Includes Damper
No
Inside Diameter Of Inner Spring (IN)
0.803 Inch
Inside Diameter Of Outer Spring (IN)
1.075 Inch
Installed Height (IN)
1.85 Inch
Outside Diameter Of Outer Spring (IN)
1.46 Inch
Quantity
Set Of 12
Spring Rate
391 Pounds Per Inch
Type
Dual
Share this page

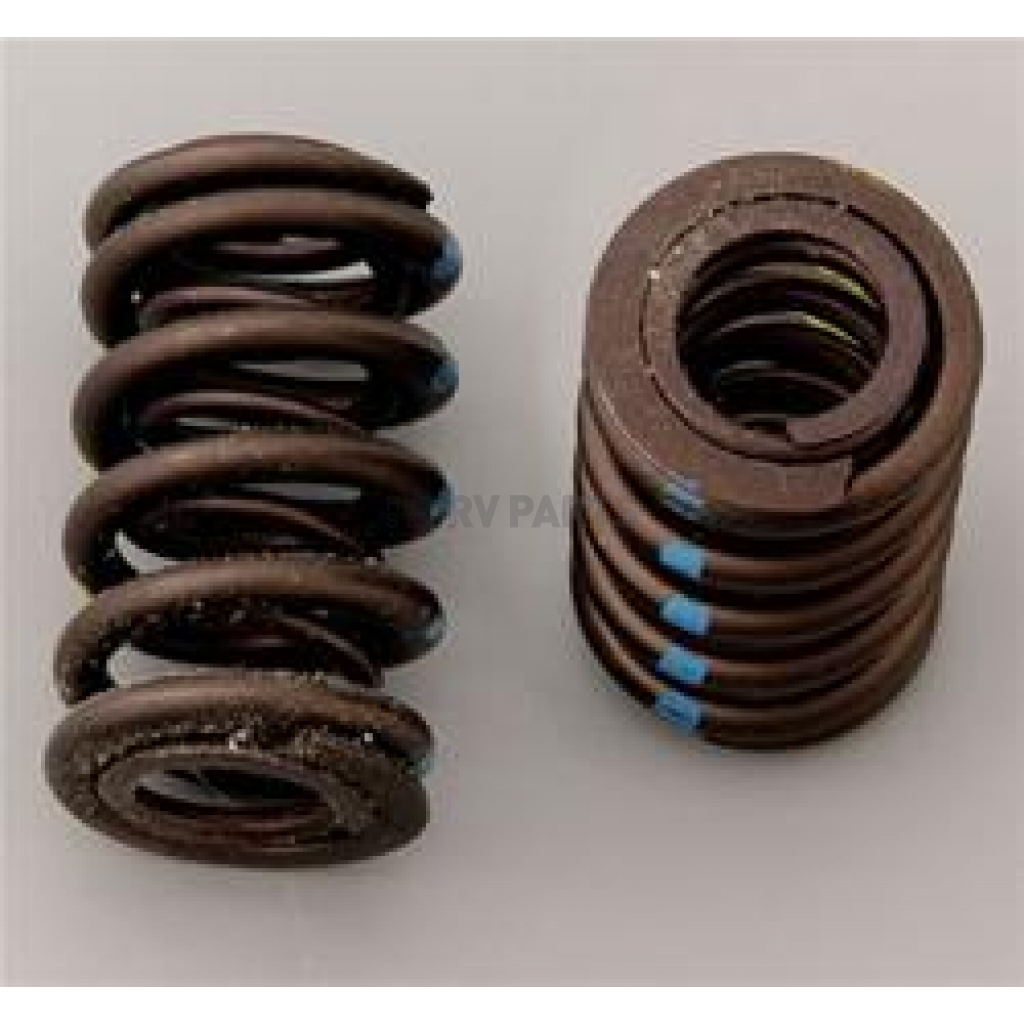

Crane Valve Spring

Valve Spring; For Use With Flat Tappet Racing Cams; Double Spring; Without Damper; 1.460 Inch Outside Diameter/ 0.803 Inch Inside Diameter; 391 Pounds Per Inch Spring Rate; 1.850 Inch Installed Height; Set Of 12

MPN: 9989312

Crane offers a huge variety of premium grade, harmonically controlled single, double and triple valve spring packages to provide the optimum pressure and installed height for most any application. Valve springs are at least as important as any other major performance component in an engine. At Crane, we design springs to maximize the performance of Crane Cams. In doing so, we put the resonant frequency outside of the intended operating range of the spring. At Crane Cams, we constantly test and evaluate various cam lobe profiles versus spring combinations, so that we can give you the right spring recommendations for your cam. By experimenting with various valve spring combinations you will probably find the most power for your money and/or time. In addition, you just might cure that “fuel system” or “ignition system” problem you thought you had!
Type: Dual
Includes Damper: No
Installed Height (IN): 1.85 Inch
Coil Bind Height (IN): 1.08 Inch
Inside Diameter Of Inner Spring (IN): 0.803 Inch
Inside Diameter Of Outer Spring (IN): 1.075 Inch
Outside Diameter Of Outer Spring (IN): 1.46 Inch
Spring Rate: 391 Pounds Per Inch
Quantity: Set Of 12

Features

  • Valve Springs Are Heat-Treated
  • Valve Springs Are Manufactured From Super Sophisticated Alloys Of Steel
  • Highly Stressed Design
  • Springs Are Designed To Maximize The Performance Of Crane Cams
  • Limited 1 Year Warranty For Street Use And No Warranty For Race Use
Specifications of Crane Valve Spring - 9989312
Coil Bind Height (IN) 1.08 Inch
Includes Damper No
Inside Diameter Of Inner Spring (IN) 0.803 Inch
Inside Diameter Of Outer Spring (IN) 1.075 Inch
Installed Height (IN) 1.85 Inch
Outside Diameter Of Outer Spring (IN) 1.46 Inch
Quantity Set Of 12
Spring Rate 391 Pounds Per Inch
Type Dual
