Crane Valve Spring - 9684816

Brand: Crane Engine Parts Manufacturer
0 reviews
  • Have a product question? Ask us
  • Part Number: 9684816
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 15
Retail: $983.84
Price: $936.99
You Save: $46.85
Includes Damper
No
Inside Diameter Of Inner Spring (IN)
0.634 Inch
Installed Height (IN)
2.100 Inch
Material
Steel
Outside Diameter Of Outer Spring (IN)
1.675 Inch
Quantity
Set Of 16
Spring Rate
684 Pounds Per Inch
Type
Triple
Share this page

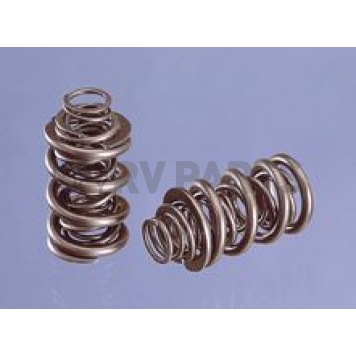

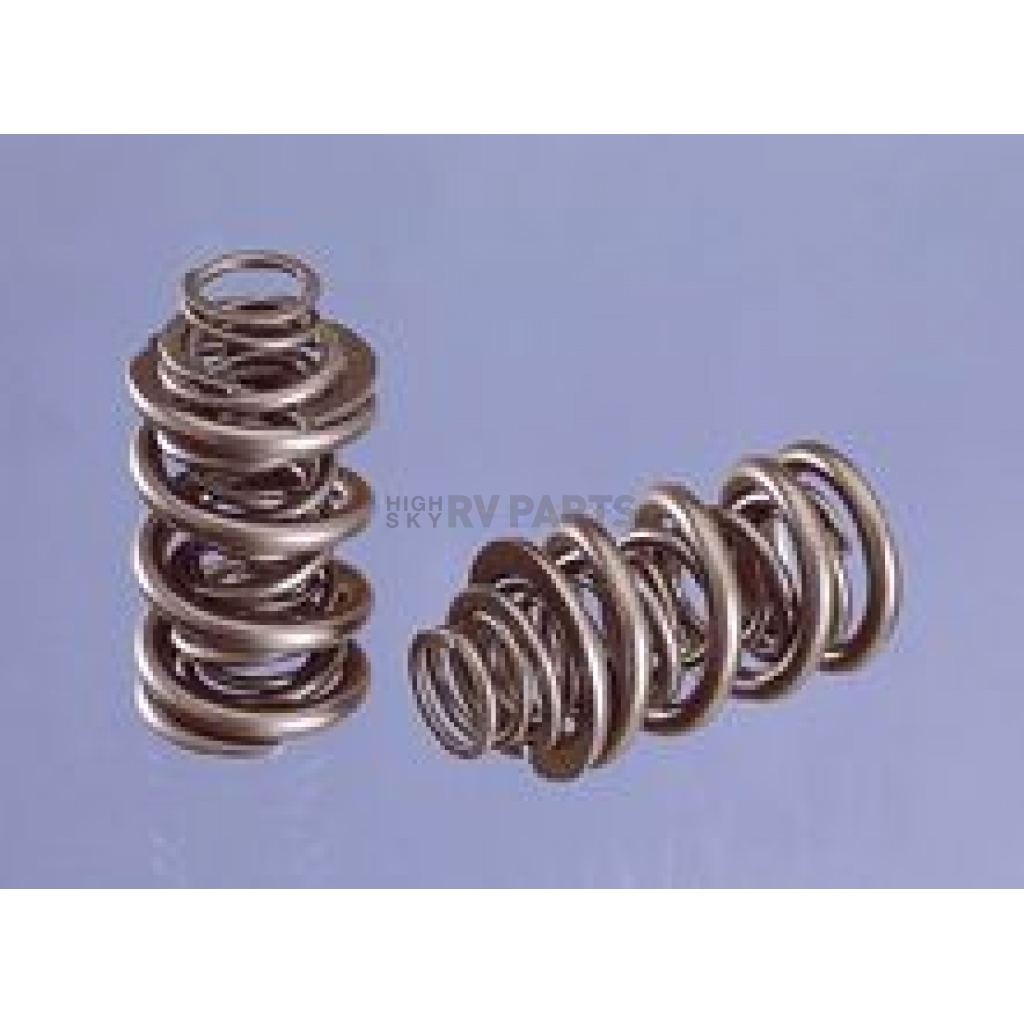

Crane Valve Spring

Valve Spring; For Use With Pro Drag Racing Applications; Triple Springs; Without Damper; 1.675 Inch Outside Diameter/ 0.634 Inch Inside Diameter; 684 Pounds Per Inch Spring Rate; 2.100 Inch Installed Height; Set Of 16

MPN: 9684816

Crane offers a huge variety of premium grade, harmonically controlled single, double and triple valve spring packages to provide the optimum pressure and installed height for most any application. Valve springs are at least as important as any other major performance component in an engine. At Crane, we design springs to maximize the performance of Crane Cams. In doing so, we put the resonant frequency outside of the intended operating range of the spring. At Crane Cams, we constantly test and evaluate various cam lobe profiles versus spring combinations, so that we can give you the right spring recommendations for your cam. By experimenting with various valve spring combinations you will probably find the most power for your money and/or time. In addition, you just might cure that “fuel system” or “ignition system” problem you thought you had!
Type: Triple
Material: Steel
Includes Damper: No
Installed Height (IN): 2.100 Inch
Inside Diameter Of Inner Spring (IN): 0.634 Inch
Outside Diameter Of Outer Spring (IN): 1.675 Inch
Spring Rate: 684 Pounds Per Inch
Quantity: Set Of 16

Features

  • Valve Springs Are Heat-Treated
  • Valve Springs Are Manufactured From Super Sophisticated Alloys Of Steel
  • Highly Stressed Design
  • Springs Are Designed To Maximize The Performance Of Crane Cams
  • No Supplier Warranty
Specifications of Crane Valve Spring - 9684816
Includes Damper No
Inside Diameter Of Inner Spring (IN) 0.634 Inch
Installed Height (IN) 2.100 Inch
Material Steel
Outside Diameter Of Outer Spring (IN) 1.675 Inch
Quantity Set Of 16
Spring Rate 684 Pounds Per Inch
Type Triple
