COMP Cams Valve Spring - 26097-1

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 26097-1
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 3 - 4 Weeks
Retail: $97.64
Price: $92.99
You Save: $4.65
Coil Bind Height (IN)
1.135 Inch
Engine Compatibility
Universal
Finish
Natural
Includes Damper
Yes
Inside Diameter Of Inner Spring (IN)
0.731 Inch
Inside Diameter Of Outer Spring (IN)
1-1/8 Inch
Installed Height (IN)
2 Inch
Material
Steel
Outside Diameter Of Outer Spring (IN)
1.539 Inch
Quantity
Single
Spring Rate
490 Pounds Per Inch
Share this page

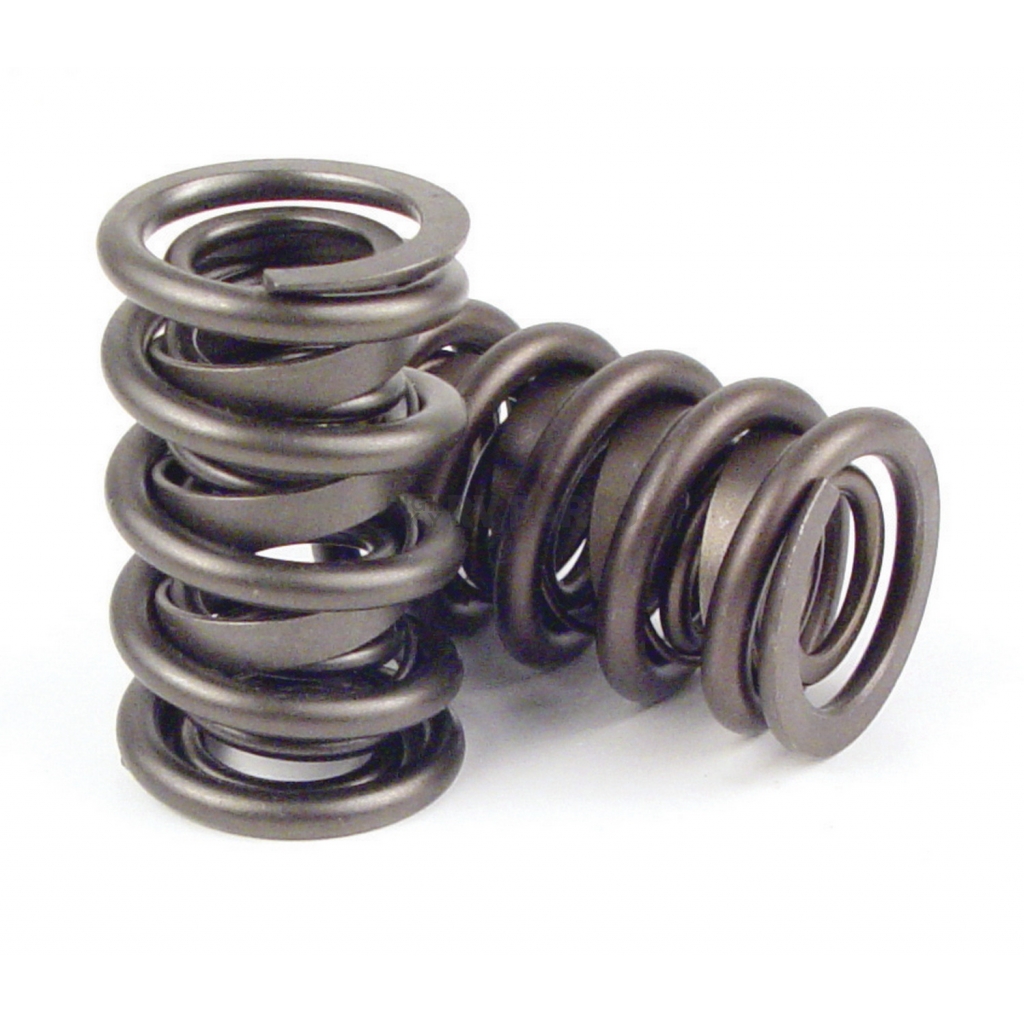

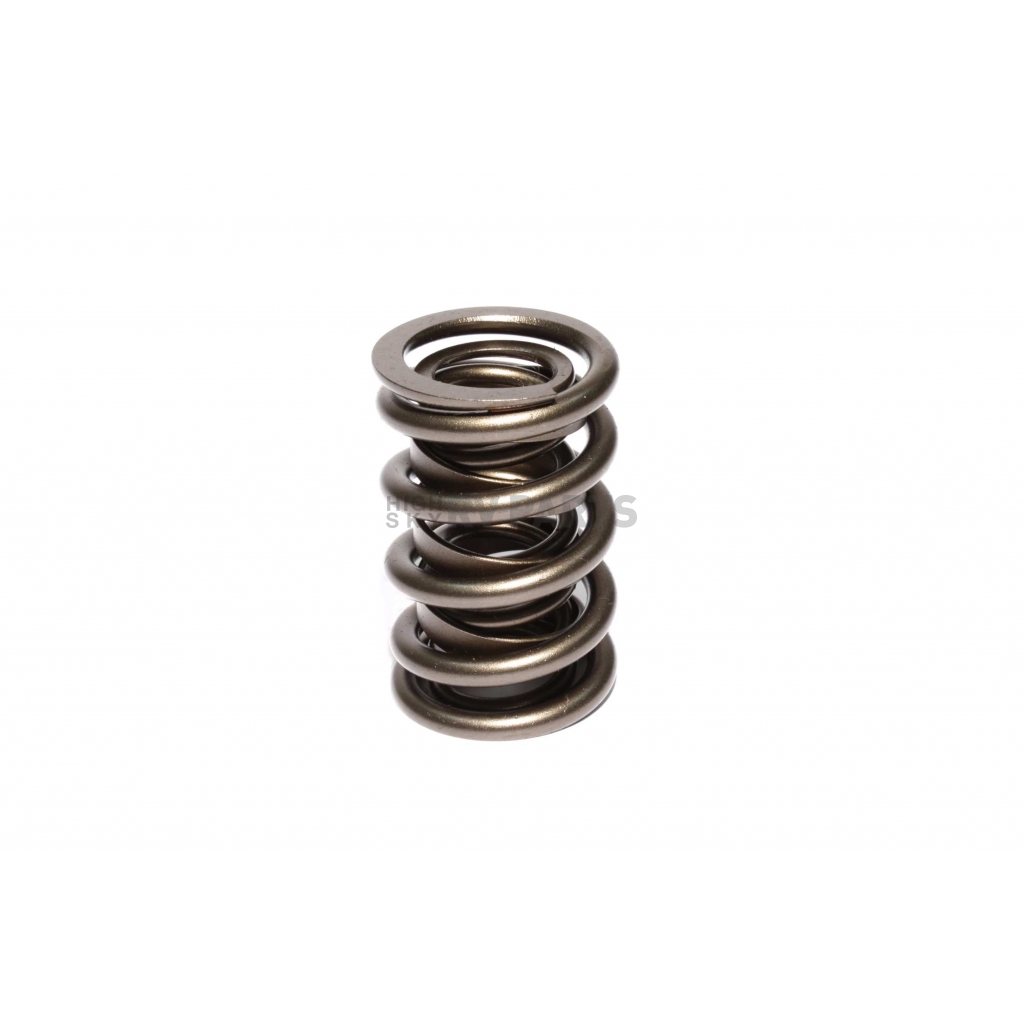

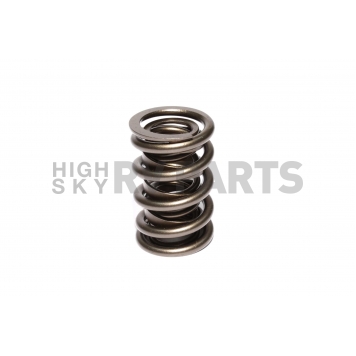

COMP Cams Valve Spring

Valve Spring; Elite Race; Universal; Steel; Dual Spring; With Dampener; 1.639 Inch Outside Diameter/ 0.731 Inch Inside Diameter; 490 Pounds Per Inch Spring Rate; 2.000 Inch Installed Height; Natural; Single

MPN: 260971

Elite Race™ Double Valve Springs from COMP Cams(R) have a 0.75 Inch and maximum lift and outside diameter of 1.68 Inch. Engineered with enhanced processing for middle level fatigue resistance and designed to work with roller cams, they are widely used in Dirt or Asphalt Late Model and Sportsman racing, as well as marine racing. These Elite Race™ Valve Springs will also work in some high end flat tappet applications. The metallurgists at COMP Cams(R) scrutinize every piece of metal utilized in the creation of Elite Race Valve Springs to make sure they are of unsurpassable quality because fissures within the metal of standard spring wire, caused by molecular contaminants, are the weakest link in valve spring construction. These fissures appear to be immense under the Scanning Electron Microscope but in fact, are just microns wide. Diminishing the occurrence of these fissures in our valve spring steel is the COMP Cams(R) standard when selecting materials.
Engine Compatibility: Universal
Type: Dual
Finish: Natural
Material: Steel
Includes Damper: Yes
Installed Height (IN): 2 Inch
Coil Bind Height (IN): 1.135 Inch
Inside Diameter Of Inner Spring (IN): 0.731 Inch
Inside Diameter Of Outer Spring (IN): 1-1/8 Inch
Outside Diameter Of Outer Spring (IN): 1.539 Inch
Spring Rate: 490 Pounds Per Inch
Quantity: Single

Features

  • Limited 1 Year Warranty
Specifications of COMP Cams Valve Spring - 26097-1
Coil Bind Height (IN) 1.135 Inch
Engine Compatibility Universal
Finish Natural
Includes Damper Yes
Inside Diameter Of Inner Spring (IN) 0.731 Inch
Inside Diameter Of Outer Spring (IN) 1-1/8 Inch
Installed Height (IN) 2 Inch
Material Steel
Outside Diameter Of Outer Spring (IN) 1.539 Inch
Quantity Single
Spring Rate 490 Pounds Per Inch
Type Dual
