COMP Cams Valve Spring - 26099-1

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 26099-1
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 3 - 4 Weeks
Retail: $83.99
Price: $79.99
You Save: $4.00
Coil Bind Height (IN)
1.184 Inch
Engine Compatibility
Universal
Finish
Natural
Includes Damper
Yes
Inside Diameter Of Inner Spring (IN)
0.769 Inch
Inside Diameter Of Outer Spring (IN)
1.175 Inch
Installed Height (IN)
2.05 Inch
Material
Steel
Outside Diameter Of Outer Spring (IN)
1-5/8 Inch
Quantity
Single
Spring Rate
561 Pounds Per Inch
Share this page

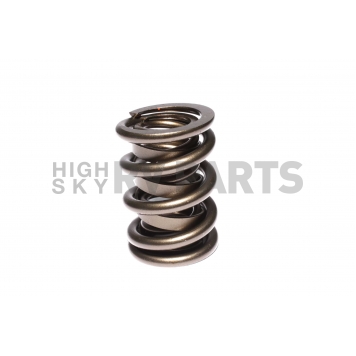

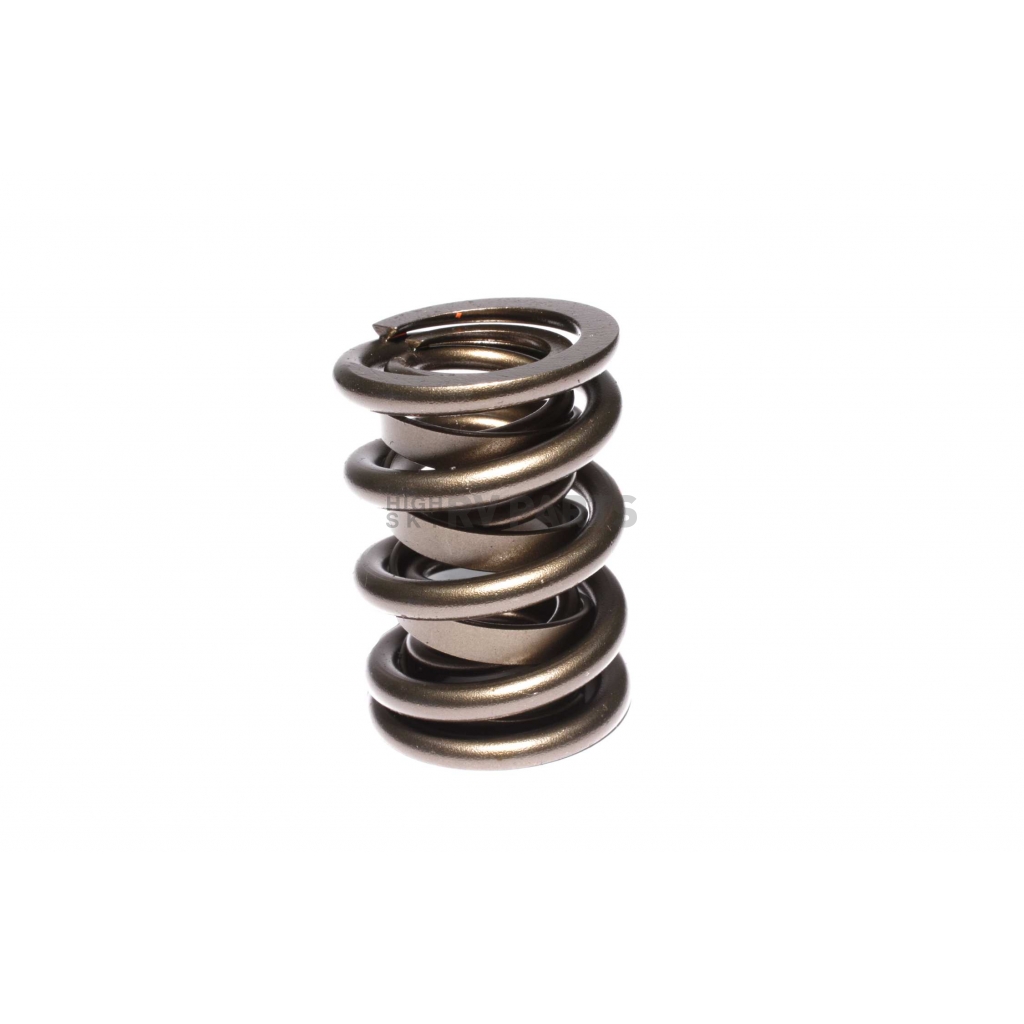

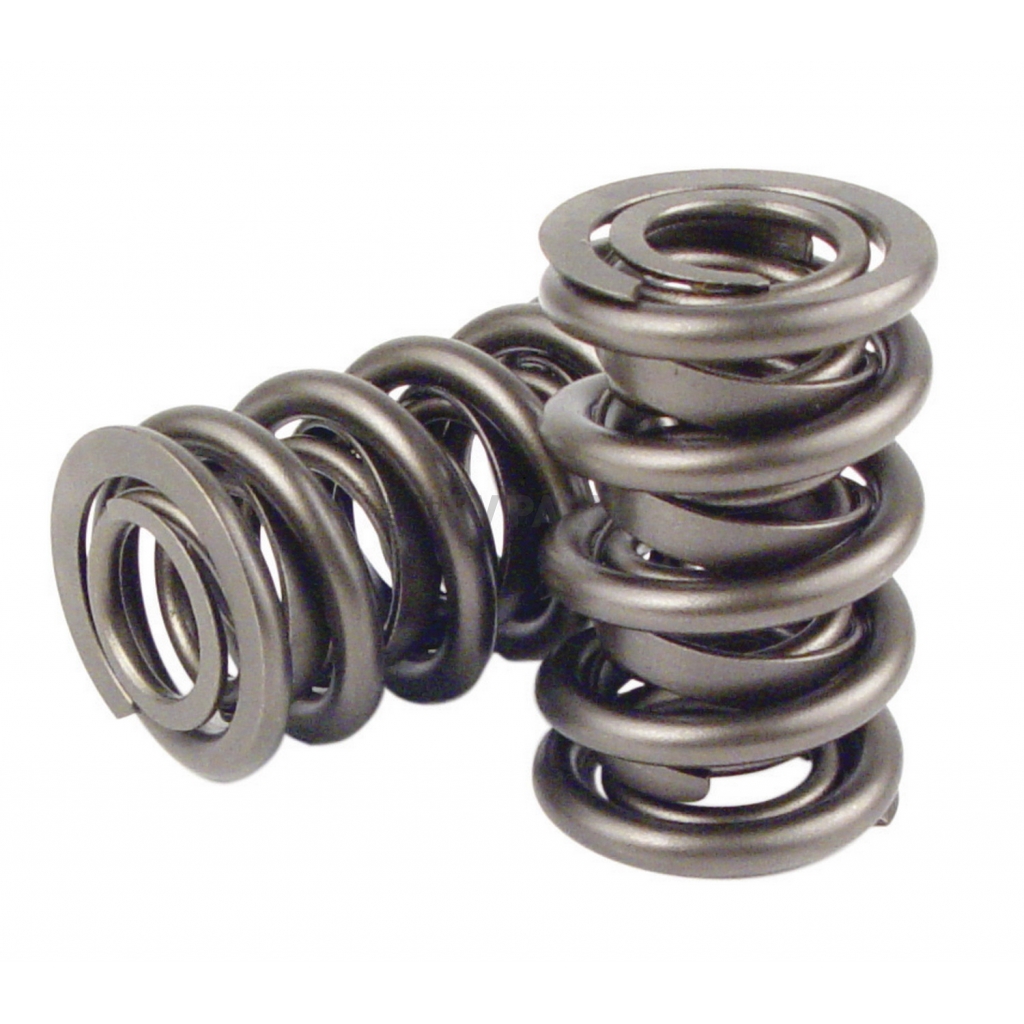

COMP Cams Valve Spring

Valve Spring; Elite Race; Universal; Steel; Dual Spring; With Dampener; 1.625 Inch Outside Diameter/ 0.769 Inch Inside Diameter; 561 Pounds Per Inch Spring Rate; 2.050 Inch Installed Height; Natural; Single

MPN: 260991

COMP Cams(R) takes all necessary measures to ensure our products are made from the best materials available. We even go a step further to see what is required to make the best even better. Fissures within the metal of standard spring wire, caused by molecular contaminants, are the weakest link in valve spring construction. These fissures appear to be immense under the scanning electron microscope but in fact, are just Microns wide. Diminishing the occurrence of these fissures in our valve spring steel is the COMP Cams goal when selecting materials. The metallurgists at COMP Cams(R) scrutinize every piece of metal utilized in the creation of Elite Race™ valve springs to make sure they are of unsurpassable quality.
Engine Compatibility: Universal
Type: Dual
Finish: Natural
Material: Steel
Includes Damper: Yes
Installed Height (IN): 2.05 Inch
Coil Bind Height (IN): 1.184 Inch
Inside Diameter Of Inner Spring (IN): 0.769 Inch
Inside Diameter Of Outer Spring (IN): 1.175 Inch
Outside Diameter Of Outer Spring (IN): 1-5/8 Inch
Spring Rate: 561 Pounds Per Inch
Quantity: Single

Features

  • Designed For Use With Roller Cam
  • Created With New Processing Techniques For Longevity And Reliability
  • Widely Used In Camping World Truck, Dirt Late Model And Sprint Car Racing
  • Limited 1 Year Warranty
Specifications of COMP Cams Valve Spring - 26099-1
Coil Bind Height (IN) 1.184 Inch
Engine Compatibility Universal
Finish Natural
Includes Damper Yes
Inside Diameter Of Inner Spring (IN) 0.769 Inch
Inside Diameter Of Outer Spring (IN) 1.175 Inch
Installed Height (IN) 2.05 Inch
Material Steel
Outside Diameter Of Outer Spring (IN) 1-5/8 Inch
Quantity Single
Spring Rate 561 Pounds Per Inch
Type Dual
