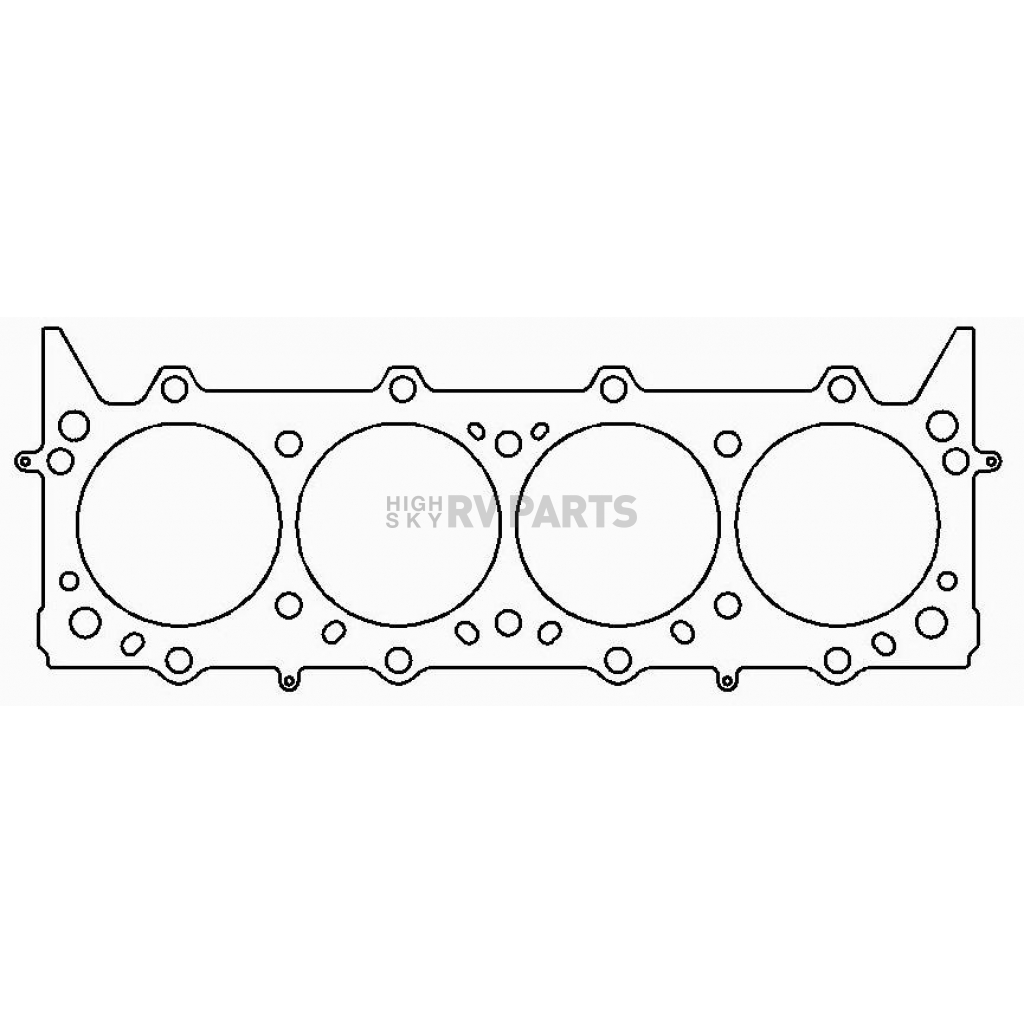

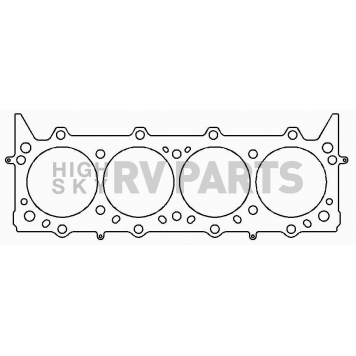

Cometic Cylinder Head Gasket AMC - C5409-051
Bore Diameter
4.38 Inch
Compression Thickness
0.051 Inch
Engine Compatibility
AMC V8 401 Cubic Inch
Material
Stainless Steel
Share this page
Cylinder Head Gasket; MLS; For Use With AMC INDY 401 Aftermarket Heads; 4.38 Inch Bore; 3 Layer Stainless Steel; 0.051 Inch Compressed Thickness; Single
MPN: C5409-051
Provides maximum sealing performance for today’s high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flouroelastomer rubber based material that is heat resistant to 250 Centigrade/ 482 Fahrenheit). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.Engine Compatibility: AMC V8 401 Cubic Inch
Material: Stainless Steel
Bore Diameter: 4.38 Inch
Compression Thickness: 0.051 Inch
Features
- Provides Maximum Sealing Performance For Today’s High Output Engines And Require No Sealants
- Ideal For Aluminum Heads To Aluminum Blocks And Aluminum Heads To Cast Iron Blocks Withstanding The Shearing Force Created By The Two Materials
- No Need To Re-Torque, The Embossing Design Of The MLS Gasket Promotes An Even Clamp Load Across The Sealing Surface Allowing For Measurable Reduced Bore Distortion
- Cometic MLS Gaskets Are Comprised Of Multiple Layers Of Stainless Steel Due To It’s Increased Strength, Ability To Rebound And Resistance To Corrosion
- The Outer Layers Of The Gaskets Are Embossed And Coated On Both Sides With Viton - A Flouroelastomer Rubber Based Material That Is Heat Resistant To 2500 Centigrade/ 482 Fahrenheit
- Viton Is Designed To Meet The Demands Of A Variety Of Harsh Sealing Environments, Load Conditions And Surface Finishes
- The Center Or Shim Layer Is A Uncoated Stainless Steel Layer Which Can Be Varied To Accommodate Multiple Thickness Requirements
- No Supplier Warranty
Specifications of Cometic Cylinder Head Gasket AMC - C5409-051 | |
Bore Diameter | 4.38 Inch |
Compression Thickness | 0.051 Inch |
Engine Compatibility | AMC V8 401 Cubic Inch |
Material | Stainless Steel |
1900-1900 American Motors 290-401
1900 American Motors 290-401
1971-1974 American Motors Ambassador
1971 American Motors Ambassador
1972 American Motors Ambassador
1973 American Motors Ambassador
1974 American Motors Ambassador
1972 American Motors Ambassador
1973 American Motors Ambassador
1974 American Motors Ambassador
1971-1974 American Motors Javelin
1971 American Motors Javelin
1972 American Motors Javelin
1973 American Motors Javelin
1974 American Motors Javelin
1972 American Motors Javelin
1973 American Motors Javelin
1974 American Motors Javelin
1971-1976 American Motors Matador
1971 American Motors Matador
1972 American Motors Matador
1973 American Motors Matador
1974 American Motors Matador
1975 American Motors Matador
1976 American Motors Matador
1972 American Motors Matador
1973 American Motors Matador
1974 American Motors Matador
1975 American Motors Matador
1976 American Motors Matador
